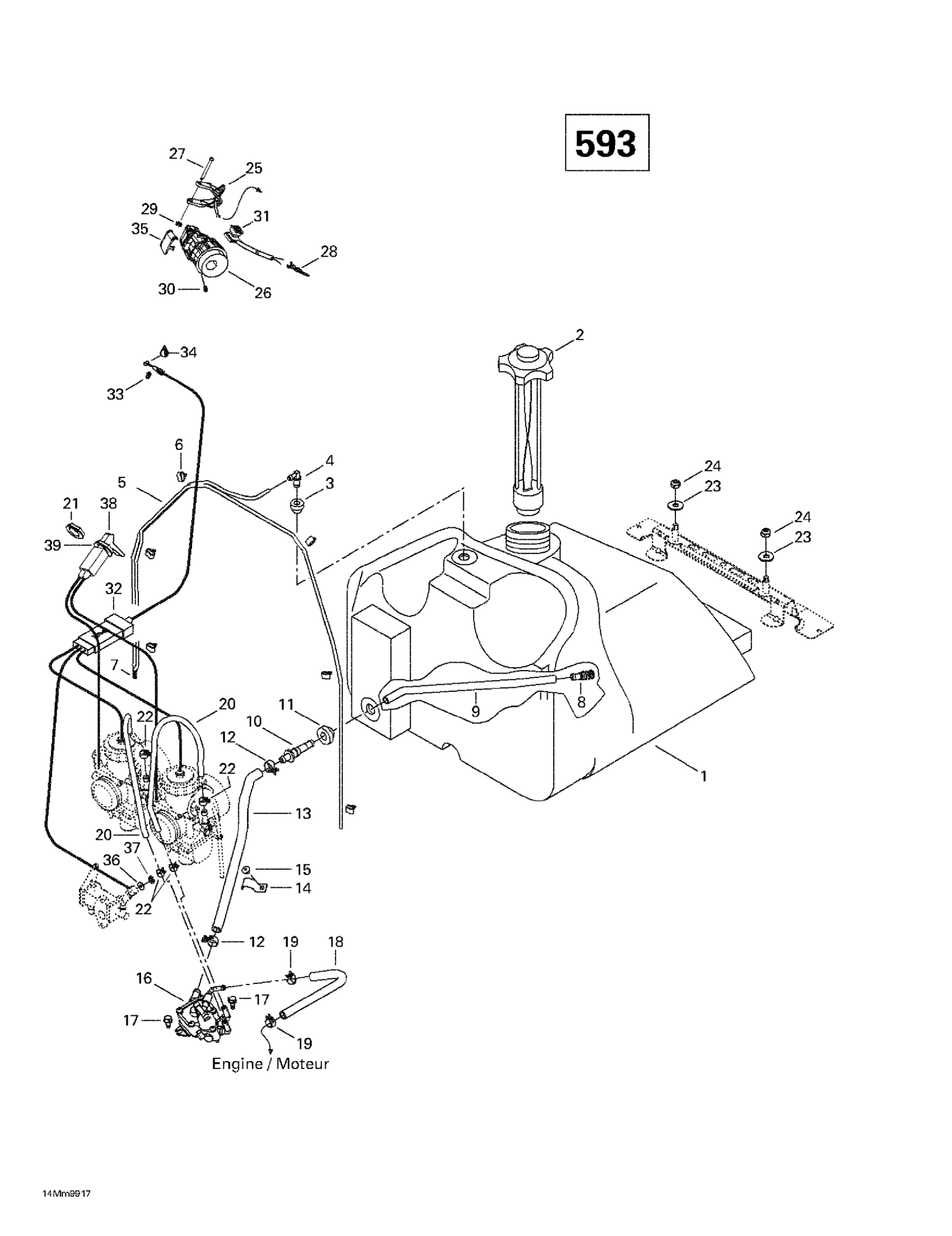

Ski-Doo MX Z 600, 1999 Fuel System (593) Diagram

#

Description
Price

1

Fuel Tank | MXZ 600.

513032964

Unavailable

2

Fuel Tank Cap | Sport / Sport GT

513033020

$35.35

3

Grommet

513032908

$8.74

4

Male Connector

414814100

$2.18

5

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

6

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

7

SPRING - Call your local BRP dealership

414818200

Unavailable

8

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

9

Hose

415005700

$5.49

10

Male Connector

414872700

Unavailable

11

Grommet | Europe

707800347

Unavailable

12

Spring Clamp | MXZ 600.

513032954

Unavailable

13

Formed Hose

513032903

$28.43

14

CLIP - Call your local BRP dealership

415018200

$2.89

15

Pop Rivet 3/16"

390406500

Unavailable

16

Fuel Pump | MX-Z 500.

403901800

Unavailable

17

Hex. Screw M6 x 12

732601120

Unavailable

18

Hose

219704549

Unavailable

19

Spring Clamp

414415200

$0.83

20

Tube

415117800

Unavailable

21

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

22

Spring Clamp

414420700

Unavailable

23

Flat Washer 8 mm

234082410

$1.11

24

Hex. Elastic Stop Nut M8

232581414

Unavailable

25

Handle Ass'y 40 mm

572101900

Unavailable

26

Throttle Handle Housing

572100900

Unavailable

27

Lever Pin

414438700

$11.14

28

Male Terminal

515175232

$1.49

29

Circlip | Model-RS

414439000

Unavailable

30

Socket Set Screw M8 X 10

414440800

$4.00

31

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

32

Throttle Cable

512058902

Unavailable

33

Circlip

414274500

Unavailable

34

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

35

Switch Cover

572100901

Unavailable

36

Flat Washer 8 mm, Nylon

234081100

$1.00

37

Circlip

414753500

$0.59

38

Choke Cable | Includes 38 - 39. MXZ 600.

512059093

Unavailable

39

Lock Washer, Interior Teeth

394103300

Unavailable
