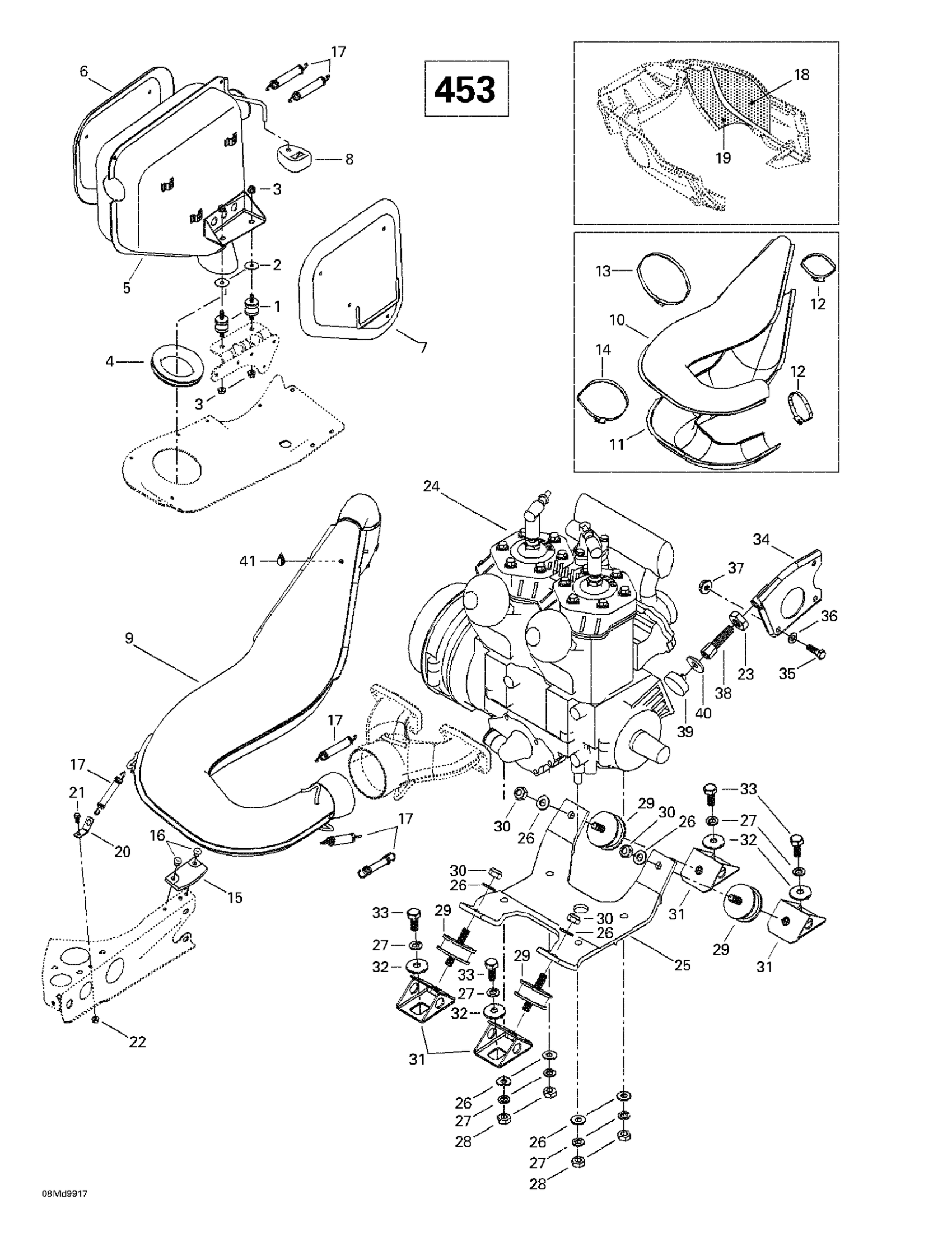

Ski-Doo MX Z 600, 1999 Engine Support And Muffler (453) Diagram
#
Description
Price
2
Insulated Washer
514052891
Unavailable
3
Hex. Flange Elastic Nut M8
233281414
Unavailable
4
EXHAUST GROMMET - Call your local BRP dealership
570039000
Unavailable
5
Muffler Ass'y | Includes 5 - 7.
514052925
Unavailable
6
RH Heat Shield
514051700
Unavailable
7
LH Heat Shield
514052960
Unavailable
9
Tuned Pipe Ass'y | Includes 10 - 15.
514052847
Unavailable
10
Upper Envelope
514052938
Unavailable
11
Lower Enveloppe
514052985
Unavailable
12
Norma Clamp
514052860
Unavailable
15
Rubber Pad
570044100
Unavailable
16
Pop Rivet 3/16"
390406500
Unavailable
18
Reflective Sheet
514052718
Unavailable
19
Reflective Sheet
514052719
Unavailable
21
Hex. Screw M5 X 12
207151244
Unavailable
22
Hex. Flange Elastic Nut M5
233251414
Unavailable
23
Nut Hexagonal RH.
232026414
Unavailable
24
<<453>> Engine | MXZ X 440 LC.
400409400
Unavailable
25
Engine Support
512059064
Unavailable
26
Flat Washer 10 mm
234001410
Unavailable
27
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
29
RUBBER MOUNT - Call your local BRP dealership
570128700
Unavailable
31
Engine Support
512050900
Unavailable
32
Lock Washer
512056700
Unavailable
33
Hex. Screw M10 X 25
207102544
Unavailable
34
Support Plate
512058500
Unavailable
36
Flat Washer 8 mm
234081410
Unavailable
37
Hex. Elastic Stop Nut M8
232581414
Unavailable
38
STOPPER SCREW - Call your local BRP dealership
512058800
Unavailable
39
Stopper
512059056
Unavailable
40
WASHER - Call your local BRP dealership
512059057
Unavailable
41
Sealant, Loctite, 80 ml | DS 650
293800090
Unavailable
