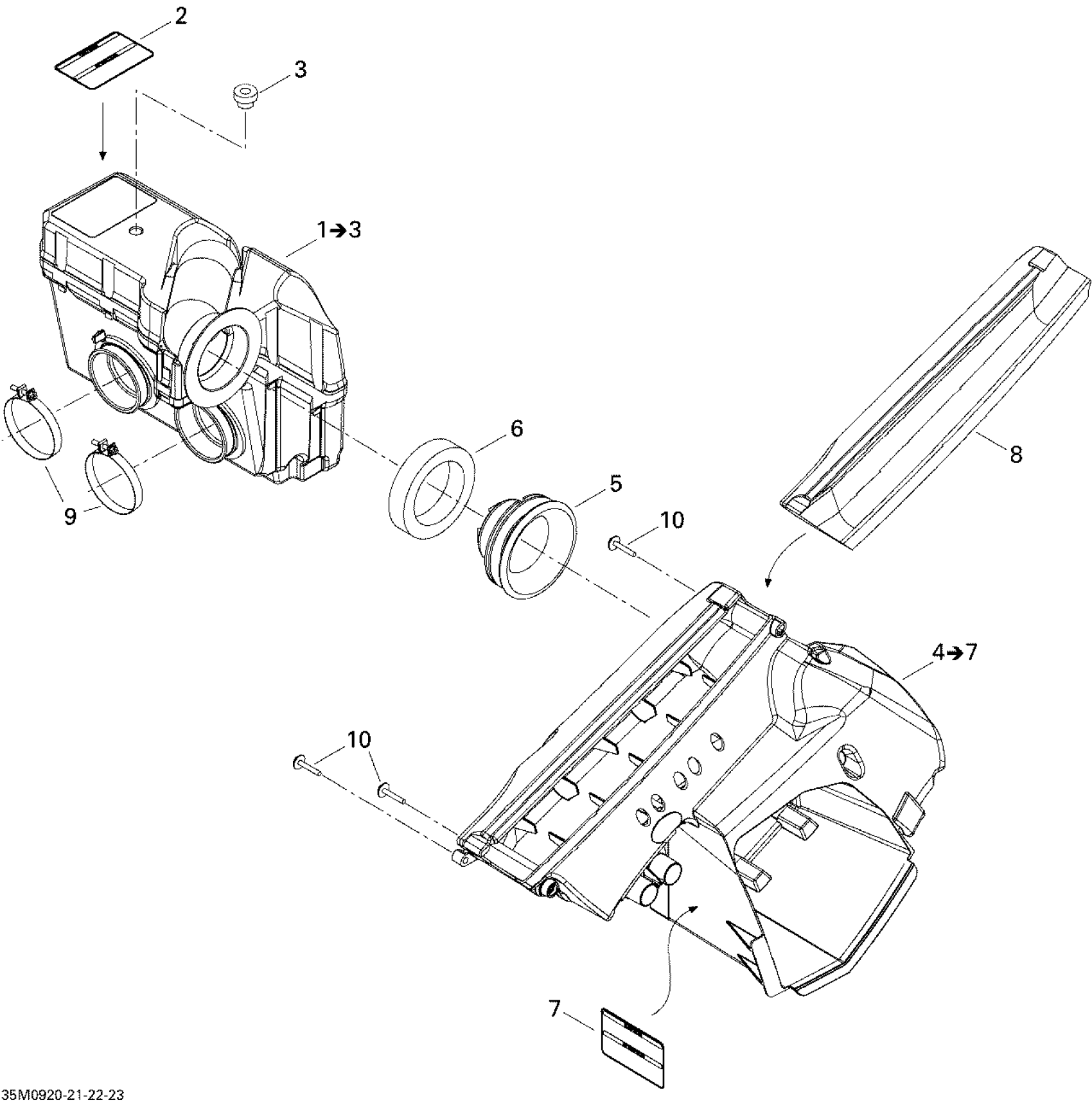

Ski-Doo MX Z 550X , 2009 Air Intake System Diagram

#

Description

Price

1

Primary Chamber Ass'y | Includes 1 to 3

508000383

$79.97

2

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

3

Grommet

513032908

$8.74

4

SECONDARY CHAMBER ASS'Y - Call your local BRP dealership | Includes 4 to 7

508000376

$55.35

5

GUIDE - Call your local BRP dealership

508000240

$12.28

6

OUTER FOAM - Call your local BRP dealership

508000199

Unavailable

7

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

8

Air Filter

508000394

$49.97

9

GEMI CLAMP - Call your local BRP dealership

508000344

$8.94

10

Plastite Screw Type K-40, M4 X 25

250000101

$2.87
