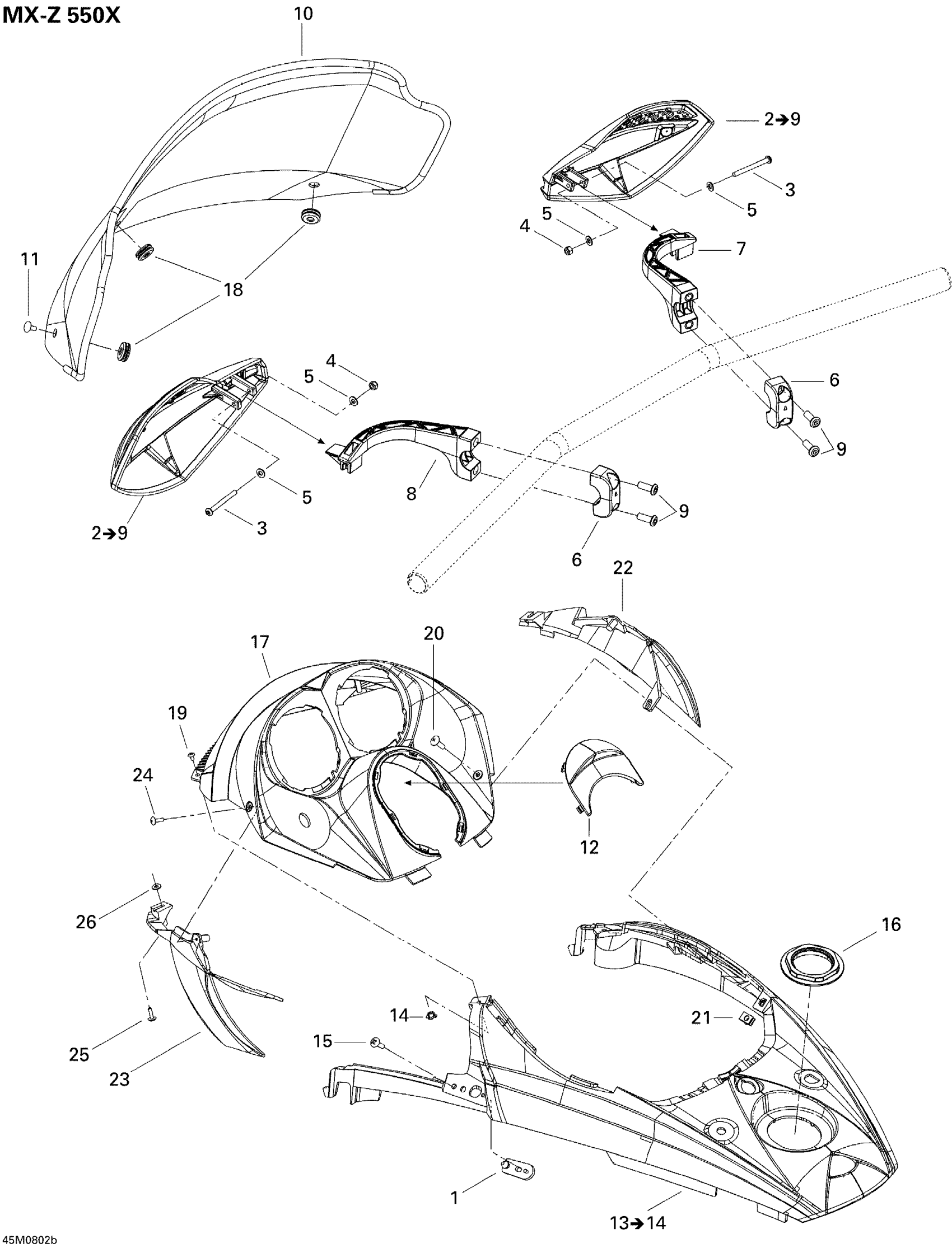

Ski-Doo MX Z 550X, 2008 Windshield And Console 550X Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

$26.12

2

Yellow Wind Deflector Kit

860200710

$98.99

3

Socket Head Screw M4 X 40 | X

205444086

$1.42

4

Elastic Stop Nut M4

232541484

$0.61

5

Flat Washer 4 mm

234041480

$0.61

6

U-Clamp | XT

517303264

$11.43

7

RH DEFLECTOR SUPPORT - Call your local BRP dealership

517303590

$11.17

8

LH DEFLECTOR SUPPORT - Call your local BRP dealership

517303591

$11.17

9

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000172

$1.14

10

LOW WINDSHIELD - Call your local BRP dealership

517303045

Unavailable

11

Tuflok Plastic Rivet

293150230

$1.21

12

CONSOLE CAP - Call your local BRP dealership

517302592

$9.22

13

CENTER CONSOLE, YELLOW - Call your local BRP dealership

517303353

$113.82

14

T-NUT, M4 - Call your local BRP dealership

250100030

$6.31

15

Torx Screw M6 X 20

250000722

$1.34

16

CONSOLE NUT - Call your local BRP dealership

517302575

$7.66

17

INDICATOR SUPPORT - Call your local BRP dealership

517303539

Unavailable

18

Grommet

517302841

$2.22

19

Torx Screw M4 X 8

250000127

$1.09

20

Torx Screw M5 X 20

250000724

$1.39

21

Panel Nut M5 X 0.8

250000958

$3.48

22

RH Air Deflector

517302798

Unavailable

23

LH AIR DEFLECTOR - Call your local BRP dealership

517302799

$16.89

24

Torx-Truss Pt K40 X 16

250000759

$1.74

25

Screw M4 X 16

250000725

$2.87

26

Flat Washer 4 mm, Stainless

234042600

$0.92
