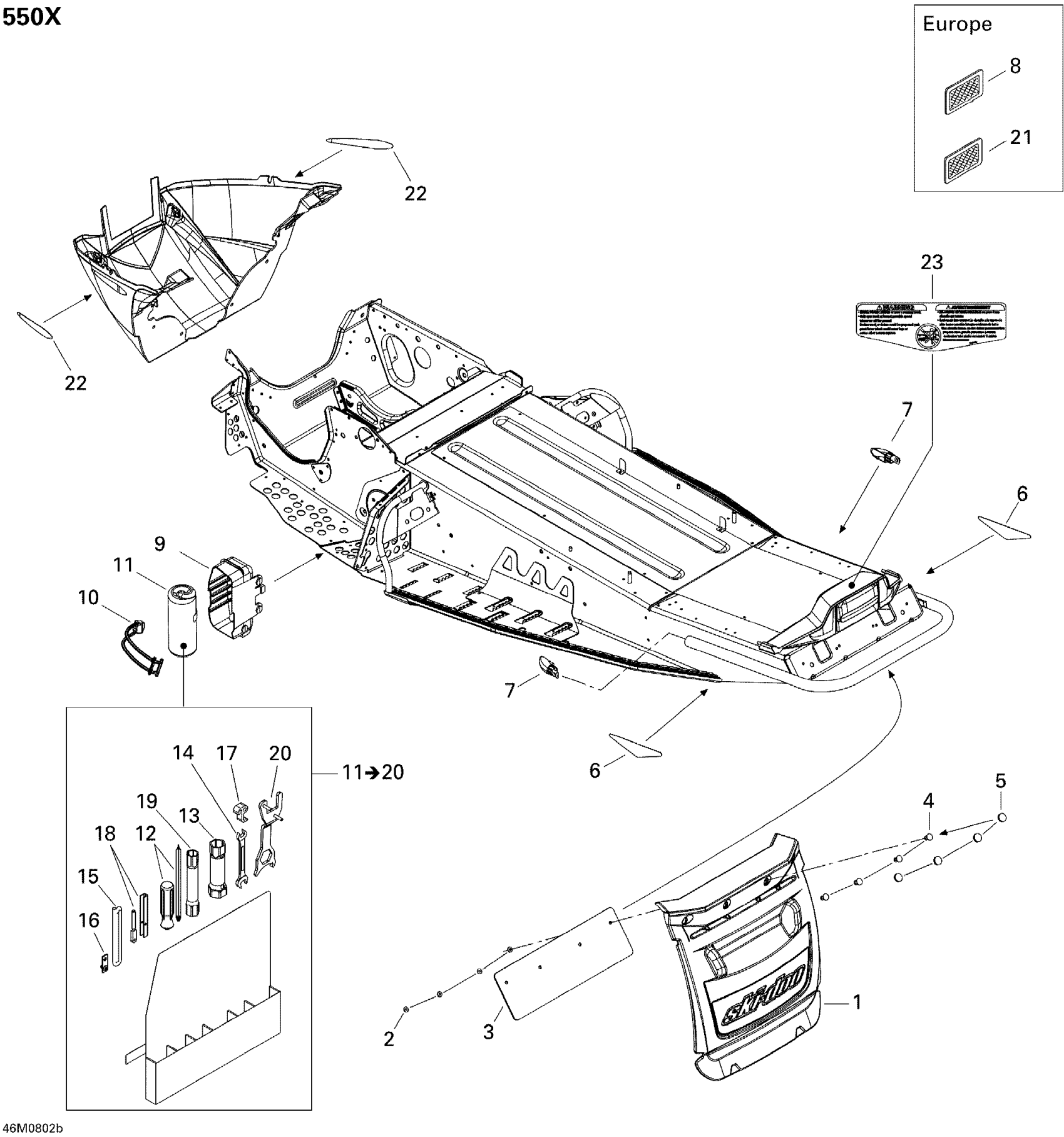

Ski-Doo MX Z 550X, 2008 Utilities 550X Diagram

#

Description
Price

1

SNOW GUARD - Call your local BRP dealership

520000596

$67.99

2

Flat Washer

517225900

$0.17

3

SNOW GUARD REINFORCEMENT - Call your local BRP dealership

520000423

$11.06

4

Pop Rivet 3/16”

293150087

$0.92

5

Black, Cap

277000203

$7.48

6

REAR REFLECTOR, RED - Call your local BRP dealership

520000237

$13.69

6

Rear Reflector, Amber | Europe

520000311

Unavailable

7

CAP - Call your local BRP dealership

520000272

Unavailable

8

Amber, Reflector

520000271

$19.20

9

TRUNK - Call your local BRP dealership

520000322

Unavailable

10

Latch

520000528

$6.60

11

Tool Kit | Includes 7 to 17

529000036

Unavailable

12

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

13

Socket Wrench 21/26 mm

529014800

Unavailable

14

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

15

Was 412500100 Rope-Starter

219704403

$10.15

16

ROPE ADAPTOR - Call your local BRP dealership | Includes 13 to 14

529024400

Unavailable

17

Starter Grip

529000060

$11.40

18

Spacing Tool

529035501

$4.79

19

Socket Wrench 16/18 mm

295000175

Unavailable

20

WRENCH - Call your local BRP dealership

520000721

Unavailable

21

White, Reflector

415037900

$19.20

22

FRONT REFLECTOR - Call your local BRP dealership

516001336

$14.58

23

WARNING LABEL, TRACK SECURITY - Call your local BRP dealership

516003034

Unavailable
