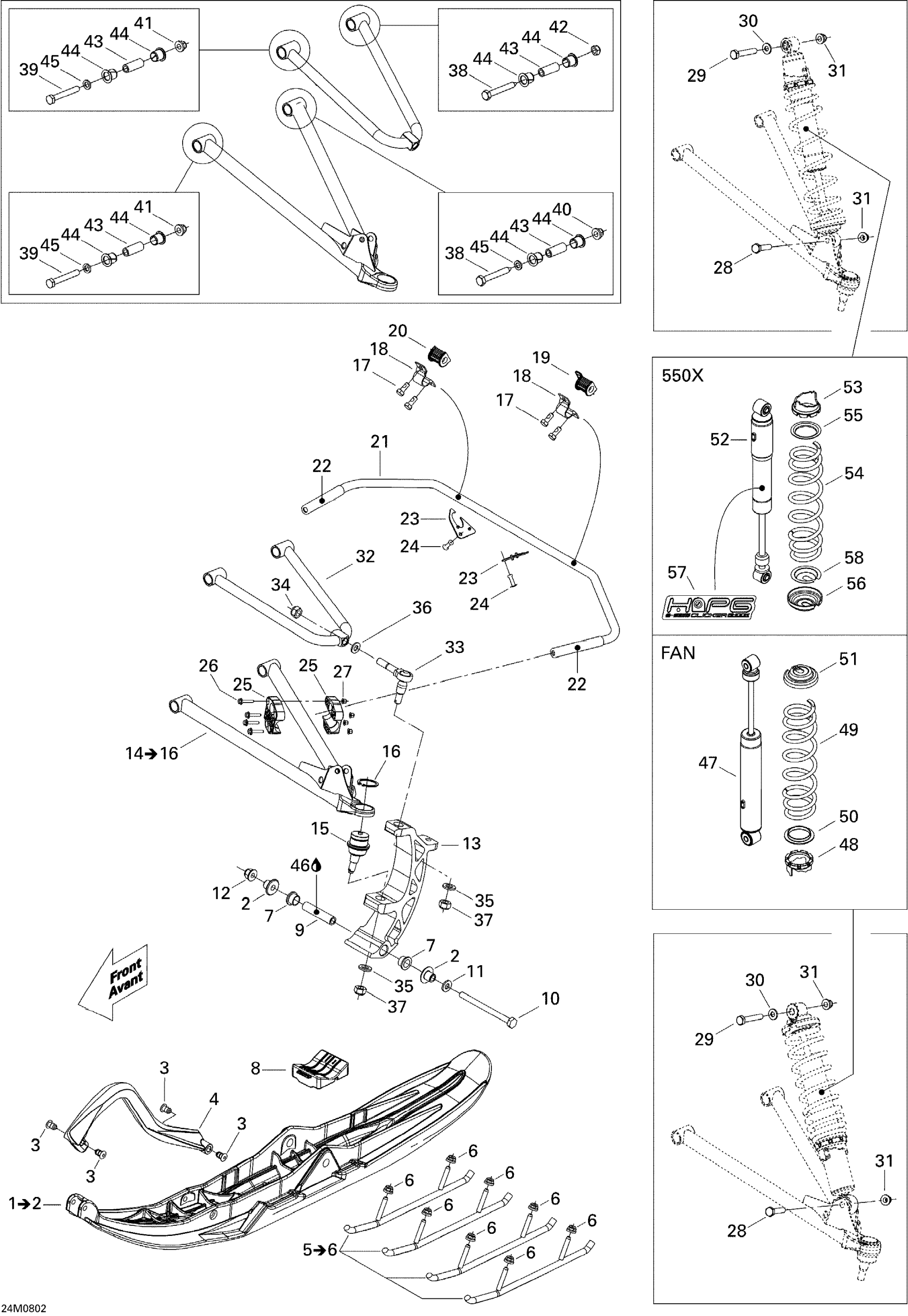

Ski-Doo MX Z 550X, 2008 Front Suspension And Ski X Diagram

#

Description
Price

1

Deep Black, RH Pilot 5.7 Ski

505072855

$160.74

1

Deep Black, LH Pilot 5.7 Ski

505072854

$175.35

2

Ski Bushing

505071781

$15.35

3

Retainer 17mm long

505071812

$4.43

4

Not Available As Spare Parts

XXX

Unavailable

4

Yellow Handle | Model-MX-Z TNT

505070917

$41.51

5

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$134.58

6

Hex. Flange Elastic Nut M8

233281414

$1.14

7

Leg Bushing

505072690

Unavailable

8

Ski Stopper

505071779

$16.12

9

Spacer

506133300

$19.97

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

11

Washer

732900049

$0.57

12

Flange Nut M10

732610084

$5.49

13

SKI LEG - Call your local BRP dealership

505071232

$162.28

14

RH LOWER ARM ASS'Y - Call your local BRP dealership

860512500

$194.58

14

LH LOWER ARM ASS'Y - Call your local BRP dealership

860512400

$194.58

15

Ball Joint

505073636

$49.97

16

Circlip

293370035

$2.55

17

Hex. Screw With Nylon

250000118

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

$5.45

19

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

20

RH BUSHING - Call your local BRP dealership

505070912

$7.37

21

STABILISATOR - Call your local BRP dealership

505070948

$114.58

22

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

23

PLUG - Call your local BRP dealership

505071253

Unavailable

24

Pop Rivet 3/16"

293150103

$0.54

25

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

25

LH SLIDER HALF - Call your local BRP dealership

505071269

$9.08

26

Hex. Flange Screw M5 X 25

207652544

$0.42

27

Hex. Flange Elastic Nut M5

233251414

$1.66

28

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

29

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

30

Washer

503189564

$0.72

31

Hex. Flange Elastic Nut M10

233201414

$1.26

32

UPPER ARM - Call your local BRP dealership

505071756

Unavailable

33

Upper Ball Joint

505072257

$16.89

34

Hex. Elastic Hex. Nut M12

250100089

$0.39

35

Flat Washer 12 mm

234021410

$0.68

36

Washer

503189276

$3.20

37

Hex. Elastic Hex. Nut M12

250100089

$0.39

38

Hex. Screw M10 X 75

250001063

$9.74

39

Hex. Screw M10 X 75

250001063

$9.74

40

Hex. Flange Elastic Nut M10

250100165

$0.70

41

Hex. Flange Elastic Nut M10

250100165

$0.70

42

Hex. Flange Elastic Nut M10

250100165

$0.70

42

Elastic Flange Nut M10

232501416

$1.25

43

Bushing

505070567

$19.97

44

Arm Bushing

505070566

$3.14

45

Washer

503189564

$0.72

46

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable

48

Not Available As Spare Parts

XXX

Unavailable

49

Not Available As Spare Parts

XXX

Unavailable

50

Not Available As Spare Parts

XXX

Unavailable

51

Not Available As Spare Parts

XXX

Unavailable

52

FRONT SHOCK - Call your local BRP dealership | Except Europe

505071993

Unavailable

52

FRONT SHOCK - Call your local BRP dealership | Europe

505072189

$340.74

53

Adjustment Cam

505073625

$12.18

54

SPRING - Call your local BRP dealership | Europe

505071833

Unavailable

55

Spring Guide

503191872

$2.18

56

Spring Stopper

706200881

$10.30

57

HPG DECAL - Call your local BRP dealership

505072222

$6.95

58

Cap

706200785

$4.42
