Partiron

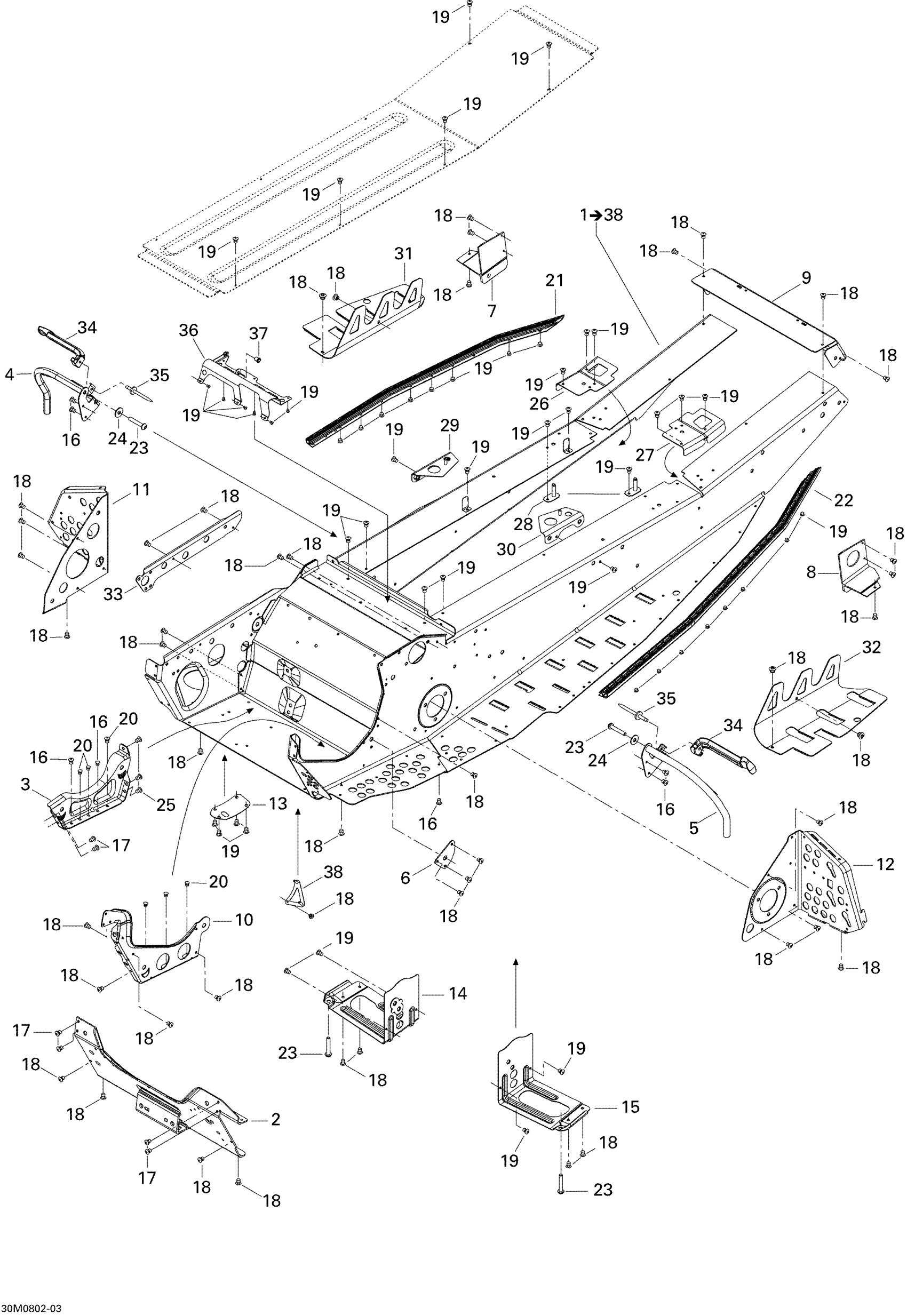

Ski-Doo MX Z 550F, 2008 Frame Diagram

#

Description
Price

1

FRAME - Call your local BRP dealership | Inclus 1 à 38

415129305

Unavailable

2

FRONT PAN WELD - Call your local BRP dealership

518324114

$45.35

3

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

$12.65

4

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

$36.12

5

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

6

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

$8.77

7

RH SLIDE BRACKET - Call your local BRP dealership

518324488

$23.74

8

LH SLIDE BRACKET - Call your local BRP dealership

518324489

$23.74

9

REAR CAP - Call your local BRP dealership

518325169

$26.91

10

INNER REINFORCEMENT, BLACK - Call your local BRP dealership

518323241

$15.02

11

RH Footrest Reinforcement

518323805

Unavailable

12

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

$17.66

13

PLATE - Call your local BRP dealership

518324169

$5.57

14

RH Reinforcement, Black

518324634

Unavailable

15

LH REINFORCEMENT, BLACK - Call your local BRP dealership

518324635

Unavailable

16

Avex Rivet

390909200

$0.29

17

Avex Rivet

390909100

$0.29

18

Pop Rivet 3/16"

390402200

$0.26

19

Pop Rivet 3/16"

390402400

$0.25

20

HENROB RIVET - Call your local BRP dealership

390910300

$0.54

21

RH Roller

518324953

Unavailable

22

LH ROLLER - Call your local BRP dealership

518324954

$75.35

23

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

$1.94

24

Flat Washer 8 mm

234082410

$1.11

25

Hemlock Rivet, 6.5 mm

293150096

$3.17

26

RH FRAME REINFORCEMENT - Call your local BRP dealership

518324431

$7.89

27

LH FRAME REINFORCEMENT - Call your local BRP dealership

518324432

$7.97

28

Tank Bracket

518322791

Unavailable

29

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

$11.97

30

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

$11.97

31

RH TUNNEL LINER - Call your local BRP dealership

518325268

$33.05

32

LH Tunnel Liner

518325269

$45.35

33

RH TUNNEL STIFFENER - Call your local BRP dealership

518323328

$8.86

34

Panel Latch

517302448

$14.75

35

Pop Rivet 3/16”

390410100

$0.54

36

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

$43.05

37

Threaded Insert M6 X 1.0

250100242

$2.54

38

TRUNK BRACKET, BLACK - Call your local BRP dealership

518324312

$8.68
