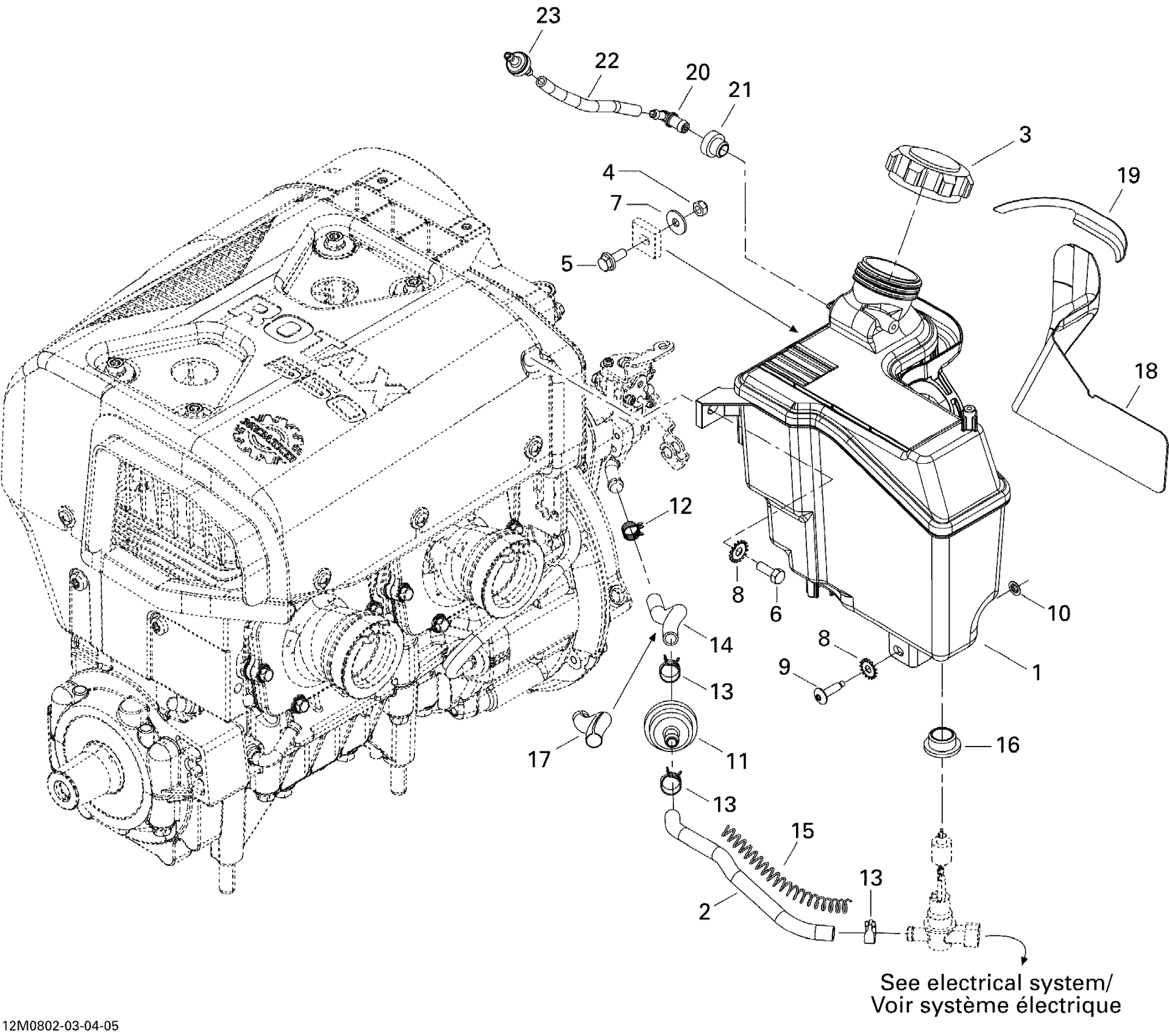

Ski-Doo MX Z 550F, 2008 Oil System Diagram

#

Description
Price

1

INJECTION OIL TANK - Call your local BRP dealership

519000073

Unavailable

2

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

3

CAP - Call your local BRP dealership

519000033

Unavailable

4

Elastic Stop Nut M6

232561414

$1.78

5

Hex. Flange Screw M6 X 16

207661644

$0.70

6

Hex. Screw M6 X 18

207161844

Unavailable

7

Flat Washer

250200082

$0.40

8

Lock Washer Serrated M6

250200041

$1.06

9

Torx Screw M6 X 25 | XT Models

250000728

$4.15

10

Push Nut

732610072

$1.97

11

Filter

414536500

$3.73

12

Spring Clamp

414420700

$0.66

13

Spring Clamp

414415200

$0.81

14

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

15

SPRING - Call your local BRP dealership

519000125

Unavailable

16

Insulating Ring

570023000

$5.30

17

Tubing 10 MM 1000MM Long

219704407

$2.52

18

REFLECTIVE SHEET - Call your local BRP dealership

519000054

Unavailable

19

REFLECTIVE SHEET - Call your local BRP dealership

519000072

Unavailable

20

Male Connector

414580700

$3.88

21

Grommet

513032908

$8.48

22

Polyurethane Hose 10000Mm Long

219704410

$52.96

23

Check Valve

275500398

$9.84
