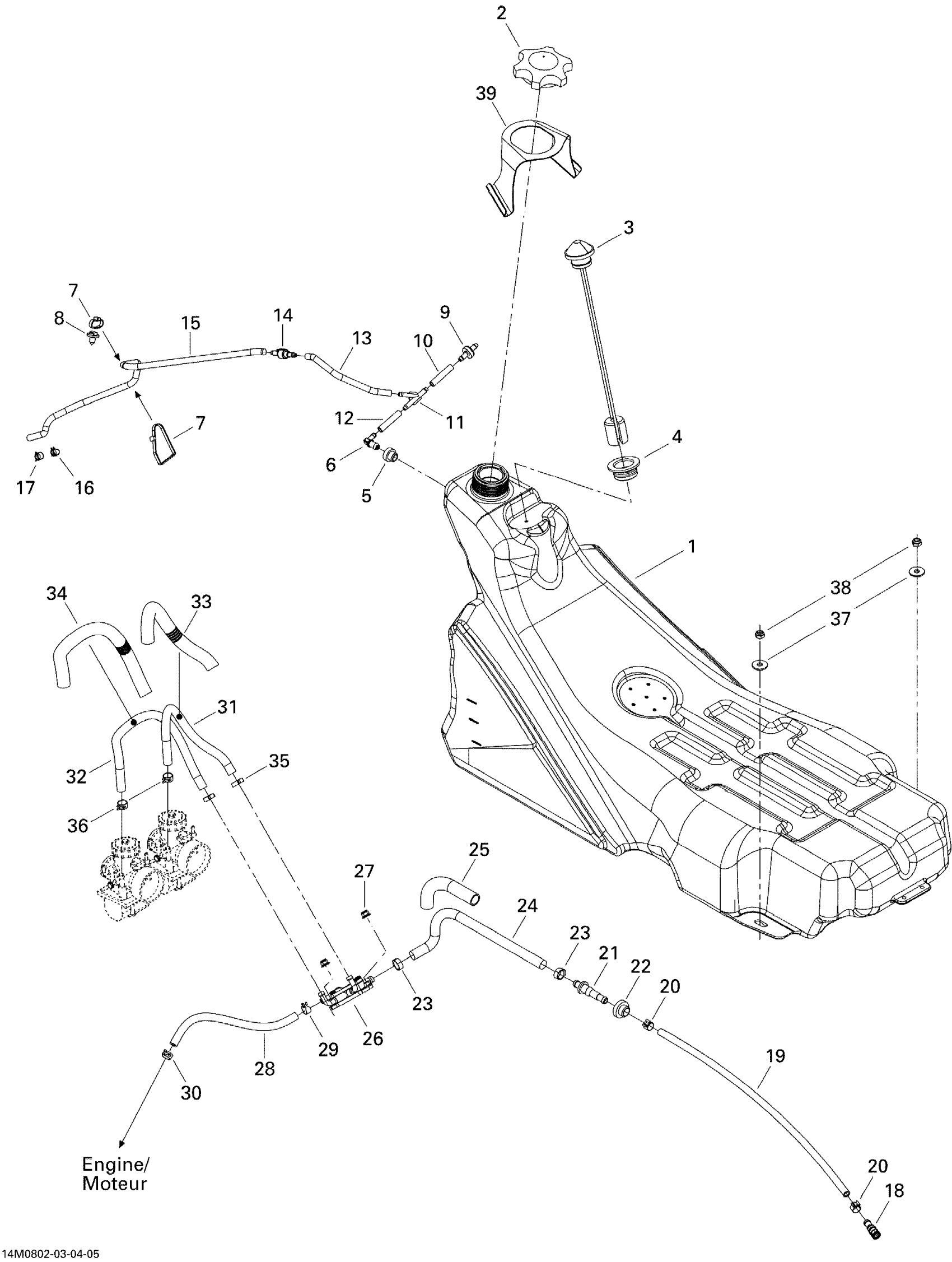

Ski-Doo MX Z 550F, 2008 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

513033171

$199.20

2

Fuel Tank Cap

513033025

$19.47

3

FUEL GAUGE - Call your local BRP dealership

513033358

Unavailable

4

Grommet

293720058

$11.00

5

Grommet

513032908

$8.74

6

Male Connector

414580700

$3.38

7

Tie-Rap 180 mm

414115200

$0.09

8

Mount Dart

293730040

$0.86

9

Check Valve

275500398

$8.57

10

Polyurethane Hose 10000Mm Long

219704410

$46.12

11

Y-Fitting

293710059

$8.19

12

Polyurethane Hose 10000Mm Long

219704410

$46.12

13

Polyurethane Hose 10000Mm Long

219704410

$46.12

14

Check Valve

275500505

$25.32

15

Polyurethane Hose 10000Mm Long

219704410

$46.12

16

Spring Clamp

414554800

$0.83

17

Spring Clamp

414554800

$0.83

18

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

19

Hose

513033070

$12.62

20

Norma Spring Clamp

513033010

$8.68

21

Male Connector

414872700

$1.86

22

Grommet | Europe

707800347

$7.58

23

Crimp Clamp

293650053

$2.42

24

Formed Hose

513033374

$29.20

25

Tubing 16 Mm 1000Mm Long

219704408

$6.23

26

Fuel Pump

403901813

$84.99

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

28

FORMED HOSE - Call your local BRP dealership

513033111

Unavailable

29

Spring Clamp

414415200

$0.83

30

Universal Spring Clamp

513033029

$5.11

31

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

32

HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership

219704422

Unavailable

33

Tubing 16 Mm 1000Mm Long

219704408

$6.23

34

Tubing 16 Mm 1000Mm Long

219704408

$6.23

35

Crimp Clamp, 15.3-706R

293650047

$2.64

36

Universal Spring Clamp

513033029

$5.11

37

Flat Washer 8 mm

234082410

$1.11

38

Hex. Elastic Stop Nut M8

232581414

$0.47

39

SUPPORT - Call your local BRP dealership

513033066

$11.98
