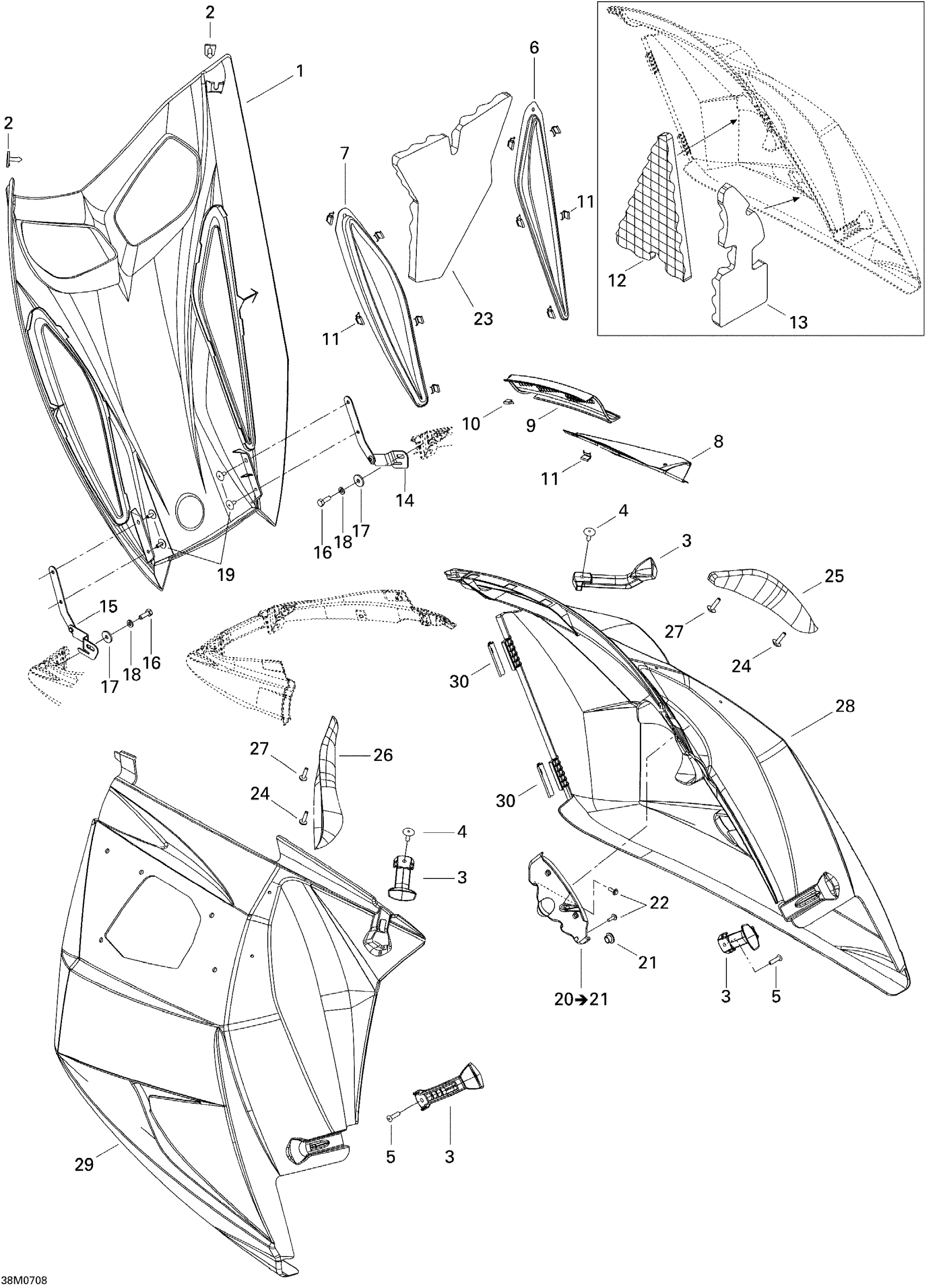

Ski-Doo MX Z 550F, 2007 Hood Diagram

#

Description
Price

1

Hood, Black

517302788

Unavailable

2

ROD_RETAINING - Call your local BRP dealership

517302543

Unavailable

3

Panel Latch

517302448

Unavailable

4

Pop Rivet 3/16”

293150087

Unavailable

5

Pop Rivet 3/16”

390410100

Unavailable

6

RH HOOD GRILL - Call your local BRP dealership

517302936

Unavailable

7

LH HOOD GRILL - Call your local BRP dealership

517302937

Unavailable

8

RH PANEL GRILL - Call your local BRP dealership

517302938

Unavailable

9

AIR INTAKE GRILL - Call your local BRP dealership

509000333

Unavailable

10

Clip | Europe Models

517306751

Unavailable

11

CLIP - Call your local BRP dealership

517302789

Unavailable

12

RH PANEL FRONT FOAM - Call your local BRP dealership

517303082

Unavailable

13

RH PANEL REAR FOAM - Call your local BRP dealership

517303492

Unavailable

14

RH HINGE ASS'Y - Call your local BRP dealership

517303668

Unavailable

15

LH HINGE ASS'Y - Call your local BRP dealership

517303669

Unavailable

16

Hex. Screw M6 X 18

207161844

Unavailable

17

Flat Washer

224061121

$0.44

18

Lock Washer M6, Black

234161471

$0.52

19

Pop Rivet 3/16"

390406500

Unavailable

20

RH CONSOLE - Call your local BRP dealership | Includes 25 to 26

517303482

Unavailable

21

Black, Cap

275500241

Unavailable

22

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

23

Hood Foam

517303466

Unavailable

24

Phillips Screw K40 X 16

250000723

Unavailable

25

RH AIR DEFLECTOR - Call your local BRP dealership

517302800

Unavailable

26

LH AIR DEFLECTOR - Call your local BRP dealership

517302801

Unavailable

27

Plastite Screw Type K-40, M4 X 25

250000101

Unavailable

28

RH PANEL, BLACK - Call your local BRP dealership

517303254

Unavailable

29

LH PANEL, BLACK - Call your local BRP dealership

517303255

Unavailable

30

Hinge Lock

517302823

Unavailable
