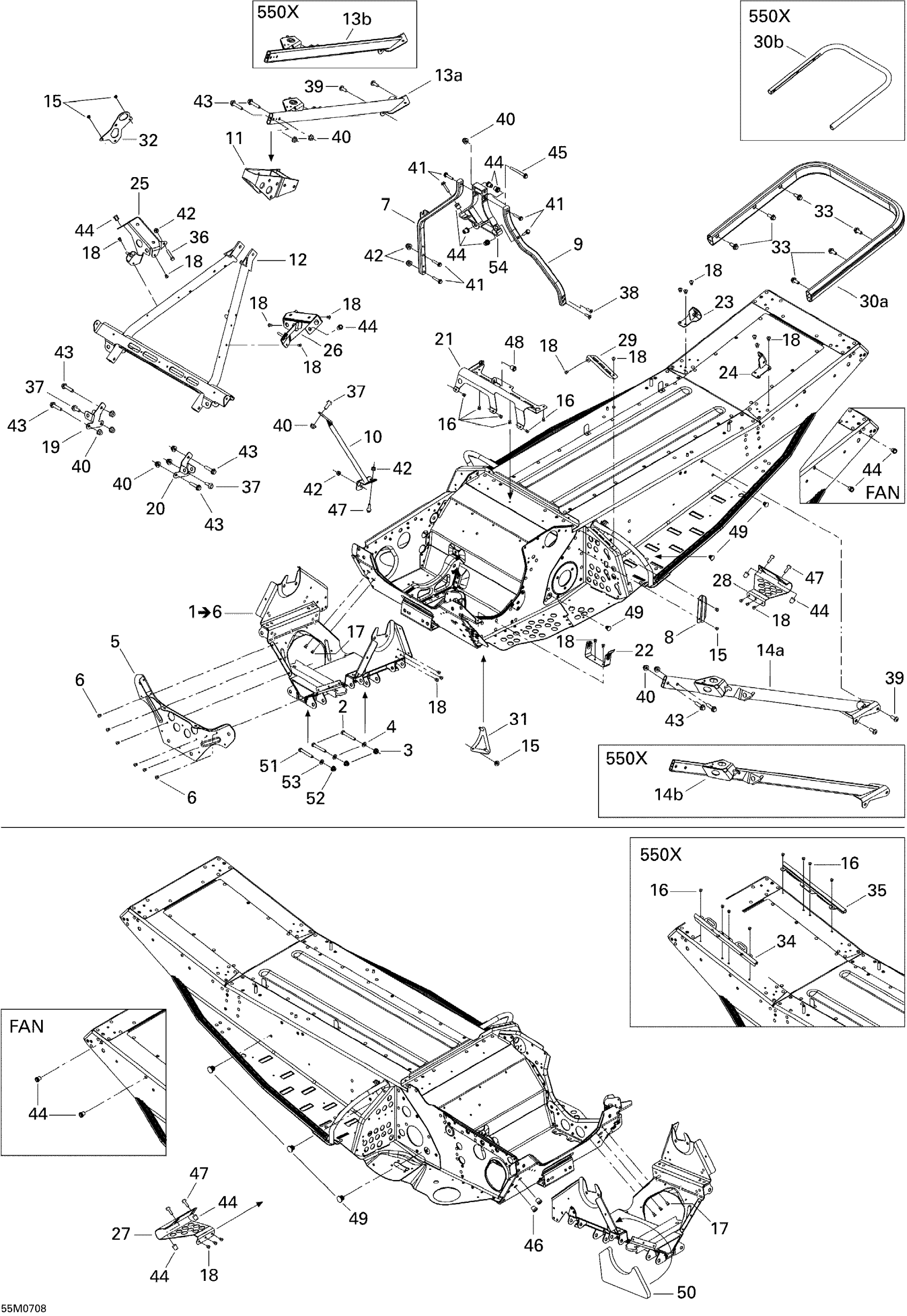

Ski-Doo MX Z 550F, 2007 Frame and Components FAN Diagram

#

Description
Price

1

Cross Member | Includes 1 to 6

518325423

$475.34

2

Hex. Screw M8 X 55

207085544

$1.57

3

Hex. Flange Elastic Nut M8

233281414

$1.31

4

Flat Washer 8 mm

234081410

$0.79

5

FRONT PLATE - Call your local BRP dealership

518325422

Unavailable

6

Avex Rivet

390909100

$0.28

7

RH HANDLE SUPPORT - Call your local BRP dealership

518324397

Unavailable

8

CABLE PROTECTOR - Call your local BRP dealership

518317504

Unavailable

9

LH HANDLE SUPPORT - Call your local BRP dealership

518324376

Unavailable

10

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

11

BRACKET BLOCK - Call your local BRP dealership

518323854

Unavailable

12

UPPER CROSS MEMBER - Call your local BRP dealership

518324739

Unavailable

13a

RH Member

518323352

Unavailable

13b

Not Available As Spare Parts

XXX

Unavailable

14a

LH MEMBER - Call your local BRP dealership

518323354

Unavailable

14b

Not Available As Spare Parts

XXX

Unavailable

15

Pop Rivet 3/16"

390402200

$0.30

16

Pop Rivet 3/16"

390402400

$0.28

17

Avex Rivet

390909100

$0.28

18

Avex Rivet

390909200

$0.28

19

RH SHOCK BRACKET - Call your local BRP dealership

518322461

Unavailable

20

LH SHOCK BRACKET - Call your local BRP dealership

518322462

Unavailable

21

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

22

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

Unavailable

23

RH BRACKET, BLACK - Call your local BRP dealership

518323769

Unavailable

24

LH BRACKET, BLACK - Call your local BRP dealership

518323770

Unavailable

25

RH CONSOLE SUPPORT - Call your local BRP dealership

518324513

Unavailable

26

LH Console Support

518323536

Unavailable

27

RH TOE HOLD - Call your local BRP dealership

518324391

Unavailable

28

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

29

PLATE, BLACK - Call your local BRP dealership

518323105

Unavailable

30a

REAR BUMPER - Call your local BRP dealership

518325216

Unavailable

30b

Not Available As Spare Parts

XXX

Unavailable

31

TRUNK BRACKET, BLACK - Call your local BRP dealership

518324312

Unavailable

32

PLATE - Call your local BRP dealership

518324315

Unavailable

33

Hex. Screw M8 X 20

236282084

$1.43

34

Not Available As Spare Parts

XXX

Unavailable

35

Not Available As Spare Parts

XXX

Unavailable

36

Hex. Flange Screw M6 X 35

207063544

$1.31

37

Hex. Flange Screw M8 X 20

207682044

$1.06

38

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.88

39

Pan Head Torx Screw M8 X 12

250000887

$1.79

40

Hex. Flange Elastic Nut M8

233281414

$1.31

41

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.12

42

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

43

Hex. Flange Screw M8 X 35

207683544

$1.60

44

Insert

293450275

$11.36

45

Hex. Flange Screw M8 X 70

207687044

$7.01

46

Insert

293450166

$3.88

47

Hex. Flange Screw M6 X 20

207662044

$1.91

48

Threaded Insert M6 X 1.0

250100242

Unavailable

49

Panel Fastener

518321954

$5.85

50

RH FRONT FOAM - Call your local BRP dealership

518323453

Unavailable

51

Hex. Screw M8 X 55

207085544

$1.57

52

Hex. Flange Elastic Nut M8

233281414

$1.31

53

Flat Washer 8 mm

234081410

$0.79

54

CENTER STIFFENER - Call your local BRP dealership

518324377

Unavailable
