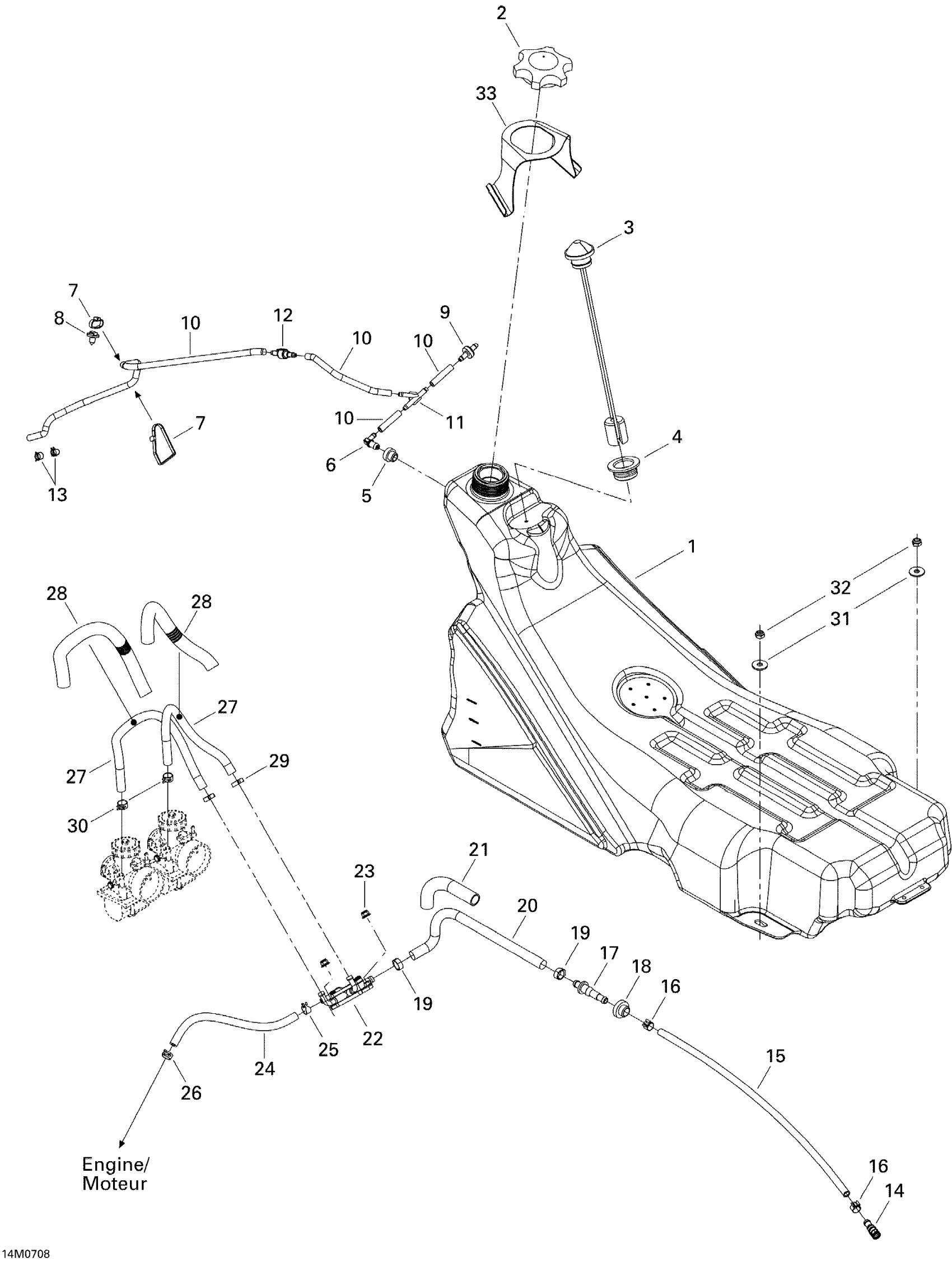

Ski-Doo MX Z 550F, 2007 Fuel System Diagram
#
Description
Price
3
FUEL GAUGE - Call your local BRP dealership
513033358
Unavailable
6
Male Connector
414580700
Unavailable
9
Check Valve
275500398
Unavailable
10
Polyurethane Hose 10000Mm Long
219704410
Unavailable
11
Y-Fitting
293710059
Unavailable
12
Check Valve
275500505
Unavailable
16
Norma Spring Clamp
513033010
Unavailable
17
Male Connector
414872700
Unavailable
18
Grommet | Europe
707800347
Unavailable
19
Crimp Clamp
293650053
Unavailable
21
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
22
Fuel Pump
403901813
Unavailable
23
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
24
FORMED HOSE - Call your local BRP dealership
513033111
Unavailable
26
Universal Spring Clamp
513033029
Unavailable
27
HOSE 5/16 I.D, 1000MM LONG - Call your local BRP dealership
219704422
Unavailable
28
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
29
Crimp Clamp, 15.3-706R
293650047
Unavailable
30
Universal Spring Clamp
513033029
Unavailable
32
Hex. Elastic Stop Nut M8
232581414
Unavailable
