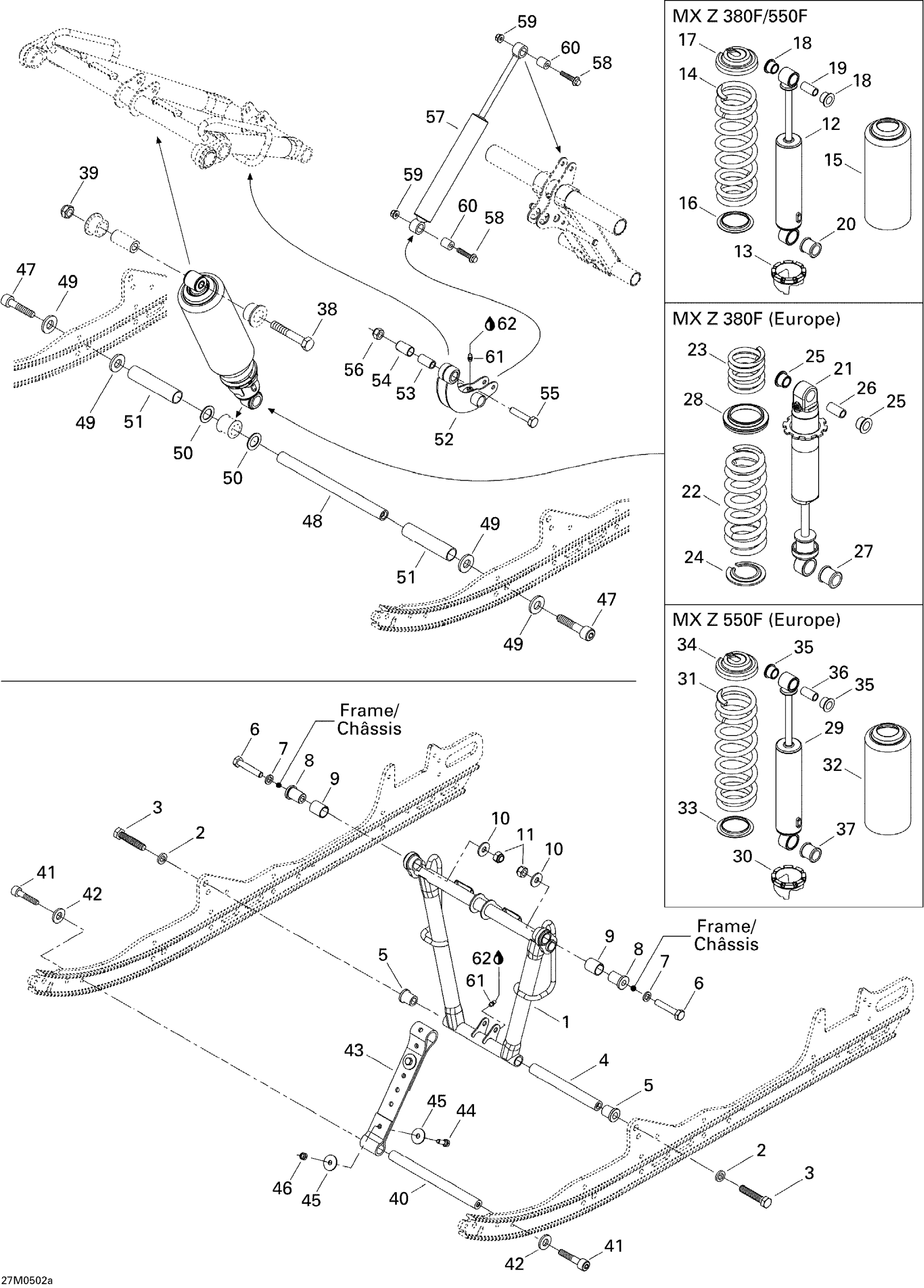

Ski-Doo MX Z 550F, 2005 Front Arm MX Z 550F Diagram

#

Description
Price

1

Front Arm

503191071

Unavailable

2

Washer

503189276

Unavailable

3

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

4

SHAFT - Call your local BRP dealership

503189313

Unavailable

5

CUSHION - Call your local BRP dealership

503189323

Unavailable

6

Hex. Screw M10 X 55

207005544

$1.85

7

Washer

732900049

Unavailable

8

EXTENSION - Call your local BRP dealership

503190373

Unavailable

9

EXTENDED BUSHING - Call your local BRP dealership

503190474

Unavailable

10

Flat Washer M10 | 4X4

250200014

$1.17

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Center Shock

503190317

Unavailable

13

Adjustment Cam

505073625

Unavailable

14

Black, Spring

503189686

$66.89

15

Protector

503193663

Unavailable

16

Spring Guide

503187500

Unavailable

17

Spring Stopper

706200881

$10.30

18

Urethane Bushing

503189117

Unavailable

19

Bushing | Includes 240d to 240d1

503189282

Unavailable

20

Bushing

503189271

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable

24

Not Available As Spare Parts

XXX

Unavailable

25

Not Available As Spare Parts

XXX

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

27

Not Available As Spare Parts

XXX

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Center Shock

503190317

Unavailable

30

Adjustment Cam

505073625

Unavailable

31

SPRING - Call your local BRP dealership | Europe

503189812

Unavailable

32

Protector

503193663

Unavailable

33

Spring Guide

503187500

Unavailable

34

Spring Stopper

706200881

$10.30

35

Urethane Bushing

503189117

Unavailable

36

Bushing | Includes 240d to 240d1

503189282

Unavailable

37

Bushing

503189271

Unavailable

38

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

39

Elastic Locking Nut M10 X 1.5

233601416

$1.68

40

AXLE - Call your local BRP dealership

503189562

Unavailable

41

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

42

Washer

503189564

Unavailable

43

STOPPER STRAP - Call your local BRP dealership

503190782

Unavailable

44

Hex. Flange Screw M8 X 25

207682544

$0.90

45

Flat Washer

224081301

$0.86

46

Hex. Flange Elastic Nut M8

233281414

Unavailable

47

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

48

CENTER SHOCK SHAFT - Call your local BRP dealership This part replaces 503191258.

503189272

Unavailable

49

Washer

503189276

Unavailable

50

Washer

503189273

Unavailable

51

SPACER - Call your local BRP dealership

503189274

Unavailable

52

Rocker

503189845

Unavailable

53

Rocker Axle

503189388

Unavailable

54

CUSHION - Call your local BRP dealership

503189626

Unavailable

55

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

56

Elastic Locking Nut M10 X 1.5

233601416

$1.68

57

Rear Shock

503191582

$157.66

57

Rear Shock, Hpg | MX Z 550F (Europe)

503190740

Unavailable

58

Hex. Flange Screw M8 X 40

207684044

Unavailable

59

Hex. Flange Elastic Nut M8

233281414

Unavailable

60

Bushing

414936000

Unavailable

61

Grease Fitting

408200700

Unavailable

62

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
