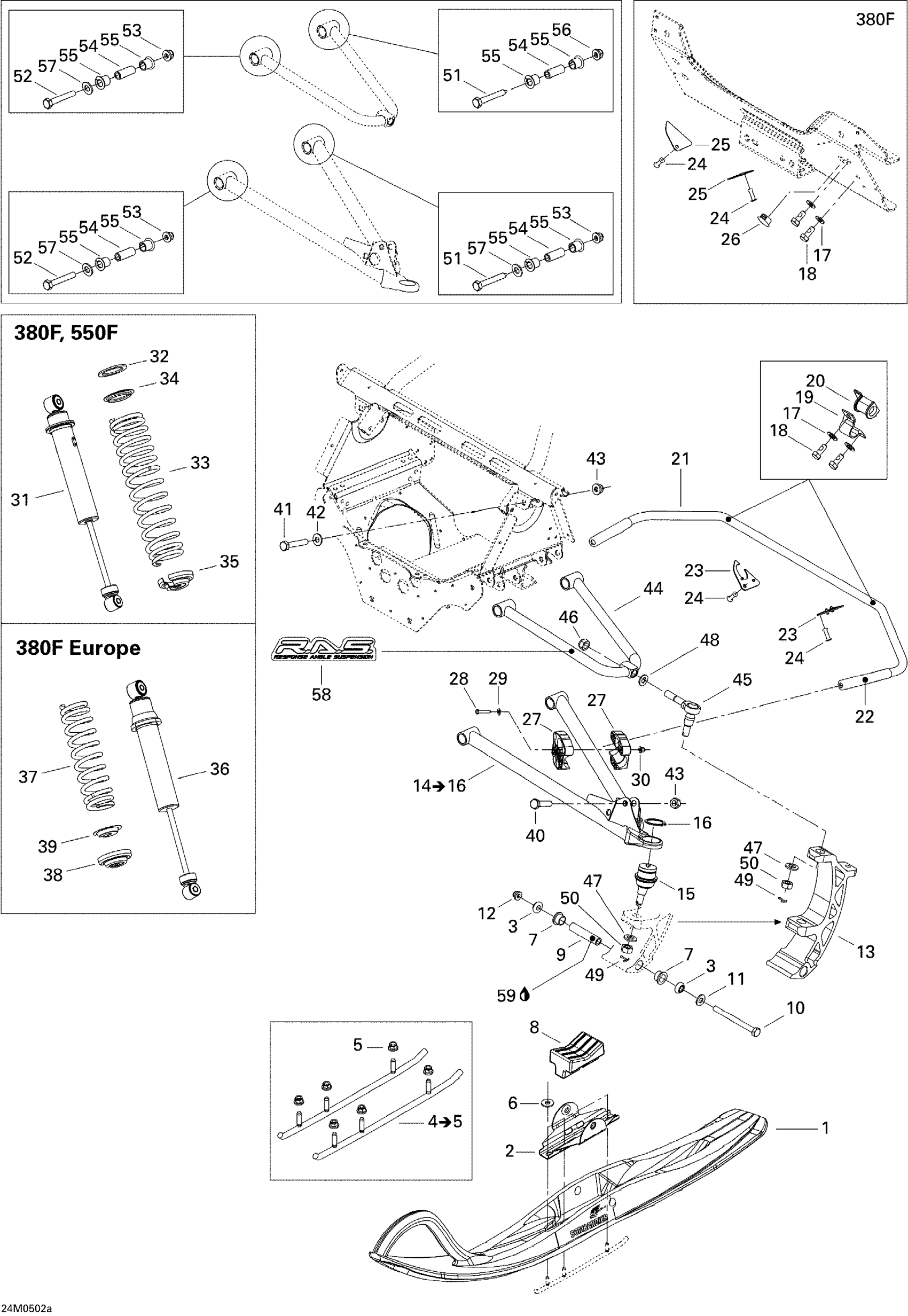

Ski-Doo MX Z 550F, 2005 Front Suspension And Ski MX Z 550F Diagram

#

Description
Price

1

Small ''Blow Mold'' Ski

505072019

Unavailable

2

BRIDGE ASS'Y - Call your local BRP dealership

505070980

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Carbide Runner Kit | STD, Includes 7 to 9 This part replaces 861805509.

860512100

Unavailable

5

Hex. Flange Elastic Nut M8

233281414

Unavailable

6

Flat Washer 8 mm

234082410

$1.11

7

Leg Bushing

505072690

Unavailable

8

Ski Stopper

505071304

Unavailable

9

Spacer

506133300

Unavailable

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

Unavailable

11

Flat Washer 10 mm

234001410

Unavailable

12

Hex. Flange Elastic Nut M10

233201414

$1.26

13

SKI LEG - Call your local BRP dealership

505071232

Unavailable

14

RH Lower Arm Ass'y | Includes 14 to 16

860510100

Unavailable

14

LH Lower Arm Ass'y | Includes 14 to 16

860510000

Unavailable

15

Ball Joint

505071658

Unavailable

16

Circlip

293370035

$2.55

17

Not Available As Spare Parts

XXX

Unavailable

18

Hex. Screw With Nylon

250000118

Unavailable

19

CLAMP - Call your local BRP dealership

506095800

Unavailable

20

LH BUSHING - Call your local BRP dealership

505070664

Unavailable

20

RH BUSHING - Call your local BRP dealership

505070912

Unavailable

21

STABILISATOR - Call your local BRP dealership

505070948

Unavailable

22

STABILISATOR BOOT - Call your local BRP dealership

505071039

Unavailable

23

PLUG - Call your local BRP dealership

505071253

Unavailable

24

Pop Rivet 3/16"

293150103

Unavailable

25

Not Available As Spare Parts

XXX

Unavailable

26

Not Available As Spare Parts

XXX

Unavailable

27

RH SLIDER HALF - Call your local BRP dealership

505071268

Unavailable

27

LH SLIDER HALF - Call your local BRP dealership

505071269

Unavailable

28

HEX. SCREW M5 X 25 - Call your local BRP dealership

207152544

Unavailable

29

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

30

Hex. Flange Elastic Nut M5

233251414

Unavailable

31

Front Shock | 550F

505071458

Unavailable

32

WASHER - Call your local BRP dealership

505070401

Unavailable

33

Spring

505071257

Unavailable

34

Spring Guide

503187500

Unavailable

35

Spring Stopper

706200881

$10.30

36

Not Available As Spare Parts

XXX

Unavailable

37

Not Available As Spare Parts

XXX

Unavailable

38

Not Available As Spare Parts

XXX

Unavailable

39

Not Available As Spare Parts

XXX

Unavailable

40

Hex. Screw M10 X 55

207005544

$1.85

41

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

42

Washer

503189564

Unavailable

43

Hex. Flange Elastic Nut M10

233201414

$1.26

44

UPPER ARM - Call your local BRP dealership

505071727

Unavailable

45

Upper Ball Joint

505072257

$16.89

46

Hex. Flange Elastic Nut M12

250000047

Unavailable

47

Flat Washer 12 mm

234021410

$0.68

48

Washer

503189276

Unavailable

49

Cotter Pin

211400017

Unavailable

50

Hex. Castellated Nut M12

232221414

Unavailable

51

Hex. Screw M10 X 75

250001063

Unavailable

52

Hex. Screw M10 X 75

250001063

Unavailable

53

Hex. Flange Elastic Nut M10

250100165

Unavailable

54

Bushing

505070567

Unavailable

55

Arm Bushing

505070566

Unavailable

56

Elastic Flange Nut M10

232501416

Unavailable

57

Washer

503189564

Unavailable

58

R.a.s. Suspension Decal

516002747

Unavailable

59

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
