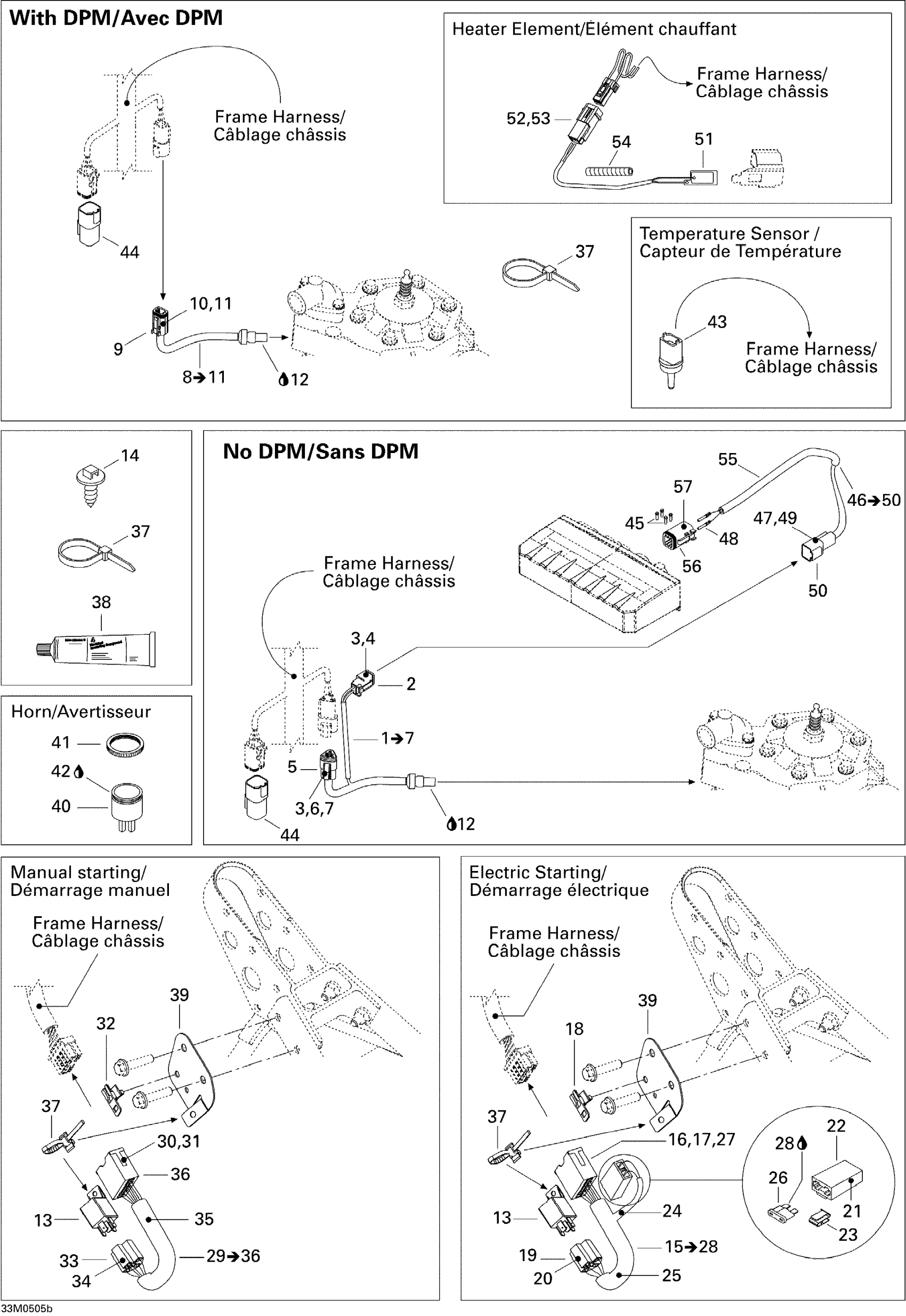

Ski-Doo MX Z 500SS Trail & Adrenaline, 2005 Electrical System B Diagram

#

Description
Price

1

TEMPERATURE SENSOR - Call your local BRP dealership | Includes 6 to 13 / SPORT

515176041

Unavailable

2

Female Terminal Housing, 2 Circuits

515175670

$7.61

3

Female Terminal

278000632

$1.94

4

Female Lock, 2 Circuits

515175675

$4.28

5

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

6

Female Lock, 3 Circuits

515175676

$4.96

7

Sealing Cap

293000052

$2.93

8

Temperature Sensor This part replaces 515176043.

515177835

$91.76

9

Male Connector, 4 Circuits | CE

278000739

$17.13

10

Female Terminal

278000632

$1.94

11

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

12

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

13

Relay | DS 650 X

710010053

Unavailable

14

Mount Dart

293730040

$0.99

15

Configuration Harness Ass'y | Includes 13 to 27

515175721

$61.16

16

Male Terminal

515175232

$1.45

17

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

18

Housing Support

515175283

$8.18

19

Female Housing, 5 Circuits

409209900

$8.72

20

Female Terminal

561503100

Unavailable

21

Female Terminal

409011600

$4.96

22

Fuse Holder

409004000

$6.79

23

CLIP - Call your local BRP dealership

409014200

Unavailable

24

Tubing 6 Mm 3000Mm Long

219704425

$12.75

25

Was 409901800 Tubing (13 mm)

219704400

$10.79

26

Fuse, 5 Amperes | CE

278000344

$3.12

27

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

28

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

29

CONFIGURATION HARNESS - Call your local BRP dealership | Manual Start, Includes 22 to 29

515176175

Unavailable

30

Male Terminal

515175232

$1.45

31

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

32

Housing Support

515175283

$8.18

33

Female Housing, 5 Circuits

409209900

$8.72

34

Female Terminal

561503100

Unavailable

35

Was 409901800 Tubing (13 mm)

219704400

$10.79

36

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

37

Tie-Rap 180 mm

414115200

$0.10

37

Tie Wrap 94 mm | 4X4

293750001

$0.96

37

Tie-Rap 173 mm

293750009

$0.97

38

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

39

HARNESS SUPPORT - Call your local BRP dealership

515176020

Unavailable

40

HORN - Call your local BRP dealership

515176035

Unavailable

41

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

42

Silicone Sealant 51388, 300 ml

296000309

$36.99

43

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

44

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

45

Sealing Cap

293000052

$2.93

46

Sensor Harness | Includes 25 - 29.

515175822

Unavailable

47

Male Terminal

278000631

$4.00

48

Female Terminal

278000632

$1.94

49

Male Lock, 2 Circuits

409207500

$2.93

50

Male Terminal Housing, 2 Circuits

515175665

$7.78

51

Heater Element

515176256

Unavailable

52

Male Terminal Housing, 2 Circuits

515175654

$7.25

53

Male Terminal

515175232

$1.45

54

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$18.63

55

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

56

Male Housing, 6 Circuits

515175673

$12.66

57

Male Wedge, 6 Circuits

515175678

$4.96
