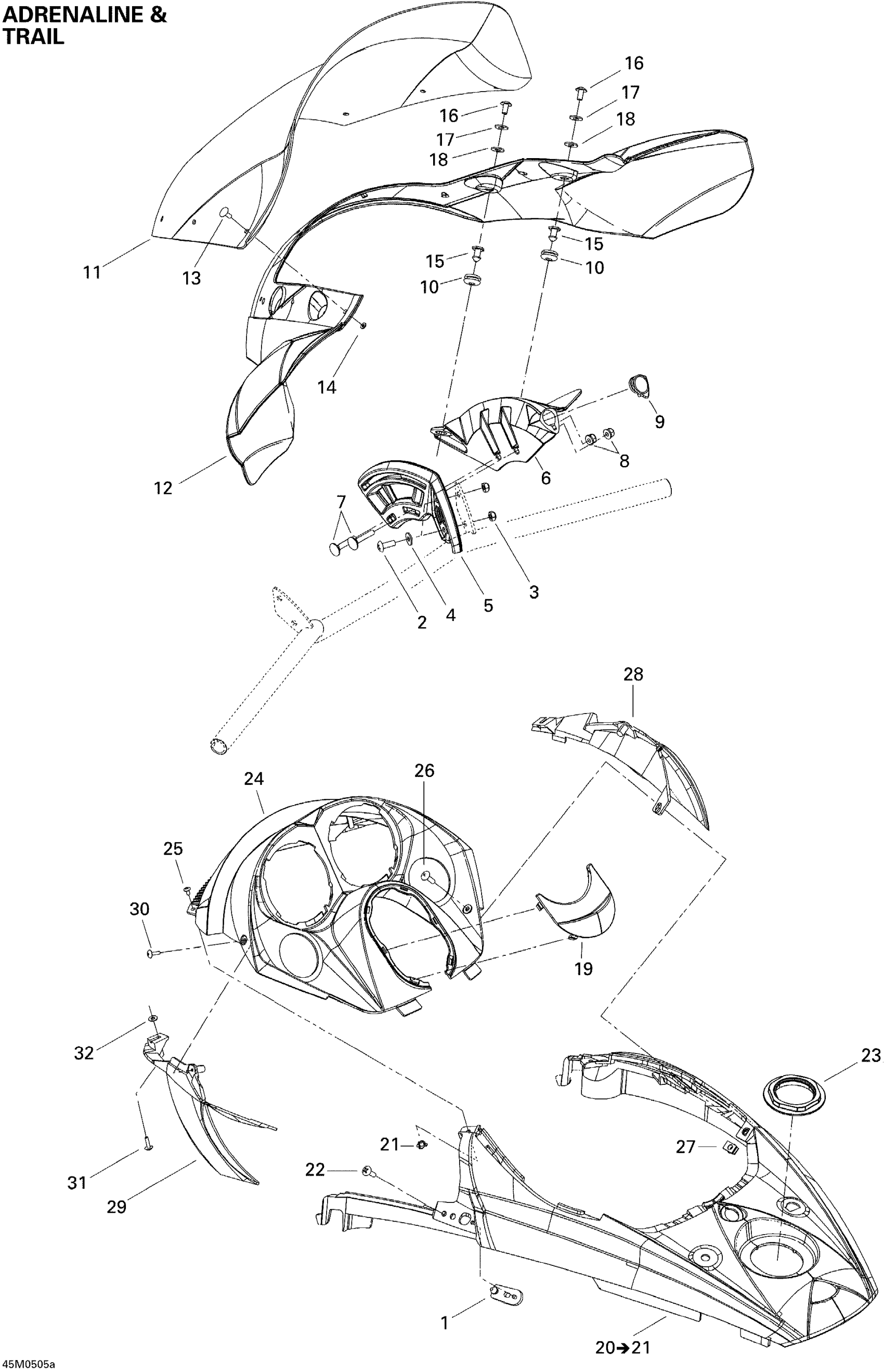

Ski-Doo MX Z 500SS Trail & Adrenaline, 2005 Windshield And Console Trail & Adrenaline Diagram

#

Description
Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

Torx Truss Screw M6 X 16

250000721

Unavailable

3

Hex. Nut M6

250000135

$0.51

4

Flat Washer 6 mm

234062100

Unavailable

5

RH Fixing Plate

517303076

Unavailable

5

LH Fixing Plate

517303078

Unavailable

6

RH WINDSHIELD SUPPORT - Call your local BRP dealership

517303077

Unavailable

6

LH WINDSHIELD SUPPORT - Call your local BRP dealership

517303079

Unavailable

7

Carriage Bolt M6 X 35

207763554

Unavailable

8

Hex. Flange Elastic Nut M6

233261494

$1.26

9

CAP - Call your local BRP dealership

517302806

Unavailable

10

Grommet

517302841

Unavailable

11

Windshield, Medium

517302443

Unavailable

12

Air Deflector

517302816

Unavailable

13

Windshield Dart

517303070

Unavailable

14

Push Nut

250100034

$1.11

15

Knob

517303439

$3.73

16

Torx Screw K50 X 16

250000720

$1.39

17

Washer M5

250200025

Unavailable

18

Rubber Washer 5 mm

250200024

$1.77

19

CONSOLE CAP - Call your local BRP dealership

517302592

Unavailable

20

CENTER CONSOLE, BLACK - Call your local BRP dealership | Includes 10 to 11, (Black/Yellow)

517302795

Unavailable

20

CENTER CONSOLE, YELLOW - Call your local BRP dealership | Includes 10 to 11

517302845

Unavailable

21

T-NUT, M4 - Call your local BRP dealership

250100030

Unavailable

22

Torx Screw M6 X 20

250000722

Unavailable

23

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

24

Indicator Support | Sport

517303471

Unavailable

25

Torx Screw M4 X 8

250000127

$1.09

26

Torx Screw M5 X 20

250000724

Unavailable

27

Panel Nut M5 X 0.8

250000958

Unavailable

28

RH AIR DEFLECTOR - Call your local BRP dealership

517302546

Unavailable

29

LH AIR DEFLECTOR - Call your local BRP dealership

517302547

Unavailable

30

Phillips Screw K40 X 16

250000723

Unavailable

31

Screw M4 X 16

250000725

Unavailable

32

Flat Washer 4 mm, Stainless

234042600

Unavailable
