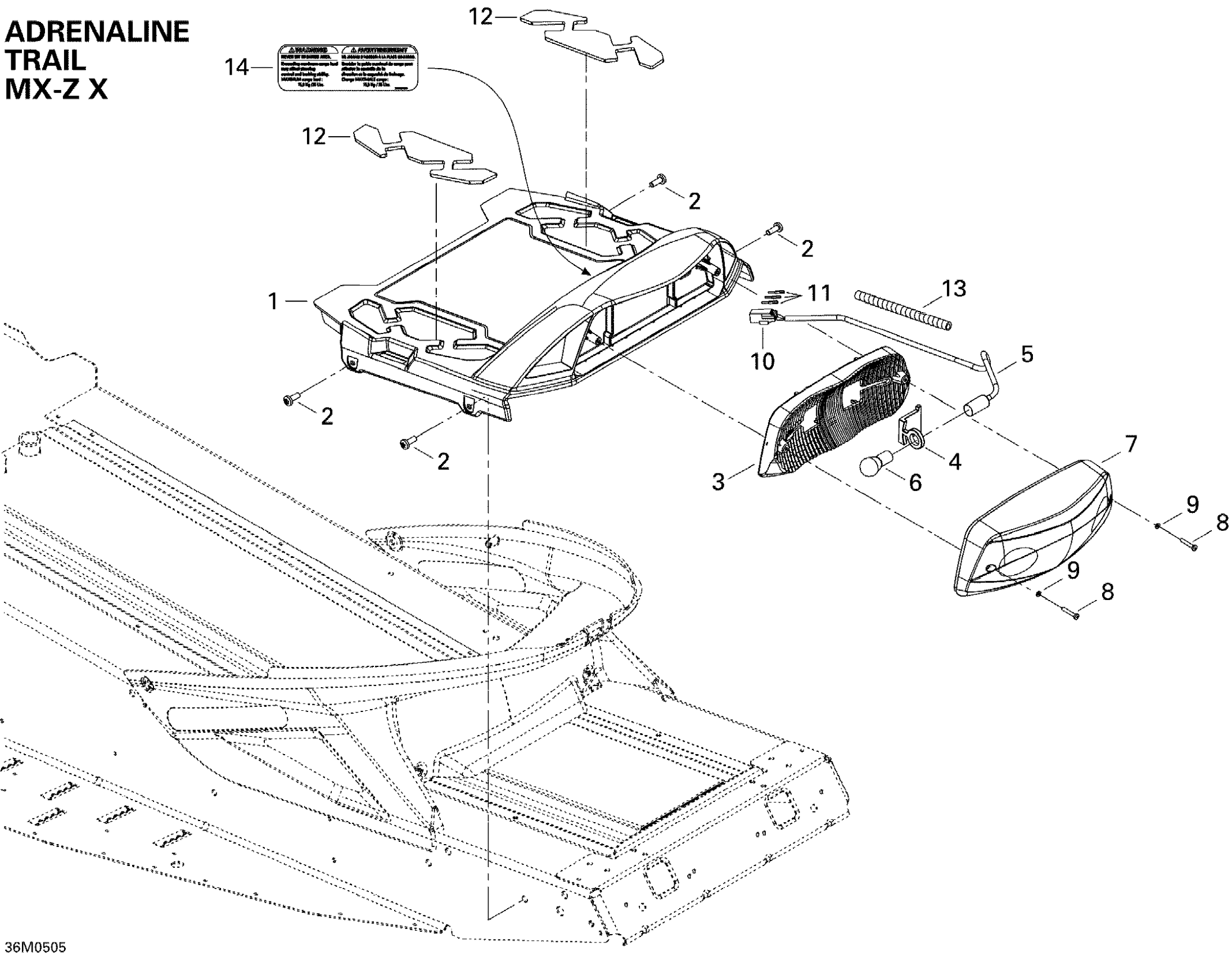

Ski-Doo MX Z 500SS Trail & Adrenaline, 2005 Luggage Rack Diagram

#

Description

Price

1

Luggage Rack

511000242

Unavailable

2

Torx Truss Screw M6 X 16

250000721

Unavailable

3

REFLECTOR - Call your local BRP dealership

510004442

Unavailable

4

BULB SUPPORT - Call your local BRP dealership

511000431

Unavailable

5

Bulb Socket

511000428

Unavailable

6

Bulb

520000758

$7.49

7

Lens

511000315

Unavailable

8

PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership

209632580

Unavailable

9

Washer - Call your local BRP dealership

414516400

Unavailable

10

Male Housing, 3 Circuits

515175494

$15.35

11

Male Terminal

515175232

$1.49

12

REAR CARPET - Call your local BRP dealership

520000481

Unavailable

13

Tubing 6 Mm 3000Mm Long

219704425

$13.14

14

Warning Label, Maximum Cargo Load

516002666

Unavailable
