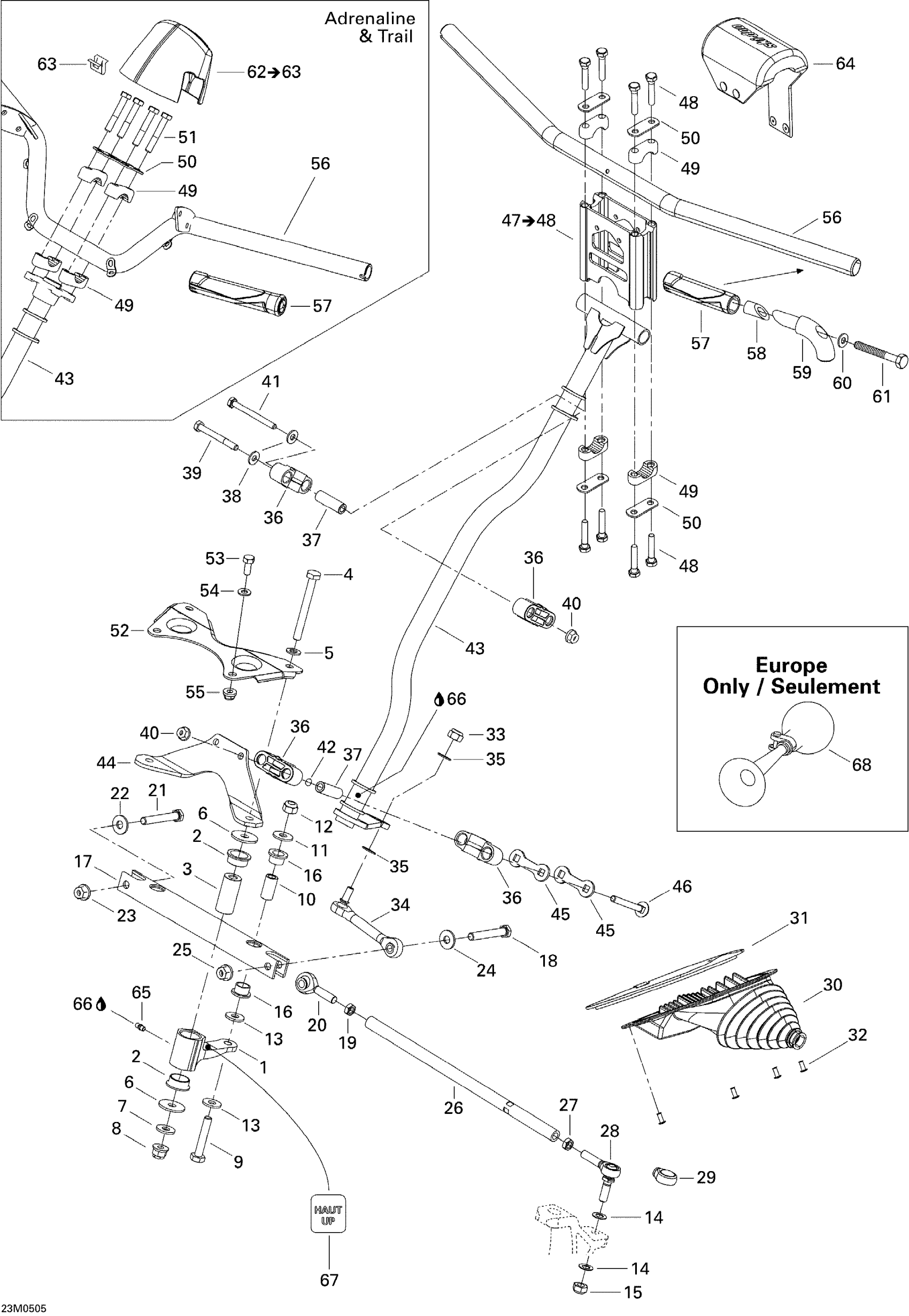

Ski-Doo MX Z 500SS Trail & Adrenaline, 2005 Steering System Diagram
#
1
RH Swivel Arm
506151627
Unavailable
1
LH Swivel Arm
506151628
Unavailable
3
SWIVEL PIVOT - Call your local BRP dealership
506151272
Unavailable
4
HEX. SCREW M10 X 90 - Call your local BRP dealership
207009086
Unavailable
6
Washer 10 mm
506150000
Unavailable
8
Flange Nut M10
732610084
Unavailable
10
Pivot Bar
506151273
Unavailable
11
FLAT WASHER - Call your local BRP dealership
224002251
Unavailable
13
Washer
250200032
Unavailable
15
Elastic Flange Nut M10
232501416
Unavailable
16
Swivel Bushing
503191555
Unavailable
17
SWIVEL BAR - Call your local BRP dealership
506151328
Unavailable
19
LH Threaded Hex. Jam Nut M10
250100016
Unavailable
20
LH Ball Joint
506151810
Unavailable
21
Hex. Screw M10 X 45
207004544
Unavailable
22
FLAT WASHER - Call your local BRP dealership
224002251
Unavailable
24
FLAT WASHER - Call your local BRP dealership
224002251
Unavailable
26
TIE-ROD - Call your local BRP dealership
506151340
Unavailable
27
RH Threaded Hex. Jam Nut M10
732610010
Unavailable
28
Ball Joint
506151811
Unavailable
29
PROTECTION CAP - Call your local BRP dealership
506151650
Unavailable
30
RH Tie-Rod Cap
506151725
Unavailable
30
LH Tie-Rod Cap
506151726
Unavailable
31
RH RETAINER RING - Call your local BRP dealership
506151356
Unavailable
31
LH RETAINER RING - Call your local BRP dealership
506151357
Unavailable
33
Elastic Flange Nut M10
232501416
Unavailable
34
BALL JOINT, DOUBLE - Call your local BRP dealership
506151621
Unavailable
36
Housing Half
506150400
Unavailable
37
Housing Bushing
506150500
Unavailable
39
Hex. Screw M8 X 70
207087044
Unavailable
40
Hex. Flange Elastic Nut M8
233281414
Unavailable
41
Hex. Screw M8 X 80
207088044
Unavailable
42
O-RING - Call your local BRP dealership
506151140
Unavailable
43
Main Tube
506151334
Unavailable
43
Main Tube | X
506151779
Unavailable
44
STEERING SHAFT SUPPORT - Call your local BRP dealership
506151330
Unavailable
45
Stopper Plate
506150600
Unavailable
46
Carriage Bolt M8 X 70
207787044
Unavailable
47
Steering Extension Kit
860603700
Unavailable
48
Hex. Screw With Nylon M8 X 40
250000074
Unavailable
49
Steering Support
709400919
Unavailable
50
Stiffner
709400509
Unavailable
50
REINFORCEMENT - Call your local BRP dealership
506151547
Unavailable
51
HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership
250000082
Unavailable
52
PIVOT SUPPORT - Call your local BRP dealership
506151536
Unavailable
53
Hex. Screw M8 X 25
207182544
Unavailable
54
Flat Washer 8 mm
234081410
Unavailable
55
Hex. Flange Elastic Nut M8
233281414
Unavailable
56
Handlebar
506151667
Unavailable
56
HANDLE BAR - Call your local BRP dealership
506151782
Unavailable
57
Handle Grip
506152057
Unavailable
57
HANDLE GRIP - Call your local BRP dealership
506152150
Unavailable
58
Wedge Lock
506151839
Unavailable
59
Short J-hook
506151837
Unavailable
60
Flat Washer
250200039
Unavailable
61
HEX. SCREW M6 X 70 - Call your local BRP dealership
207067084
Unavailable
62
CAP - Call your local BRP dealership | Includes 29 to 30
506151660
Unavailable
63
Edge Clip
517302785
Unavailable
64
STEERING PAD - Call your local BRP dealership
506152522
Unavailable
65
Grease Fitting
408200700
Unavailable
66
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
67
Upper Decal
516001750
Unavailable
