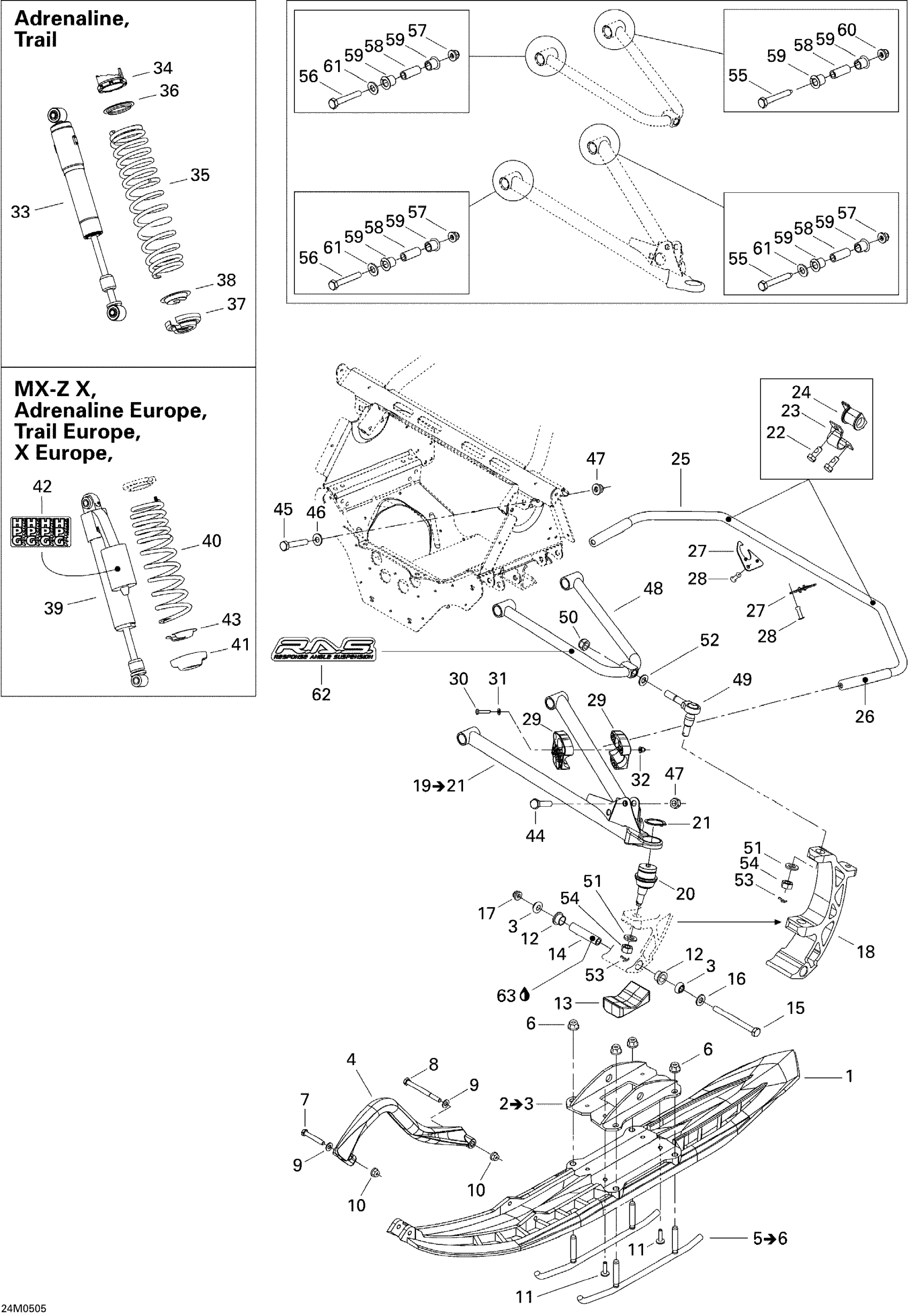

Ski-Doo MX Z 500SS Trail & Adrenaline, 2005 Front Suspension And Ski Diagram
#
1
Deep Black, Precision Ski | Sport
505070727
Unavailable
2
Bridge Ass'y | Includes 2 to 3
505070764
Unavailable
3
BUSHING - Call your local BRP dealership
505070001
Unavailable
4
Yellow Handle | Model-MX-Z TNT
505070917
Unavailable
4
Black, Handle
505070963
Unavailable
4
Viper Red Handle
505071059
Unavailable
5
Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.
860200148
Unavailable
7
Hex. Screw M8 X 50
207085044
Unavailable
9
Flat Washer 8 mm
234081410
Unavailable
10
Hex. Flange Elastic Nut M8
233281414
Unavailable
11
RIVET_POP 1/4 - Call your local BRP dealership
293150090
Unavailable
12
Leg Bushing
505072690
Unavailable
13
Ski Stopper
505070671
Unavailable
14
Spacer
506133300
Unavailable
15
HEX. SCREW M10 X 110 - Call your local BRP dealership
250000001
Unavailable
16
Washer
732900049
Unavailable
17
Flange Nut M10
732610084
Unavailable
18
SKI LEG - Call your local BRP dealership
505071232
Unavailable
19
RH Lower Arm Ass'y | Includes 14 to 16
860510100
Unavailable
19
LH Lower Arm Ass'y | Includes 14 to 16
860510000
Unavailable
20
Ball Joint
505071658
Unavailable
22
Hex. Screw With Nylon
250000118
Unavailable
23
CLAMP - Call your local BRP dealership
506095800
Unavailable
24
LH BUSHING - Call your local BRP dealership
505070664
Unavailable
24
RH BUSHING - Call your local BRP dealership
505070912
Unavailable
25
STABILISATOR - Call your local BRP dealership
505070948
Unavailable
26
STABILISATOR BOOT - Call your local BRP dealership
505071039
Unavailable
27
PLUG - Call your local BRP dealership
505071253
Unavailable
28
Pop Rivet 3/16"
293150103
Unavailable
29
RH SLIDER HALF - Call your local BRP dealership
505071268
Unavailable
29
LH SLIDER HALF - Call your local BRP dealership
505071269
Unavailable
30
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152544
Unavailable
31
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
32
Hex. Flange Elastic Nut M5
233251414
Unavailable
33
Front Shock | GSX Ltd
505071224
Unavailable
33
Front Shock | Sport
505071202
Unavailable
34
Adjustment Cam
505073625
Unavailable
34
Adjustment Cam
505073625
Unavailable
35
Spring
505071257
Unavailable
36
Spring Guide
503191872
Unavailable
36
Spring Guide
503187500
Unavailable
38
Cap
706200785
Unavailable
39
RH FRONT SHOCK - Call your local BRP dealership | X
505071301
Unavailable
39
RH Front Shock | Adrenaline Europe, Trail Europe, X Europe
505071646
Unavailable
39
LH Front Shock | X
505071300
Unavailable
39
LH Front Shock | Adrenaline Europe, Trail Europe, X Europe
505071645
Unavailable
40
SPRING - Call your local BRP dealership | X, Adrenaline Europe, Trail Europe, X Europe
505071388
Unavailable
42
Shock Decal | X
516002748
Unavailable
43
Cap
706200785
Unavailable
45
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
46
Washer
503189564
Unavailable
48
UPPER ARM - Call your local BRP dealership
505071727
Unavailable
50
Hex. Flange Elastic Nut M12
250000047
Unavailable
52
Washer
503189276
Unavailable
53
Cotter Pin
211400017
Unavailable
54
Hex. Castellated Nut M12
232221414
Unavailable
55
Hex. Screw M10 X 75
250001063
Unavailable
56
Hex. Screw M10 X 75
250001063
Unavailable
57
Hex. Flange Elastic Nut M10
250100165
Unavailable
58
Bushing
505070567
Unavailable
59
Arm Bushing
505070566
Unavailable
60
Elastic Flange Nut M10
232501416
Unavailable
61
Washer
503189564
Unavailable
62
R.a.s. Suspension Decal
516002747
Unavailable
63
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
