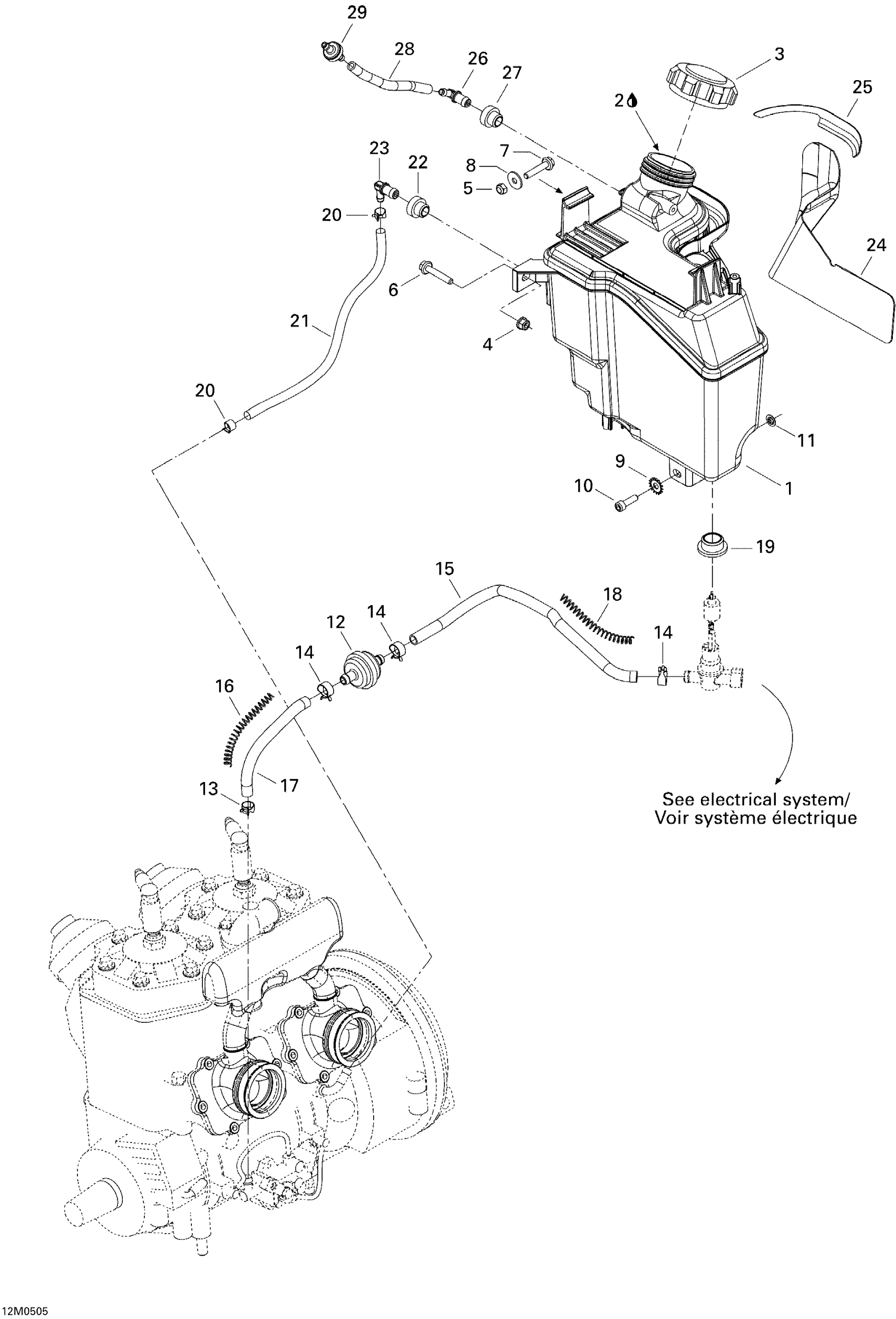

Ski-Doo MX Z 500SS Trail & Adrenaline, 2005 Oil System Diagram

#

Description
Price

1

OIL TANK - Call your local BRP dealership

519000111

Unavailable

2

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.33

2

2T Snowmobile Premium Mineral Oil This part replaces 413803000.

779120

Unavailable

2

OIL 2T CARB PREM. MINERAL 55 GAL/205L This part replaces 413803200.

779123

Unavailable

3

CAP - Call your local BRP dealership

519000033

Unavailable

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

5

Elastic Stop Nut M6

232561414

$1.78

6

Hex. Flange Screw M6 X 35

207663544

$0.85

7

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

8

Flat Washer

250200082

$0.40

9

Lock Washer Serrated M6

250200041

$1.06

10

Socket Head Screw M6 X 20

205062044

$1.22

11

Push Nut

732610072

$1.97

12

Filter

414536500

$3.73

13

Spring Clamp

414420700

$0.66

14

Spring Clamp

414415200

$0.81

15

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

16

SPRING - Call your local BRP dealership

519000064

Unavailable

17

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$31.31

18

SPRING - Call your local BRP dealership

519000065

Unavailable

19

Insulating Ring

570023000

$5.30

20

Spring Clamp

414554800

$0.81

21

Polyurethane Hose 10000Mm Long

219704410

$52.96

22

Grommet

513032908

$8.48

23

Male Connector

414580700

$3.88

24

REFLECTIVE SHEET - Call your local BRP dealership

519000054

Unavailable

25

REFLECTIVE SHEET - Call your local BRP dealership

519000072

Unavailable

26

Male Connector

414580700

$3.88

27

Grommet

513032908

$8.48

28

Polyurethane Hose 10000Mm Long

219704410

$52.96

29

Check Valve

275500398

$9.84
