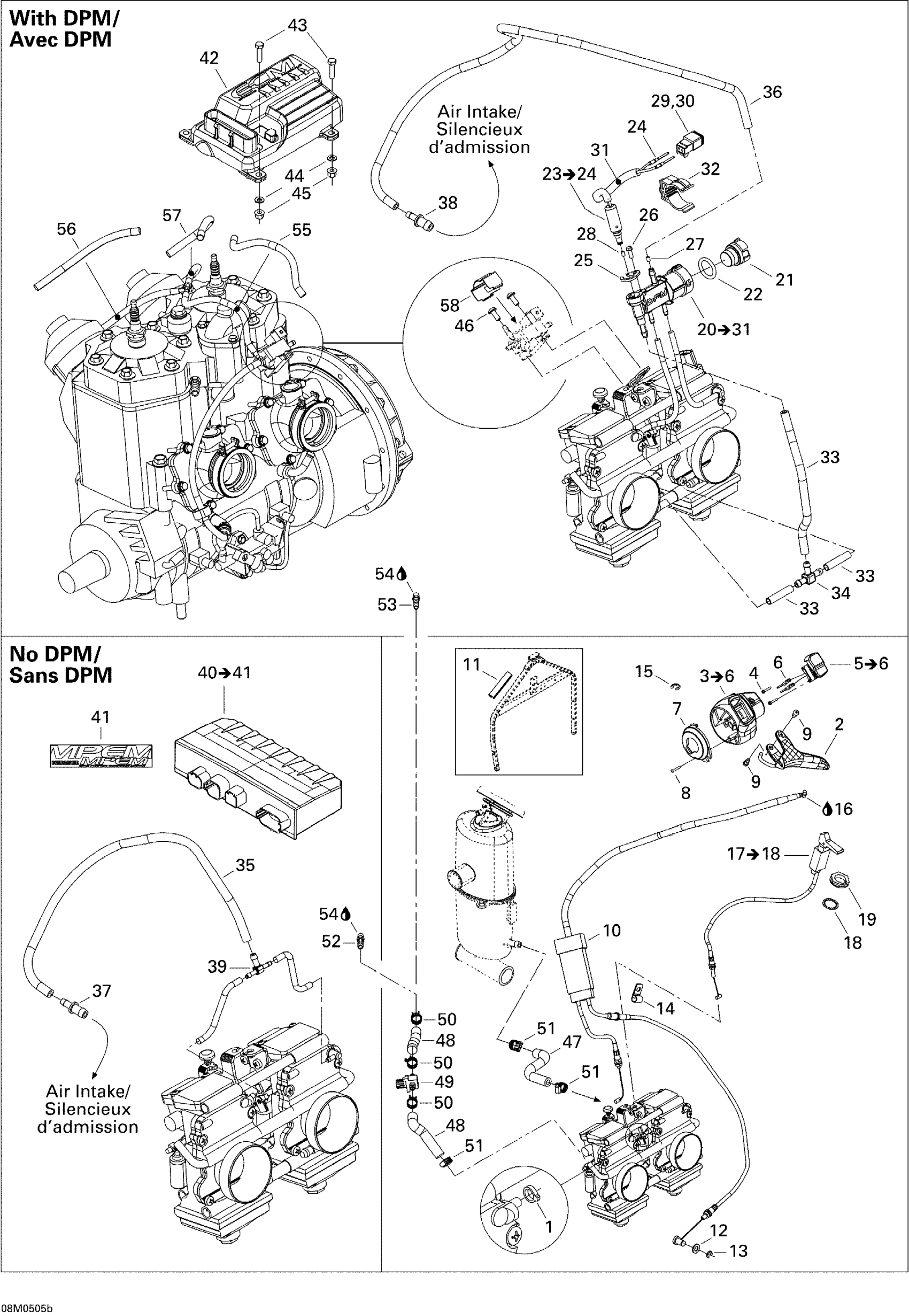

Ski-Doo MX Z 500SS Trail & Adrenaline, 2005 Engine 2 Diagram

#

Description
Price

1

Tie Wrap 94 mm | 4X4

293750001

$0.83

2

Throttle Handle Ass'y | Includes 13 to 14

512060484

$118.43

3

Housing Throttle Ass'y | Includes 25 to 27

512060121

Unavailable

4

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

5

Housing Throttle Ass'y | Includes 25 to 27

512060121

Unavailable

6

Male Terminal

515175232

$1.49

7

COVER - Call your local BRP dealership

512059698

Unavailable

8

PHILLIPS SCREW M2.9 X 16 - Call your local BRP dealership

250000098

Unavailable

9

Flange Screw

732601143

$4.02

10

THROTTLE CABLE - Call your local BRP dealership

512060084

Unavailable

10

Throttle Cable

512060085

Unavailable

11

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

12

Flat Washer 8 mm, Nylon

234081100

$1.00

13

Circlip

414753500

$0.59

14

Open Clamp

414176000

$1.86

15

Circlip

414274500

Unavailable

16

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

17

CHOKE CABLE - Call your local BRP dealership | Includes 47 to 48

512059266

Unavailable

18

Lock Washer, Interior Teeth

394103300

Unavailable

19

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

20

PRESSURE MANIFOLD ASS'Y - Call your local BRP dealership

512060002

$221.51

21

CAP - Call your local BRP dealership

270600009

$5.63

22

O-RING - Call your local BRP dealership

293300042

$7.69

23

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

$73.82

24

Female Terminal

278001665

Unavailable

25

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

26

Screw K40 X 10

241140060

$1.25

27

Starter Jet | 800 H.O.

404161819

Unavailable

28

STARTER JET - Call your local BRP dealership

404161825

Unavailable

29

Female Terminal Housing, 2 Circuits

515175670

Unavailable

30

Female Lock, 2 Circuits

515175675

Unavailable

31

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

32

SUPPORT - Call your local BRP dealership

512058919

Unavailable

33

Polyurethane Hose 10000Mm Long

219704410

Unavailable

34

T-FITTING - Call your local BRP dealership | Engine 800R

414729300

Unavailable

35

Polyurethane Hose 10000Mm Long

219704410

Unavailable

36

Polyurethane Hose 10000Mm Long

219704410

Unavailable

37

Straight Fitting

293710035

$8.63

38

Straight Fitting

293710035

$8.63

39

T-Fitting

572045500

Unavailable

40

Calibrated Module | Includes 40 to 41 / 500 SS

512059850

Unavailable

40

CALIBRATED MODULE - Call your local BRP dealership | Includes 40 to 41 / 600 H.O.

512059852

Unavailable

40

Calibrated Module | Includes 40 to 41 / 800 H.O. no DPM

512059855

Unavailable

41

Electrical Box Decal

516000245

Unavailable

42

Calibrated Module | 800 H.O. with DPM

512059980

Unavailable

43

Hex. Screw M5 X 20

207152044

$0.88

44

Flat Washer M5

234051410

Unavailable

45

Hex. Flange Elastic Nut M5

233251414

Unavailable

46

SCREW M5 X 12 - Call your local BRP dealership | 800 H.O. with DPM

205451286

Unavailable

47

FORMED HOSE - Call your local BRP dealership

509000171

Unavailable

48

Hose 8 mm

509000093

Unavailable

49

Valve 5/16” | Grand Touring 500.

512059324

Unavailable

50

Spring Clamp

414655700

Unavailable

51

Tridon Gear Clamp

293650170

$1.74

52

STRAIGHT FITTING - Call your local BRP dealership | Grand Touring 500.

293710082

Unavailable

53

Male Connector 1/8"-27 NPT

512060196

Unavailable

54

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

55

Was 409901700 Tubing (9 mm)

219704399

Unavailable

56

Was 409901700 Tubing (9 mm)

219704399

Unavailable

57

Was 409901700 Tubing (9 mm)

219704399

Unavailable

58

Heating Element Bracket

512059809

Unavailable
