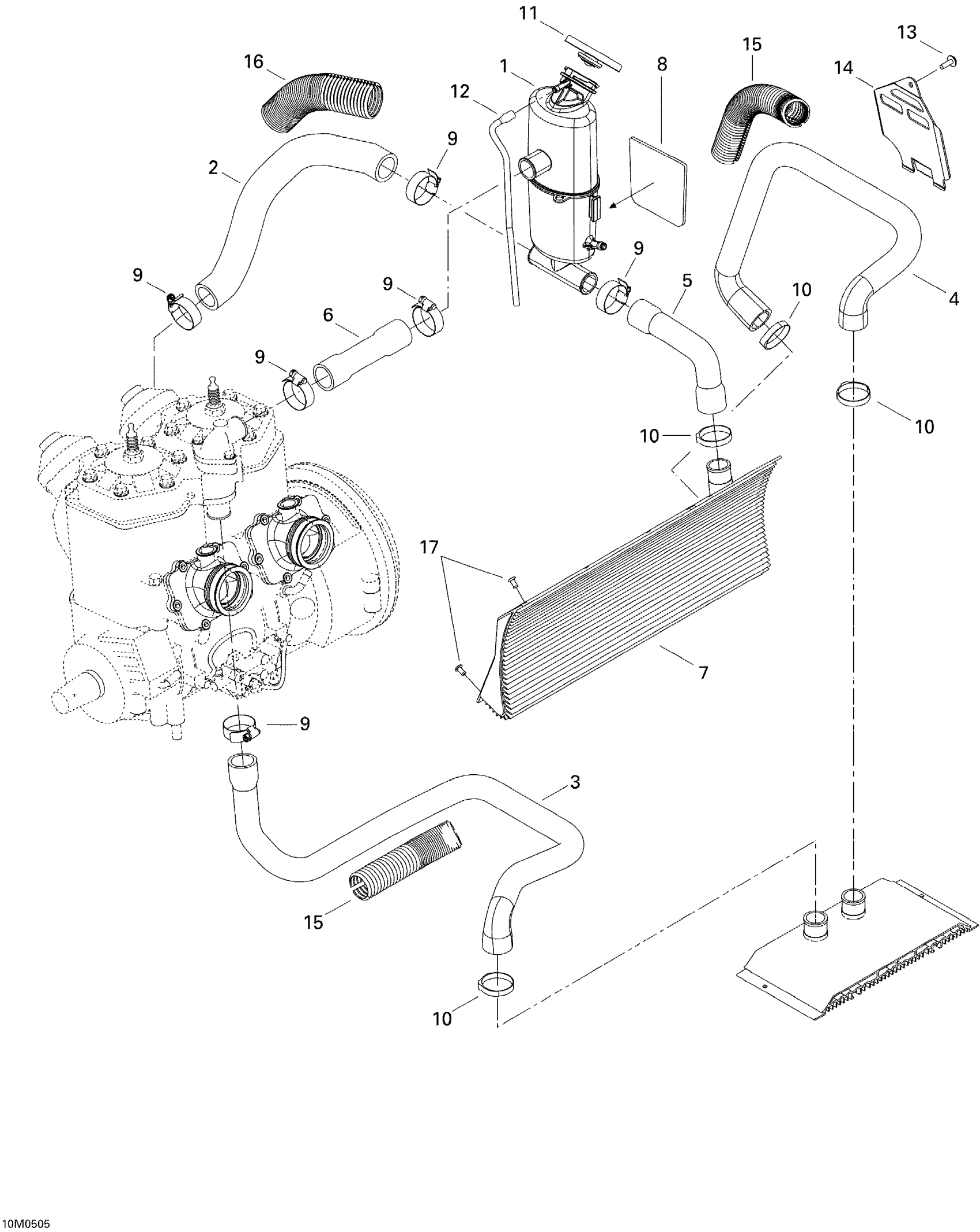

Ski-Doo MX Z 500SS Trail & Adrenaline, 2005 Cooling System Diagram

#

Description
Price

1

Coolant Tank

509000408

Unavailable

2

ENGINE INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000135

Unavailable

3

ENGINE OUTLET HOSE - Call your local BRP dealership

509000334

Unavailable

4

Engine Inlet Hose

509000335

Unavailable

5

RADIATOR OUTLET HOSE - Call your local BRP dealership

509000266

Unavailable

6

Hose

509000129

Unavailable

7

FRONT RADIATOR - Call your local BRP dealership

518323903

Unavailable

8

REFECTIVE SHEET - Call your local BRP dealership

509000190

Unavailable

9

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

10

Oetiker Gear Clamp

509000181

$3.61

11

Pressure Cap

509000187

Unavailable

12

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

13

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

14

DEFLECTOR - Call your local BRP dealership

509000257

Unavailable

15

Tubing 25 MM 1000MM Long

219704402

Unavailable

16

Tubing 35 MM 1000MM Long

219704428

Unavailable

17

Pop Rivet 3/16"

390402200

$0.26
