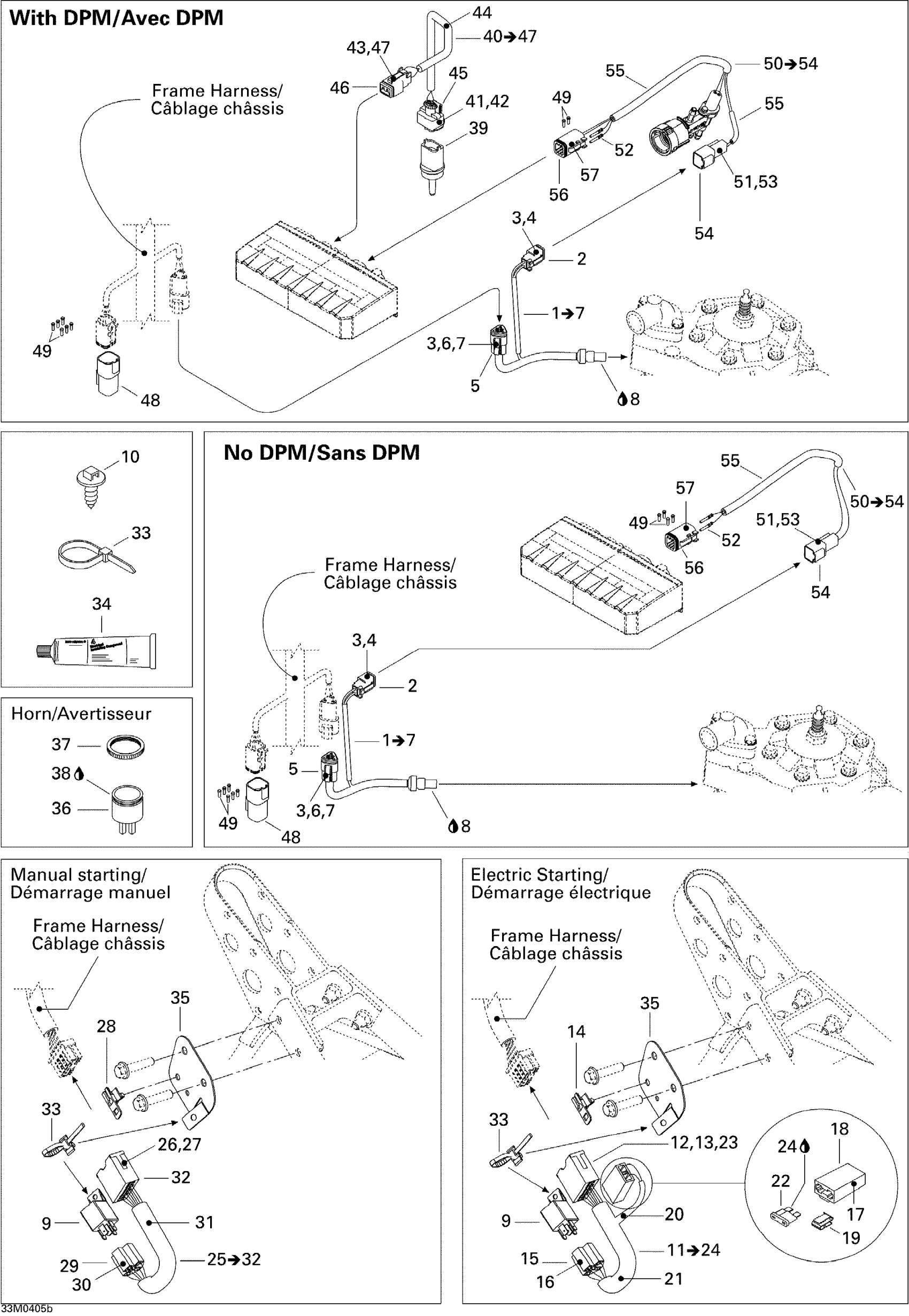

Ski-Doo MX Z 500SS Trail/Adrenaline, 2004 Electrical System 2 Diagram

#

Description
Price

1

TEMPERATURE SENSOR - Call your local BRP dealership | Includes 6 to 13 / SPORT

515176041

Unavailable

2

Female Terminal Housing, 2 Circuits

515175670

Unavailable

3

Female Terminal

278000632

Unavailable

4

Female Lock, 2 Circuits

515175675

Unavailable

5

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

515175671

Unavailable

6

Female Lock, 3 Circuits

515175676

Unavailable

7

Sealing Cap

293000052

Unavailable

8

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

9

Relay | DS 650 X

710010053

Unavailable

10

Mount Dart

293730040

$0.86

11

Configuration Harness Ass'y | Includes 13 to 27

515175721

Unavailable

12

Male Terminal

515175232

$1.49

13

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

14

Housing Support

515175283

$8.43

15

Female Housing, 5 Circuits

409209900

$8.98

16

Female Terminal

561503100

Unavailable

17

Female Terminal

409011600

$5.11

18

Fuse Holder

409004000

Unavailable

19

CLIP - Call your local BRP dealership

409014200

$4.23

20

Tubing 6 Mm 3000Mm Long

219704425

$13.14

21

Was 409901800 Tubing (13 mm)

219704400

Unavailable

22

Fuse, 5 Amperes | CE

278000344

$3.22

23

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

24

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

25

Configuration Harness | Includes items 25 to 32 / Manual starting

515175722

Unavailable

26

Male Terminal

515175232

$1.49

27

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

28

Housing Support

515175283

$8.43

29

Female Housing, 5 Circuits

409209900

$8.98

30

Female Terminal

561503100

Unavailable

31

Was 409901800 Tubing (13 mm)

219704400

Unavailable

32

MALE TERMINAL HOUSING, 11 CIRCUITS - Call your local BRP dealership

515175720

Unavailable

33

Tie-Rap 180 mm

414115200

$0.09

Tie-Rap 173 mm

293750009

Unavailable

34

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

35

HARNESS SUPPORT - Call your local BRP dealership

515176020

Unavailable

36

HORN - Call your local BRP dealership

515176035

Unavailable

37

PLASTIC NUT - Call your local BRP dealership

414805101

$3.57

38

Silicone Sealant 51388, 300 ml

296000309

Unavailable

39

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

40

Temperature Harness | Includes 40 to 47

515175703

Unavailable

41

Female Terminal

278000998

$3.48

42

Wire Seal

278000999

$2.55

43

Female Terminal

278000632

Unavailable

44

Vinyl Tubing, Low Temp 3000Mm Long

219704424

Unavailable

45

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515175588

Unavailable

46

Female Terminal Housing, 2 Circuits

515175670

Unavailable

47

Female Lock, 2 Circuits

515175706

Unavailable

48

Male Terminal Housing, 6 Circuits

515175668

$14.02

49

Sealing Cap

293000052

Unavailable

Sealing Cap

293000052

Unavailable

50

Sensor Harness | Includes 25 - 29.

515175822

Unavailable

51

Male Terminal

278000631

$4.12

52

Female Terminal

278000632

Unavailable

53

Male Lock, 2 Circuits

409207500

$3.02

54

Male Terminal Housing, 2 Circuits

515175665

$8.02

55

LOW TEMPERATURE VINYL TUBING - Call your local BRP dealership

409901300

Unavailable

56

Male Housing, 6 Circuits

515175673

$13.05

57

Male Wedge, 6 Circuits

515175678

Unavailable
