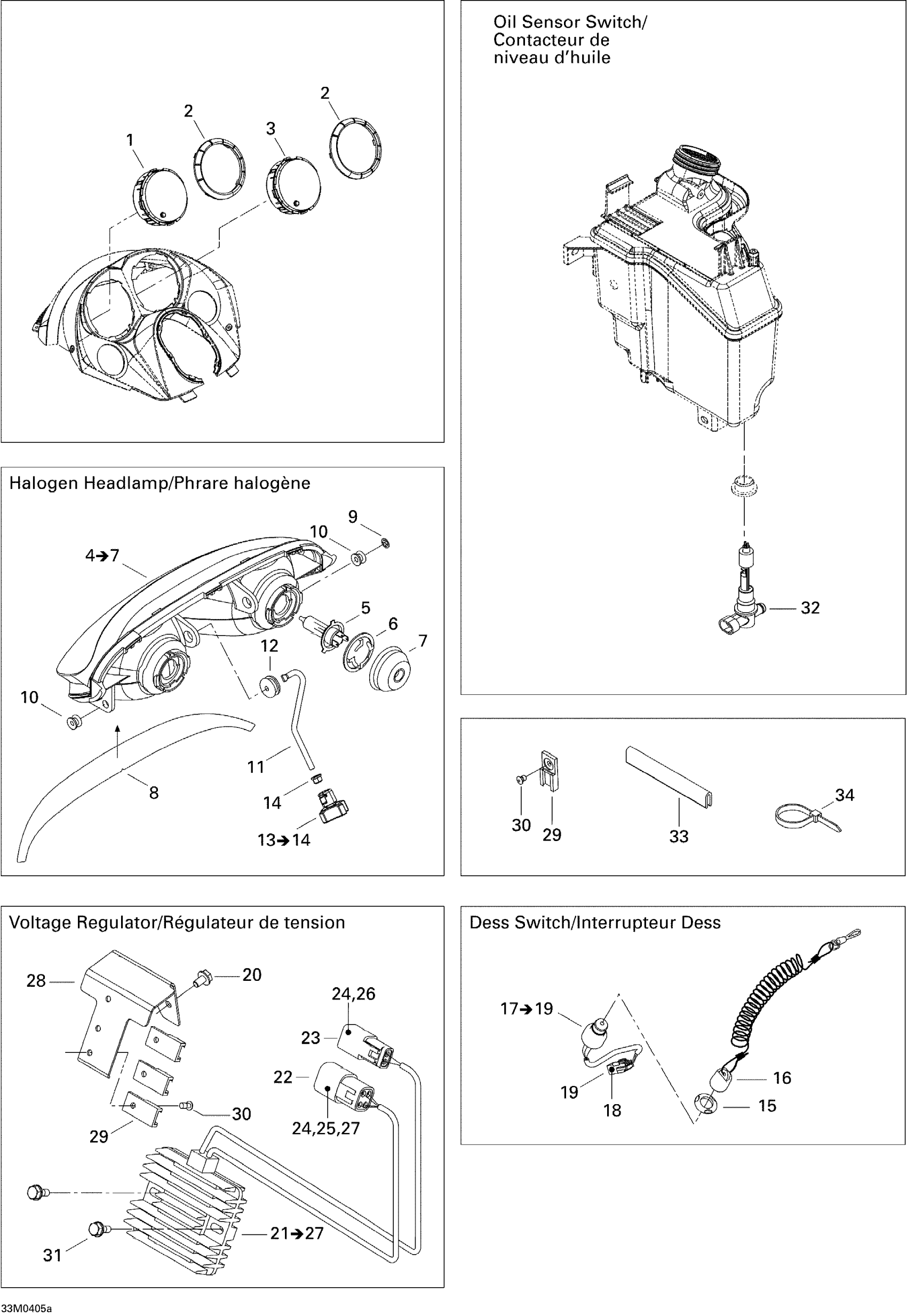

Ski-Doo MX Z 500SS Trail/Adrenaline, 2004 Electrical System 1 Diagram

#

Description
Price

1

Speedometer

515176001

Unavailable

2

Gauge Ring This part replaces 515176242.

515179005

$12.69

3

Tachometer

515176072

Unavailable

4

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$288.43

5

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

6

BULB HOLDER - Call your local BRP dealership

515176385

Unavailable

7

COVER - Call your local BRP dealership

515175911

Unavailable

8

HEADLAMP DECAL - Call your local BRP dealership

516001328

Unavailable

9

Push Nut

732610072

$1.72

10

HEADLAMP BUSHING - Call your local BRP dealership

515175760

Unavailable

11

ADJUSTER ROD - Call your local BRP dealership

515175521

Unavailable

12

Grommet - Call your local BRP dealership

415100800

Unavailable

13

HANDLE - Call your local BRP dealership

515175975

Unavailable

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Safety Nut (DESS Switch)

278002963

$2.72

16

DESS

515178284

$81.51

17

DESS Switch

515177249

$106.12

18

Male Terminal

515175232

$1.49

19

Male Housing, 3 Circuits

515175494

$15.35

20

Hex. Forming Screw M6 X 10

210261050

$1.42

21

Voltage Regulator

515175968

$233.05

22

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

23

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

24

Male Terminal

515175568

$7.48

25

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

26

Male Lock, 2 Circuits

278001672

$3.02

27

Sealing Cap

293000052

$2.55

28

Housing Support

515175916

Unavailable

29

Clip

270000141

$8.33

30

Avdel Rivet 3/16"

293150037

$0.47

31

Hexagonal Head Screw

210262050

$1.74

32

OIL LEVEL SENSOR - Call your local BRP dealership

515176327

Unavailable

33

TRIM - Call your local BRP dealership

509000263

Unavailable

34

Tie Wrap 368 mm

293750008

$0.85
