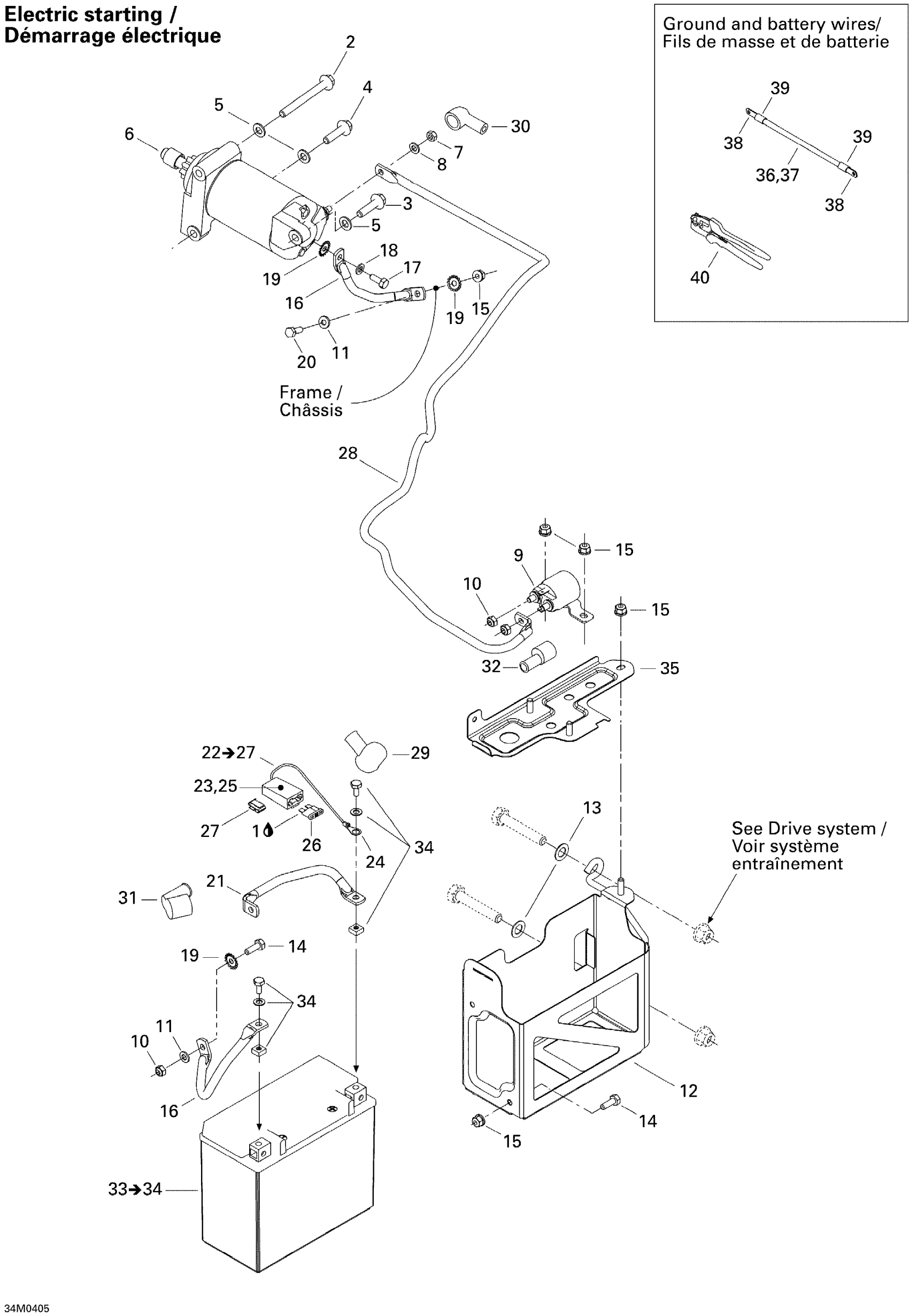

Ski-Doo MX Z 500SS Trail/Adrenaline, 2004 Battery And Accessories Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

2

Hex. Flange Screw M8 X 75, Scotch Grip

207587544

Unavailable

3

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable

4

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

Unavailable

5

Flat Washer With Teflon 8 mm

250200008

Unavailable

6

Electric Starter Ass'y

515176133

Unavailable

7

Elastic Stop Nut M6

232561414

Unavailable

8

Flat Washer 6 mm

234061410

Unavailable

9

Starter Relay

515176011

Unavailable

10

Elastic Stop Nut M6

232561414

Unavailable

11

Flat Washer 6 mm

234061410

Unavailable

12

Battery Support, Black

515176017

Unavailable

13

Washer

503175800

$3.26

14

Hex. Screw M6 X 18

207161844

Unavailable

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

Unavailable

18

Flat Washer 6 mm

234061410

Unavailable

19

Lock Washer Serrated M6

250200041

Unavailable

20

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Battery Fuse Wire | Includes 21 to 22

515175489

Unavailable

23

Female Terminal

409004200

Unavailable

24

Open Barrel

278000992

$1.79

25

Fuse Holder

409004000

Unavailable

26

Fuse, 30 Amperes

410917200

$3.22

27

CLIP - Call your local BRP dealership

409014200

$4.23

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Protection Cap

570151000

$18.43

30

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

31

PROTECTION CAP - Call your local BRP dealership

570064200

Unavailable

32

Protector Cap | XT

515175919

$16.89

33

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

34

Battery Bolt Kit

250000282

$2.95

35

BATTERY STRIP - Call your local BRP dealership

515175735

Unavailable

36

Ground Cable Battery, no 6, meter)

278001680

Unavailable

37

Cable Battery, no 6, meter)

278001690

Unavailable

38

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

Terminal 30°, 2 Holes

278001776

Unavailable

39

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

40

Crimp Plier

529035730

Unavailable
