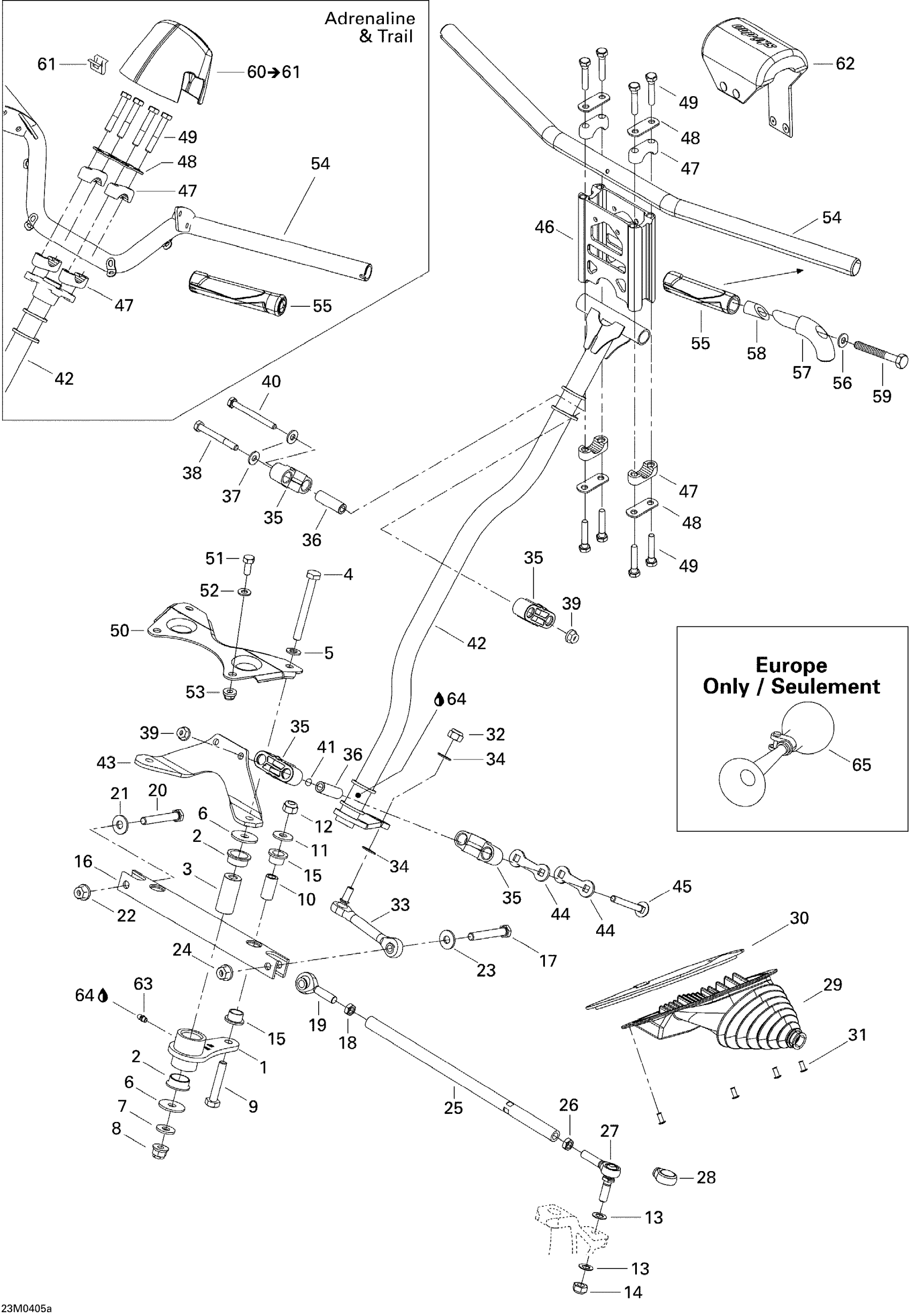

Ski-Doo MX Z 500SS Trail/Adrenaline, 2004 Steering System Diagram

#

Description
Price

1

RH Swivel Arm

506151651

Unavailable

LH SWIVEL ARM - Call your local BRP dealership

506151652

Unavailable

2

CUSHION - Call your local BRP dealership

415041100

$5.52

3

SWIVEL PIVOT - Call your local BRP dealership

506151272

Unavailable

4

HEX. SCREW M10 X 90 - Call your local BRP dealership

207009086

Unavailable

5

Washer

503183800

$3.20

6

Washer 10 mm

506150000

Unavailable

7

Flat Washer M10 | 4X4

250200014

$1.17

8

Flange Nut M10

732610084

Unavailable

9

Hex. Screw M10 X 55

207005544

$1.85

10

Pivot Bar

506151273

Unavailable

11

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

12

Elastic Locking Nut M10 X 1.5

233601416

$1.68

13

Washer

503175800

$3.26

14

Elastic Flange Nut M10

232501416

Unavailable

15

Swivel Bushing

503191555

Unavailable

16

SWIVEL BAR - Call your local BRP dealership

506151328

Unavailable

17

Hex. Screw M10 X 1.5 X 65

207006544

$2.29

18

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

19

LH Ball Joint

506151810

Unavailable

20

Hex. Screw M10 X 45

207004544

Unavailable

21

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

22

Hex. Flange Elastic Nut M10

233201414

$1.26

23

FLAT WASHER - Call your local BRP dealership

224002251

Unavailable

24

Hex. Flange Elastic Nut M10

233201414

$1.26

25

TIE-ROD - Call your local BRP dealership

506151340

Unavailable

26

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

27

Ball Joint

506151811

Unavailable

28

PROTECTION CAP - Call your local BRP dealership

506151650

Unavailable

29

RH Tie-Rod Cap

506151725

Unavailable

LH Tie-Rod Cap

506151726

Unavailable

30

RH RETAINER RING - Call your local BRP dealership

506151356

Unavailable

LH RETAINER RING - Call your local BRP dealership

506151357

Unavailable

31

Pop Rivet 3/16"

390402200

$0.26

32

Elastic Flange Nut M10

232501416

Unavailable

33

BALL JOINT, DOUBLE - Call your local BRP dealership

506151621

Unavailable

34

Washer

503175800

$3.26

35

Housing Half

506150400

Unavailable

36

Housing Bushing

506150500

Unavailable

37

Washer

503189157

$3.20

38

Hex. Screw M8 X 70

207087044

Unavailable

39

Hex. Flange Elastic Nut M8

233281414

Unavailable

40

Hex. Screw M8 X 80

207088044

Unavailable

41

O-RING - Call your local BRP dealership

506151140

Unavailable

42

Main Tube

506151334

Unavailable

Main Tube | X

506151779

Unavailable

43

STEERING SHAFT SUPPORT - Call your local BRP dealership

506151330

Unavailable

44

Stopper Plate

506150600

Unavailable

45

Carriage Bolt M8 X 70

207787044

Unavailable

46

Hangledbar Extension

506151754

Unavailable

47

Steering Support

709400919

Unavailable

48

Stiffner

709400509

Unavailable

REINFORCEMENT - Call your local BRP dealership

506151547

Unavailable

49

Hex. Screw With Nylon M8 X 40

250000074

Unavailable

HEX. SCREW WITH NYLON M8 X 50 - Call your local BRP dealership

250000082

Unavailable

50

PIVOT SUPPORT - Call your local BRP dealership

506151536

Unavailable

51

Hex. Screw M8 X 20

207182044

$0.61

52

Flat Washer 8 mm

234081410

Unavailable

53

Hex. Flange Elastic Nut M8

233281414

Unavailable

54

Handlebar

506151667

Unavailable

HANDLE BAR - Call your local BRP dealership

506151782

Unavailable

55

Handle Grip

506152057

Unavailable

HANDLE GRIP - Call your local BRP dealership

506152150

Unavailable

56

Flat Washer

250200039

Unavailable

57

Short J-hook

506151837

Unavailable

58

Wedge Lock

506151839

Unavailable

59

HEX. SCREW M6 X 70 - Call your local BRP dealership

207067084

Unavailable

60

CAP - Call your local BRP dealership | Includes 29 to 30

506151660

Unavailable

61

Edge Clip

517302785

Unavailable

62

STEERING PAD - Call your local BRP dealership

506152522

Unavailable

63

Grease Fitting

408200700

Unavailable

64

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

65

Horn

549011291

$35.35
