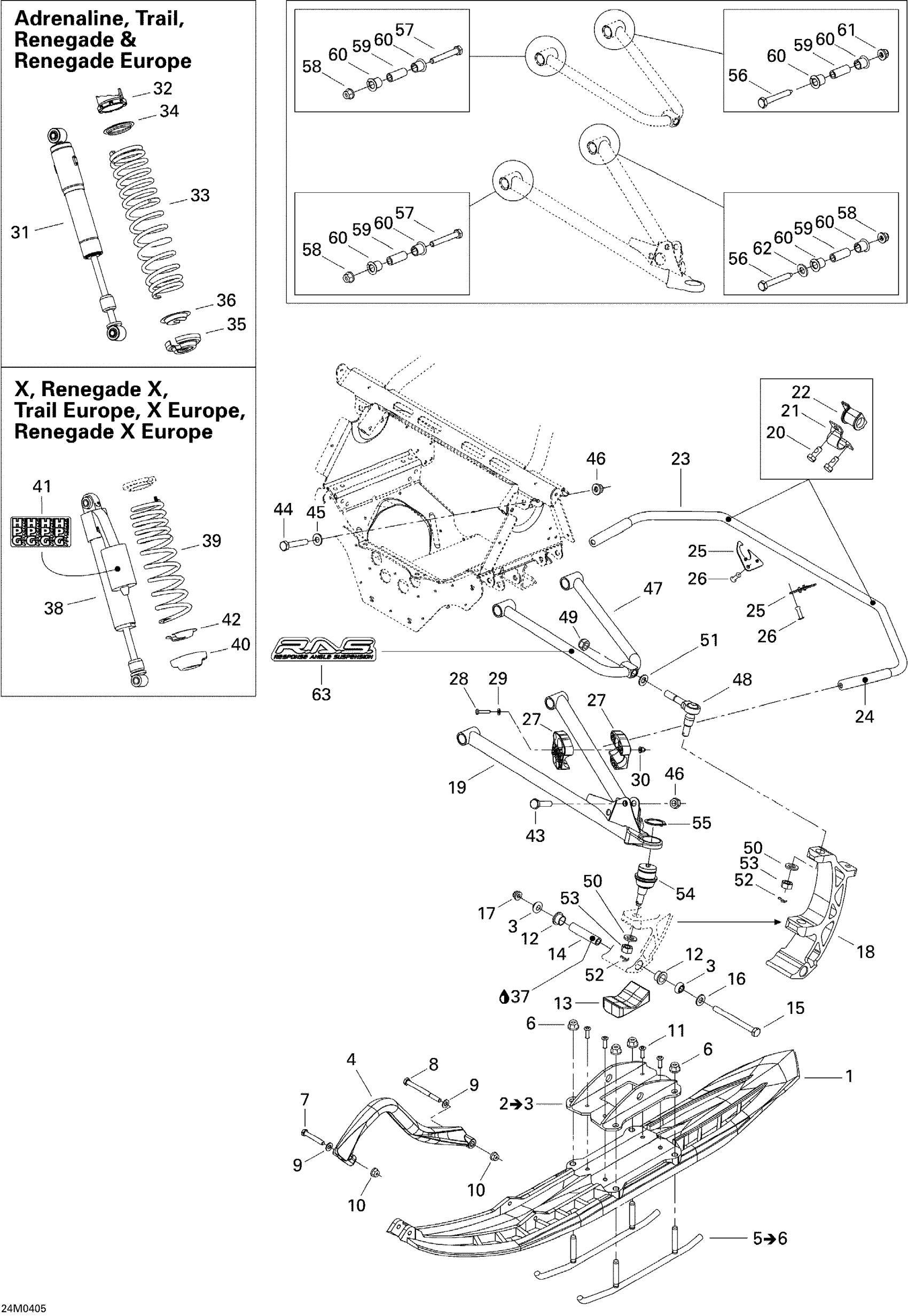

Ski-Doo MX Z 500SS Trail/Adrenaline, 2004 Front Suspension And Ski Diagram
#
1
Deep Black, Precision Ski | Sport
505070727
Unavailable
Precision Ski, Yellow
505070831
Unavailable
2
Bridge Ass'y | Includes 2 to 3
505070764
Unavailable
3
BUSHING - Call your local BRP dealership
505070001
Unavailable
4
Handle Kit, Yellow
860506400
Unavailable
Black, Handle
505070963
Unavailable
5
Lisses *Carbides | Includes 5 to 6 This part replaces 860504900.
860200148
Unavailable
7
Hex. Screw M8 X 50
207085044
Unavailable
9
Flat Washer 8 mm
234081410
Unavailable
10
Hex. Flange Elastic Nut M8
233281414
Unavailable
11
RIVET_POP 1/4 - Call your local BRP dealership
293150090
Unavailable
12
Leg Bushing
505072690
Unavailable
13
Ski Stopper
505070671
Unavailable
14
Spacer
506133300
Unavailable
15
HEX. SCREW M10 X 110 - Call your local BRP dealership
250000001
Unavailable
16
Washer
732900049
Unavailable
17
Flange Nut M10
732610084
Unavailable
18
SKI LEG - Call your local BRP dealership
505071232
Unavailable
19
RH Lower Arm
505071290
Unavailable
LH Lower Arm
505071293
Unavailable
20
Hex. Screw With Nylon
250000118
Unavailable
21
CLAMP - Call your local BRP dealership
506095800
Unavailable
22
LH BUSHING - Call your local BRP dealership
505070664
Unavailable
RH BUSHING - Call your local BRP dealership
505070912
Unavailable
23
STABILISATOR - Call your local BRP dealership
505070948
Unavailable
24
STABILISATOR BOOT - Call your local BRP dealership
505071039
Unavailable
25
PLUG - Call your local BRP dealership
505071253
Unavailable
26
Pop Rivet 3/16"
293150103
Unavailable
27
RH SLIDER HALF - Call your local BRP dealership
505071268
Unavailable
LH SLIDER HALF - Call your local BRP dealership
505071269
Unavailable
28
HEX. SCREW M5 X 25 - Call your local BRP dealership
207152544
Unavailable
29
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
30
Hex. Flange Elastic Nut M5
233251414
Unavailable
31
Front Shock | GSX Ltd
505071224
Unavailable
Front Shock | Sport
505071202
Unavailable
Front Shock | GSX Ltd
505071224
Unavailable
Front Shock | Renegade Europe
505071435
Unavailable
32
Adjustment Cam
505073625
Unavailable
Adjustment Cam
505073625
Unavailable
Adjustment Cam
505073625
Unavailable
Adjustment Cam
505073625
Unavailable
33
Spring
505071257
Unavailable
34
Spring Guide
503191872
Unavailable
Spring Guide
503187500
Unavailable
Spring Guide
503191872
Unavailable
Spring Guide
503191872
Unavailable
36
Cap
706200785
Unavailable
Cap
706200785
Unavailable
Cap
706200785
Unavailable
37
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
38
RH FRONT SHOCK - Call your local BRP dealership | X
505071301
Unavailable
RH Front Shock | Trail Europe, X Europe & Renegade X Europe
505071309
Unavailable
LH Front Shock | X
505071300
Unavailable
LH Front Shock | Trail Europe, X Europe & Renegade X Europe
505071308
Unavailable
39
SPRING - Call your local BRP dealership | X, Adrenaline Europe, Trail Europe, X Europe
505071388
Unavailable
41
Shock Decal
516000183
Unavailable
42
Cap
706200785
Unavailable
44
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
45
Washer
732900049
Unavailable
47
Upper Arm
505071276
Unavailable
49
Hex. Flange Elastic Nut M12
250000047
Unavailable
51
Washer
503189276
Unavailable
52
Cotter Pin
211400017
Unavailable
53
Hex. Castellated Nut M12
232221414
Unavailable
56
Cone Screw M10 X 75
250000114
Unavailable
57
Hex. Screw M10 X 70
207007044
Unavailable
59
Bushing
505070567
Unavailable
60
Arm Bushing
505070566
Unavailable
62
Washer
503189564
Unavailable
63
R.A.S. Suspension Decal
516001704
Unavailable
