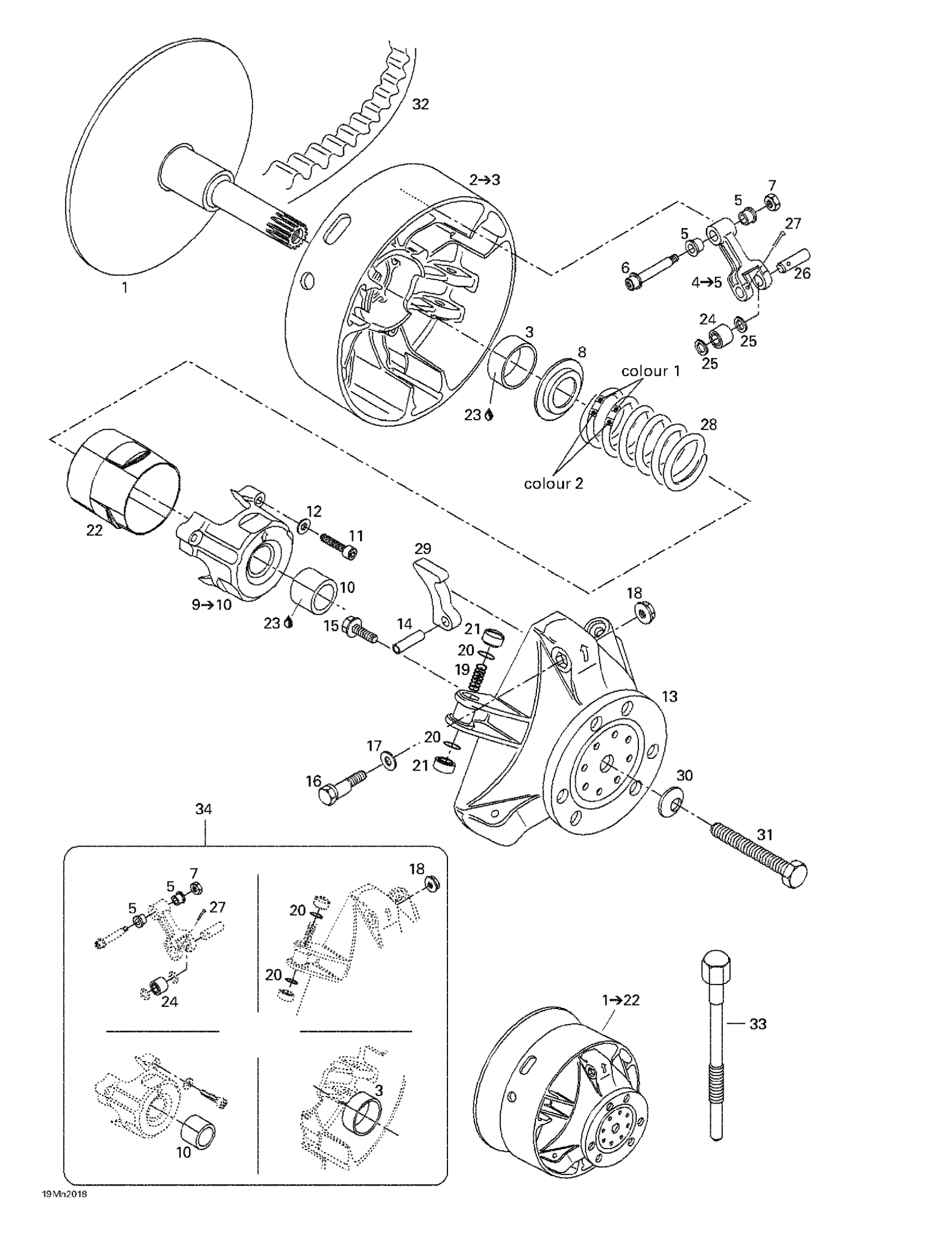

Ski-Doo MX Z 500 SB (black), 2000 Drive Pulley Diagram
#
Description
Price
1
Drive Pulley Ass'y | Includes 1 - 23.
417222283
Unavailable
1
Fixed Flange
417222411
Unavailable
2
OUTER HALF ASS'Y - Call your local BRP dealership | Includes 2 - 3.
417222049
Unavailable
3
Bushing
417004201
Unavailable
4
LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.
417003801
Unavailable
5
Bushing
417004305
Unavailable
6
SCREW ASSY - Call your local BRP dealership | Includes 12 to 13
417004800
Unavailable
7
Elastic Stop Nut M6
232561414
Unavailable
8
Spring Seat
417222044
Unavailable
9
Spring Cover Ass'y | Includes 9 - 10.
417222298
Unavailable
10
Bushing
417004501
Unavailable
11
Socket Head Screw M6 X 40
250000038
Unavailable
12
WASHER - Call your local BRP dealership
420245370
Unavailable
13
GOVERNOR CUP ASSY - Call your local BRP dealership
417222081
Unavailable
14
Pin M8 X 24
732804009
Unavailable
15
HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership
210361890
Unavailable
16
CALIBRATION SCREW - Call your local BRP dealership
417222955
Unavailable
18
Hex. Flange Nut M6
233061414
Unavailable
19
Spring
417005700
Unavailable
22
Guard
417222176
Unavailable
26
Pin
417004308
Unavailable
28
SPRING (GREEN/BLUE) - Call your local BRP dealership
414768200
Unavailable
29
Ramp 281 | Formula Deluxe 500. Formula Deluxe 600.
417005281
Unavailable
Ramp 298 | Formula Deluxe 700.
417222271
Unavailable
30
Spring Washer 14 mm
250200006
Unavailable
32
Drive Belt
414860700
Unavailable
Drive Belt | Formula Deluxe 700.
417300067
Unavailable
33
Puller This part replaces 529022400.
529000064
Unavailable
34
Clutch Repair Kit
417006100
Unavailable
