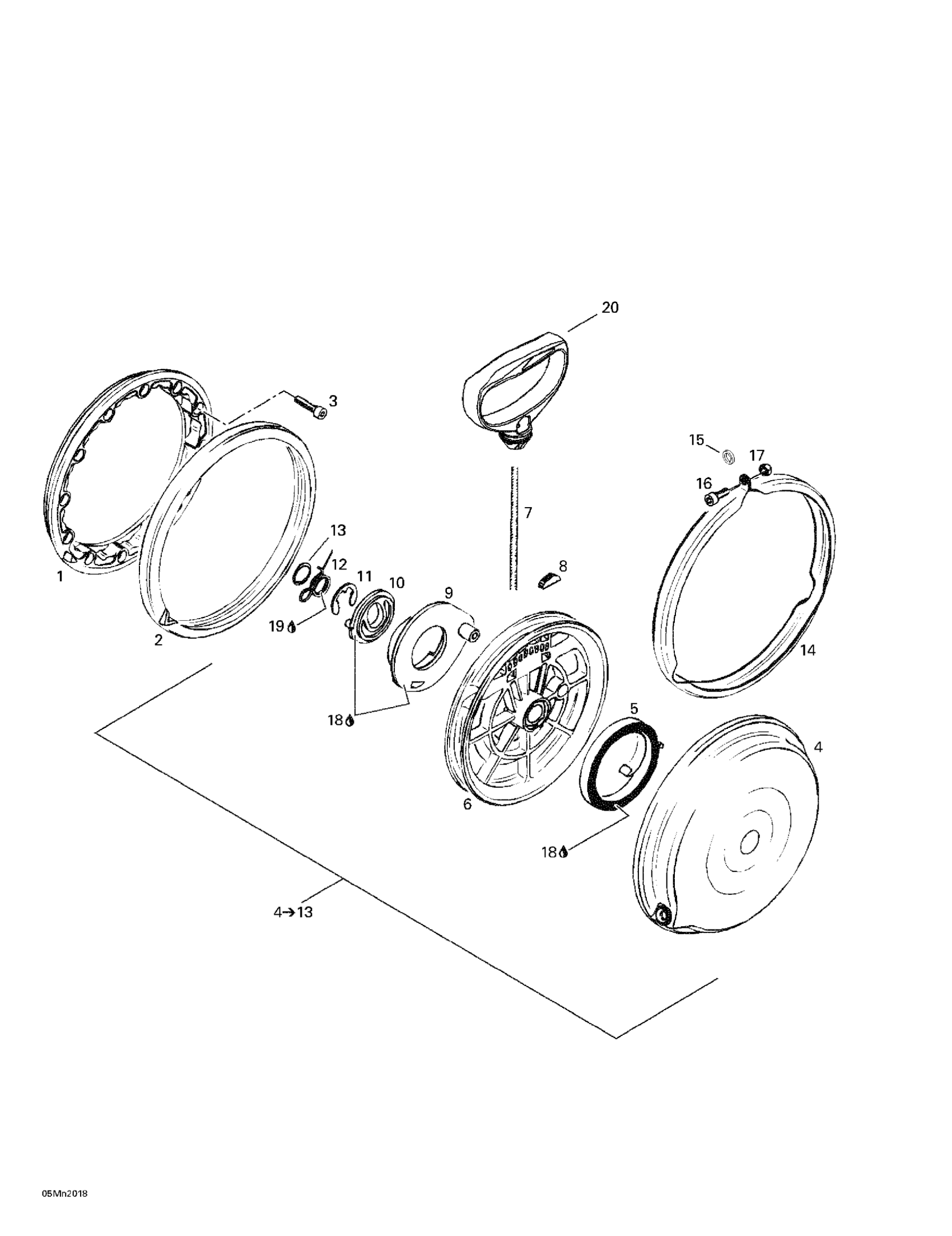

Ski-Doo MX Z 500 SB (black), 2000 Rewind Starter Diagram

#

Description
Price

1

Connecting Flange | Skandic 600.

420810860

Unavailable

2

DAMPER RING - Call your local BRP dealership | Skandic 600.

420860950

Unavailable

3

Socket Head Screw M6 X 25

205062544

$0.88

4

Demarreur *Rewind Starter | MX-Z 600. MX-Z 700. This part replaces 420810876.

420887448

$264.58

4

Demarreur *Rewind Starter | MX-Z 600. MX-Z 700. This part replaces 420810876.

420887448

$264.58

5

Rewind Spring

420939115

$25.32

6

ROPE SHEAVE - Call your local BRP dealership | MX-Z 700.

420852284

Unavailable

7

Was 412500100 Rope-Starter

219704403

$10.15

8

Key Clamp

420852070

$3.50

9

Pawl

420852296

$19.20

10

PAWL LOCK - Call your local BRP dealership

420852302

Unavailable

11

CIRCLIP - Call your local BRP dealership

420845300

Unavailable

12

Pawl Spring

420938986

$7.05

13

LOCK RING - Call your local BRP dealership

420945770

Unavailable

14

Clamp | Skandic 600.

420851330

Unavailable

15

WASHER-DISTANCE 6.7X14X3 - Call your local BRP dealership | Skandic 600.

420944310

Unavailable

16

Socket Head Screw M6 X 20

205062044

$1.07

Socket Head Screw M6 x 16

420241237

$1.85

17

Elastic Stop Nut M6

232561414

$1.55

18

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

19

Molykote G-N, 50 g

420297433

$22.72

20

Starter Grip

572084400

$14.54
