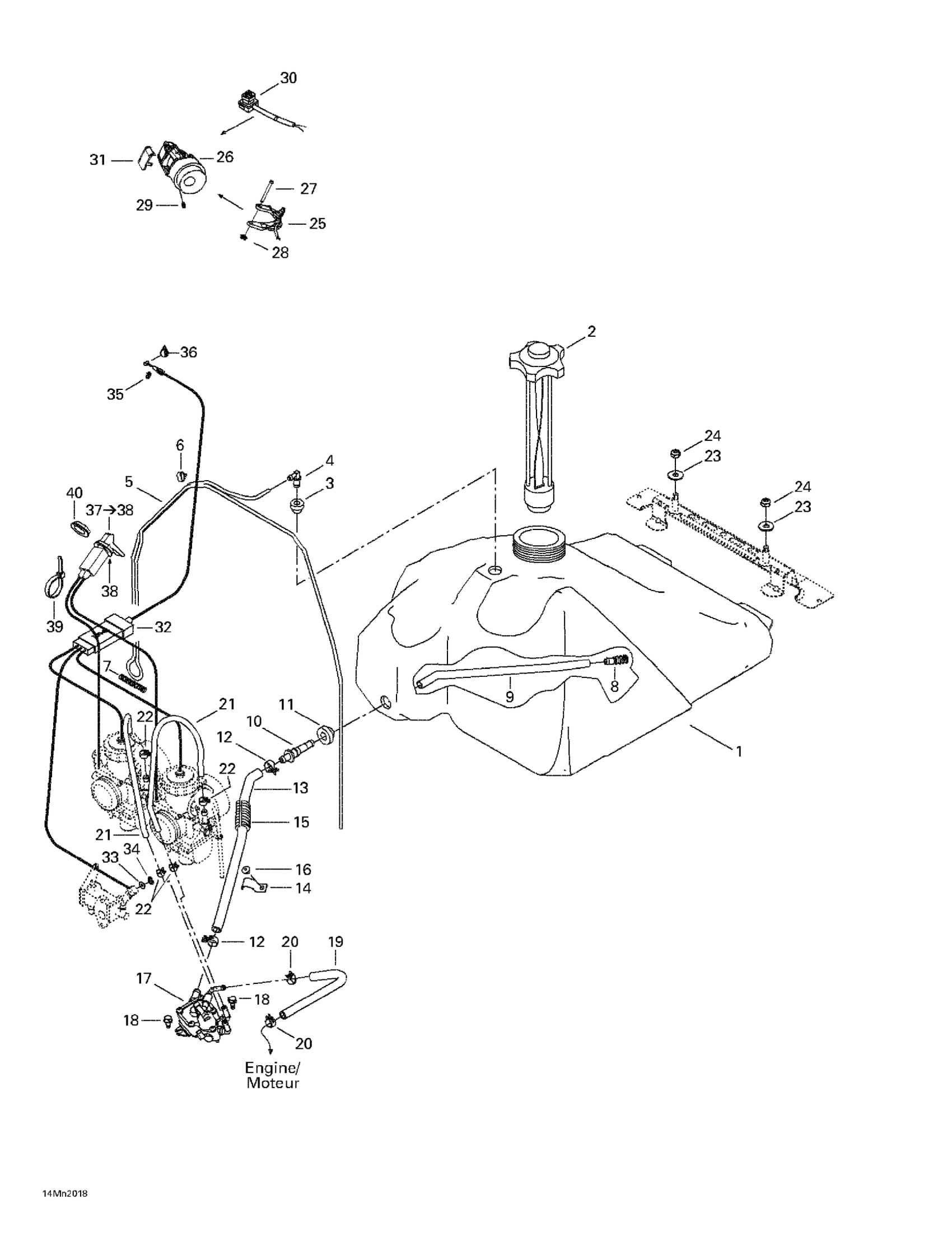

Ski-Doo MX Z 500 SB (black), 2000 Fuel System Diagram
#
Description
Price
1
Fuel Tank
513032987
Unavailable
5
Was 415080100 Fuel Line Primer 3,2mm
219704409
Unavailable
6
TUBE CLAMP - Call your local BRP dealership
513032923
Unavailable
7
SPRING - Call your local BRP dealership
414818200
Unavailable
10
Male Connector
414872700
Unavailable
11
Grommet | Europe
707800347
Unavailable
12
UNIVERSAL SPRING CLAMP - Call your local BRP dealership
513032979
Unavailable
15
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
16
Pop Rivet 3/16"
390406500
Unavailable
17
Fuel Pump | MX-Z 500.
403901800
Unavailable
18
HEX. SCREW M6 X 12 - Call your local BRP dealership
210361280
Unavailable
19
Hose
219704549
Unavailable
21
Tube
415117800
Unavailable
22
Spring Clamp
414420700
Unavailable
24
Hex. Elastic Stop Nut M8
232581414
Unavailable
25
Handle Ass'y 38 mm | MX-Z 500.
512059153
Unavailable
Handle Ass'y 40 mm | MX Z 700. MX Z 700 SB. MX Z 700 SB (Black). MX Z 700 SB Millennium Edition.
512059172
Unavailable
26
Throttle Handle Housing
572100900
Unavailable
28
Circlip | Model-RS
414439000
Unavailable
30
Kill Switch
515175410
Unavailable
31
Switch Cover
572100901
Unavailable
32
Throttle Cable | Formula Deluxe 500.
512059111
Unavailable
THROTTLE CABLE - Call your local BRP dealership
512059188
Unavailable
35
Circlip
414274500
Unavailable
36
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
37
Choke Cable | Includes 12 - 13. Formula Deluxe 500.
512059203
Unavailable
38
Lock Washer, Interior Teeth
394103300
Unavailable
40
PLASTIC NUT - Call your local BRP dealership
512059094
Unavailable
