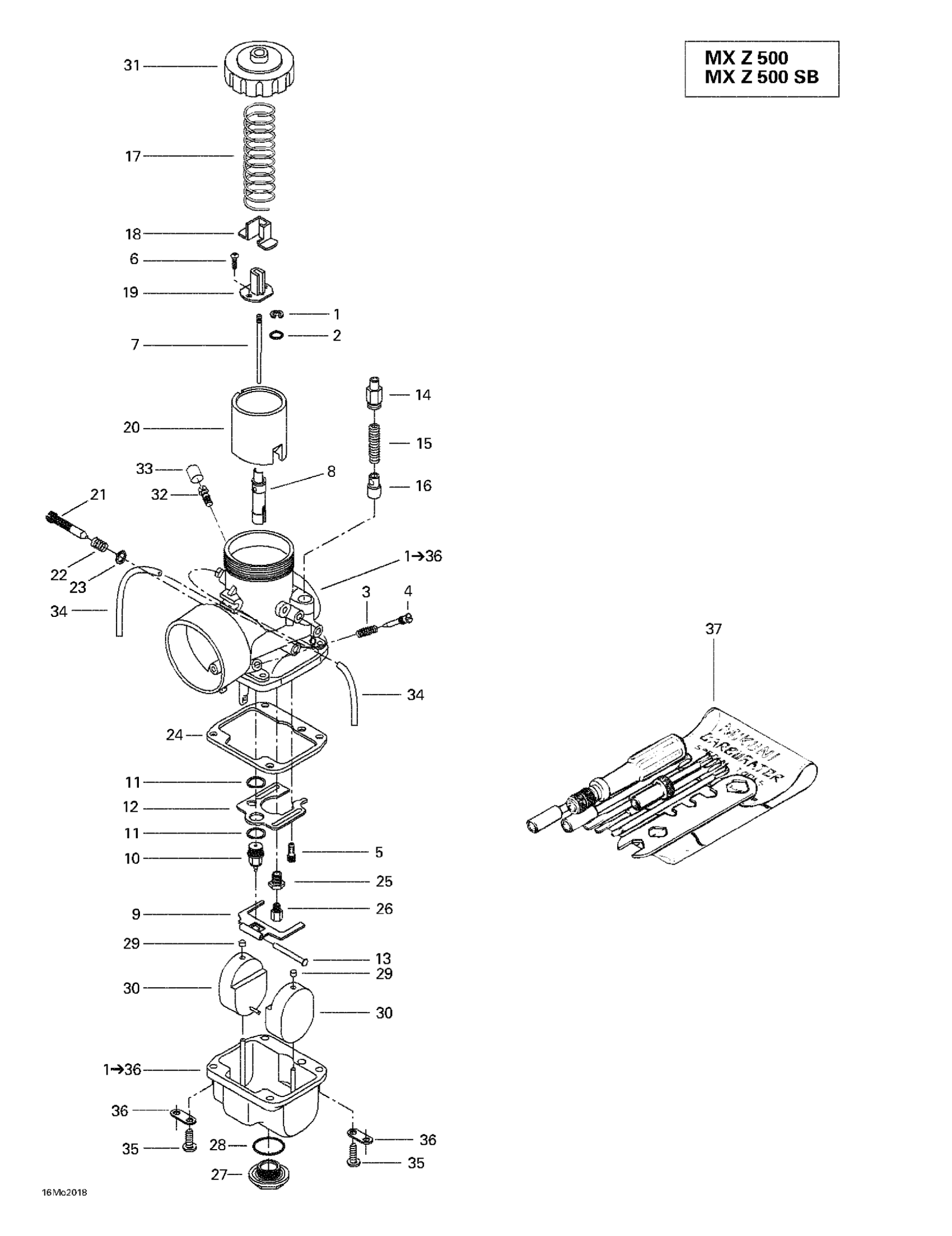

Ski-Doo MX Z 500 SB (black), 2000 Carburetors Diagram

#

Description
Price

1

VM 38-429 Carburetor | Formula Deluxe 500.

403138581

Unavailable

1

E-Ring

404152400

$6.36

2

Packing

404117000

$3.31

3

SPRING - Call your local BRP dealership

404139800

Unavailable

4

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

5

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

6

Screw With Washer

404121300

$4.24

7

Needle J8-6DEY10 | Formula Deluxe 500.

404161884

Unavailable

8

NEEDLE JET 480-P-8 - Call your local BRP dealership | Formula Deluxe 500.

404161700

Unavailable

9

Float Lever | Formula Deluxe 500.

404161823

Unavailable

10

Needle Valve 1.5

404147400

$43.25

11

Seat Washer

404101600

$3.21

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Lever Pin

404103300

$6.36

14

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

15

Spring | Formula Deluxe 500.

404161844

Unavailable

16

Plunger Ass'y | Formula Deluxe 500.

404161845

$23.85

17

Spring

404154800

$24.60

18

Cover

404122100

$17.88

19

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

20

Piston Valve CA 2.5

404131300

Unavailable

21

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

22

Spring

404101700

$4.24

23

Washer

270500018

Unavailable

24

GASKET - Call your local BRP dealership

404104700

Unavailable

25

Guide Screw

404105500

$32.06

26

Main Jet MJ 280

404100500

$7.90

27

Drain Plug Screw | Formula Deluxe 500.

404112900

Unavailable

28

Washer | Formula Deluxe 500.

404112800

Unavailable

29

Cap

404105800

$6.49

30

FLOAT - Call your local BRP dealership

404105400

Unavailable

31

COVER - Call your local BRP dealership

404105100

Unavailable

32

Nipple

404153400

$11.16

33

CAP - Call your local BRP dealership

404154900

Unavailable

34

HOSE - Call your local BRP dealership

404161880

Unavailable

35

Screw With Lock Washer

404102000

$3.19

36

PLATE - Call your local BRP dealership

404103000

Unavailable

37

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
