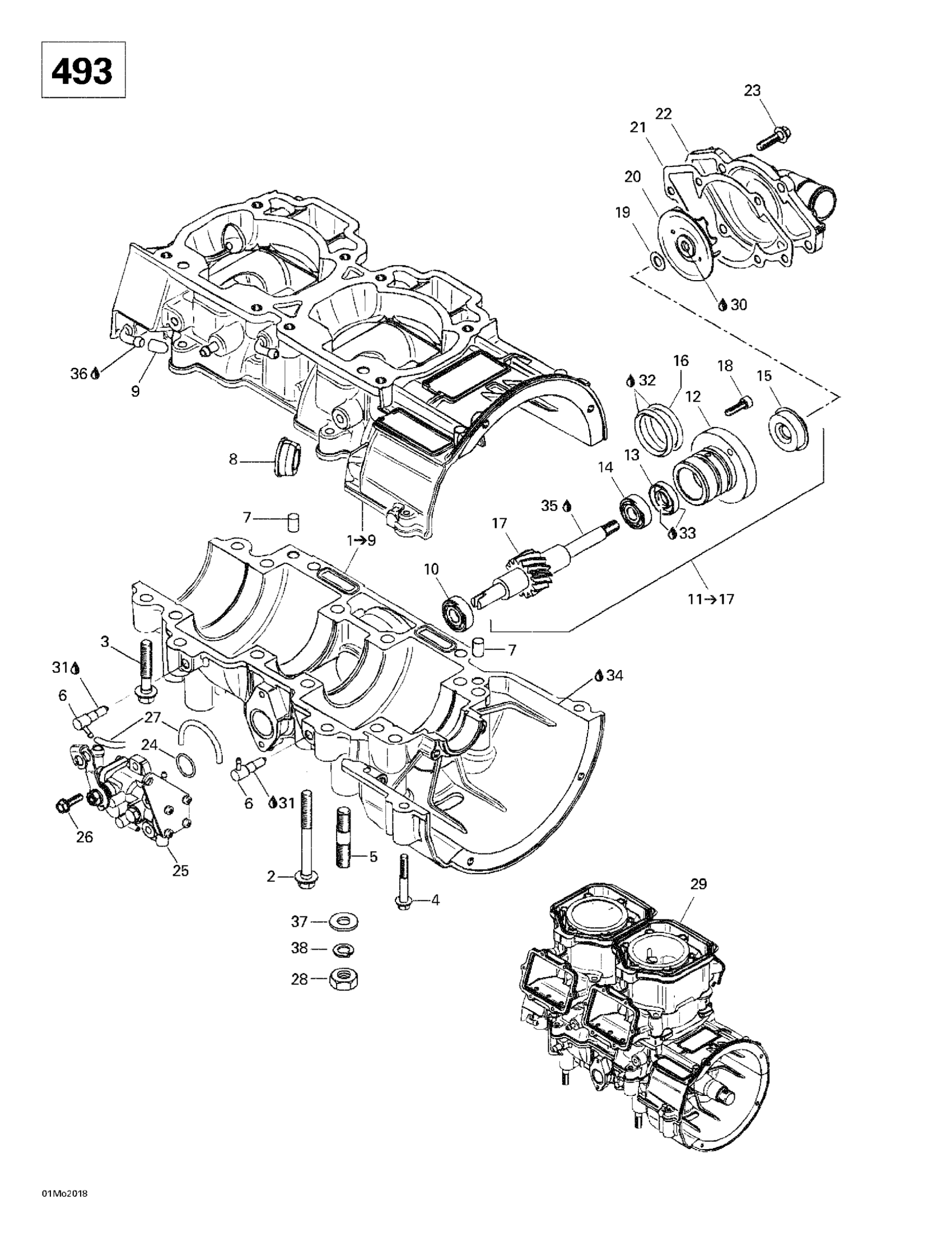

Ski-Doo MX Z 500 SB (black), 2000 Crankcase, Water Pump And Oil Pump Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 - 9. Formula Deluxe 600.

420888208

Unavailable

2

Hex. Collar Screw M8 x 75 | Formula Deluxe 600.

420640831

Unavailable

3

Hex. Collar Screw M8 x 45

420640436

Unavailable

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

Unavailable

5

Stud M10 X 23

420941644

Unavailable

6

Check Valve

420956511

$28.57

7

Center Pin 8 X 12

420632010

Unavailable

8

Cable Grommet

420860965

$13.58

9

Cap

420960770

$4.00

10

Ball Bearing

420232100

Unavailable

11

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$342.28

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Oil Seal

420230195

$12.65

14

Ball Bearing

420232100

Unavailable

15

Rotary Seal

420650371

Unavailable

16

O-Ring

420950890

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Allen Screw M5 x 16

420840514

Unavailable

19

Thrust Washer

420227945

$3.86

20

Water Impeller

420222505

$14.92

21

Gasket This part replaces 420931810.

420931811

Unavailable

22

Water Pump Housing

420922630

$59.20

23

Hex. Screw M6 X 25

420240034

$1.56

24

O-Ring

293300041

$7.05

25

Oil Pump Ass’Y, 600

420888260

Unavailable

26

Taptite Screw M5 X 16

420941928

Unavailable

27

Oil Hose 1500Mm Long

219704404

Unavailable

28

Hex. Nut M10 X 1.5

232006414

$1.11

29

Short Block Ass'y | MX Z 500. MX Z 500 SB (Black).

420049301

Unavailable

30

Loctite 243, 10 ml

293800060

$20.77

31

Sealant Loctite 648

219703000

Unavailable

32

Dow Corning 111, 150 g

413707000

$57.82

33

Petamo Grease, GHY133N, 400 g

420899271

Unavailable

34

Sealing Compound Loctite 5366 310Ml

420297907

Unavailable

35

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable

36

Isoflex Grease, TOPAS NB52, 50 g

293550021

Unavailable

37

Flat Washer 10 mm

234001410

Unavailable

38

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable
