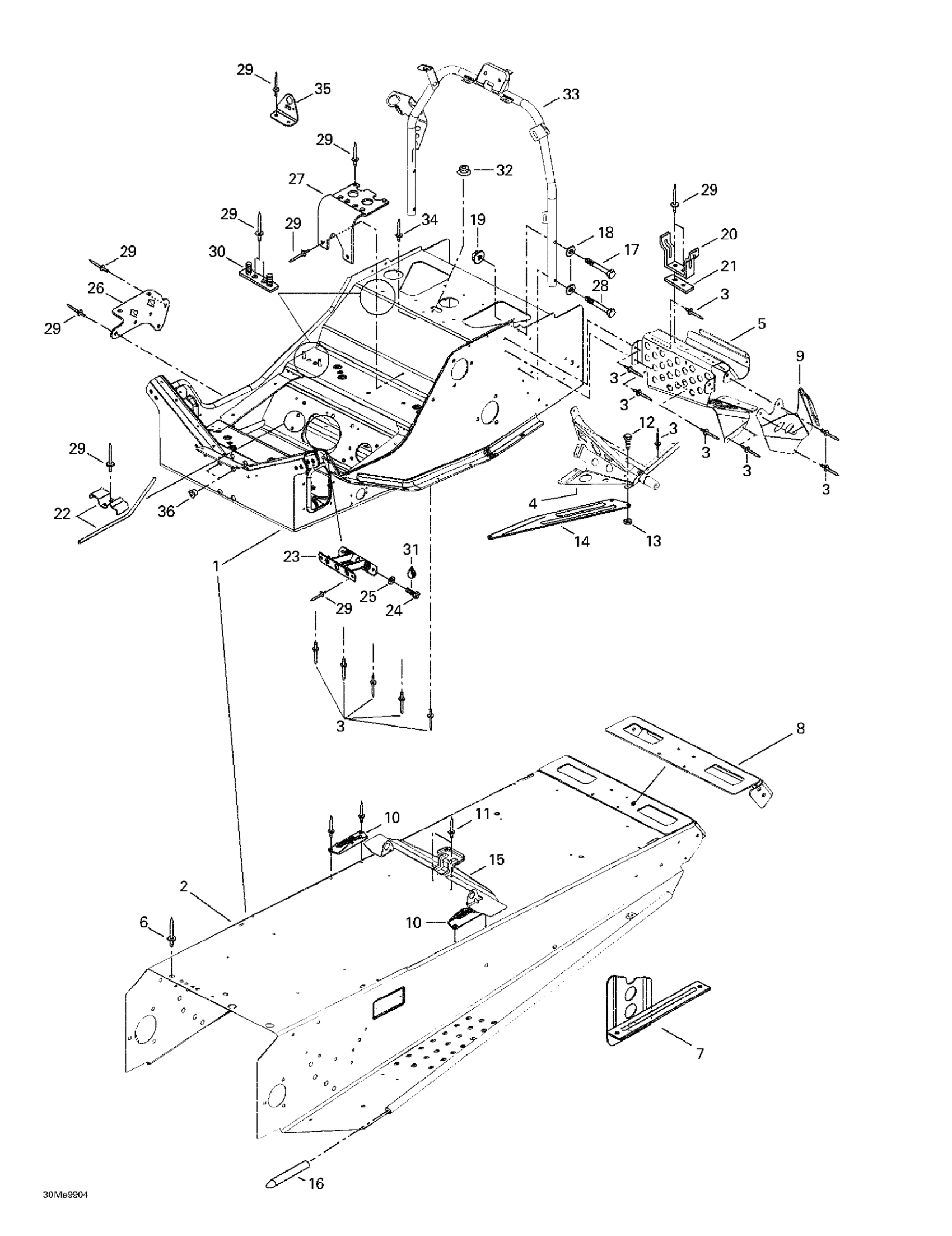

Ski-Doo MX Z 500/670 HO, 1999 Frame And Accessories Diagram
#
Description
Price
1
Frame Ass'y | Includes 1 - 16.
518321633
Unavailable
2
Tunnel
518321661
Unavailable
RH Footrest Support
518320506
Unavailable
5
RH Front Footrest
518321417
Unavailable
LH Front Footrest
518321418
Unavailable
6
Pop Rivet 3/16"
390402300
Unavailable
7
Rear Bracket L.H
518321535
Unavailable
Rear Bracket R.H
518321534
Unavailable
8
Cap-End
518321301
Unavailable
9
Upper Plate L.H
518308729
Unavailable
Upper Plate R.H
518308730
Unavailable
10
RH Tank Bracket
518304747
Unavailable
LH Tank Bracket
518304748
Unavailable
11
Pop Rivet 3/16"
390402400
Unavailable
12
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
13
Hex. Flange Elastic Nut M5
233251414
Unavailable
14
RH Reinforcement Plate
518316709
Unavailable
LH Reinforcement. Plate
518316710
Unavailable
15
Seat Bracket
518317506
Unavailable
16
FOOTREST REINFORCEMENT - Call your local BRP dealership
518304746
Unavailable
18
Flat Washer 6 mm
234061410
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Rope Guide | MX Z 500.
518315100
Unavailable
Rope Guide | MX Z 670 HO.
518316712
Unavailable
23
Reinf. Plate
518304741
Unavailable
25
Lock Washer 8 mm
234181401
Unavailable
26
Muffler Support | Formula DLX 500 F.
518206300
Unavailable
Muffler Support | Formula DLX 500 F.
518206300
Unavailable
27
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
30
Support Plate
518315300
Unavailable
31
Loctite 271, 10 ml
293800005
Unavailable
33
Handle Steering Support
518321428
Unavailable
34
Pop Rivet 3/16"
390402400
Unavailable
35
Valve Bracket | MX Z 670 HO.
518310206
Unavailable
36
Insert
293450166
Unavailable
