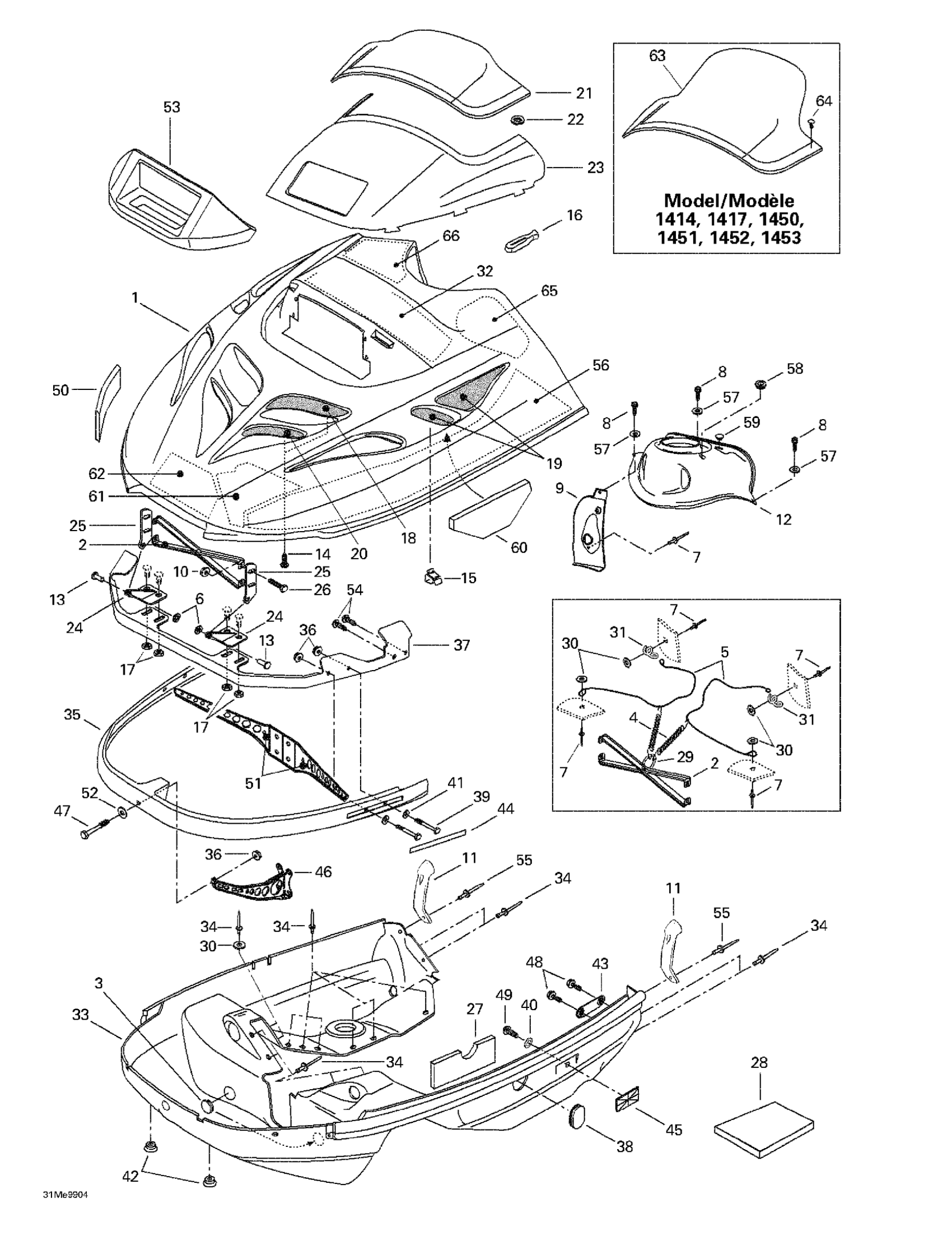

Ski-Doo MX Z 500/670 HO, 1999 Cab, Console Diagram
#
1
Cab (Yellow) | MX Z 380 F.
517302201
Unavailable
2
Hood Reinforcement
517278100
Unavailable
3
Rubber Cover
570041600
Unavailable
4
Spring
414763300
Unavailable
5
RETAINER CABLE - Call your local BRP dealership
415093900
Unavailable
9
Handle Dash | MX Z 380 F.
572052101
Unavailable
10
Hex. Flange Elastic Nut M5
233251414
Unavailable
11
Hood Latch
570027100
Unavailable
12
Dash-Switch | Formula S.
517302160
Unavailable
Switch Dash | MX Z 670 HO.
517302161
Unavailable
13
FLAT HEAD STEEL RIVET - Call your local BRP dealership
390906200
Unavailable
14
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership
732601210
Unavailable
15
Edge Clip
517302785
Unavailable
16
Windshield Latch
570023800
Unavailable
17
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
18
RH Upper Grill Ass'y
517298400
Unavailable
LH Upper Grill Ass'y
517298500
Unavailable
19
Side Grill (Black)
517280200
Unavailable
RH Side Grill (Europe) | Formula Z 670.
517301800
Unavailable
LH Side Grill (Europe) | Formula Z 670.
517301802
Unavailable
20
RH Lower Grill
517298600
Unavailable
LH Lower Grill
517298700
Unavailable
21
WINDSHIELD LOW - Call your local BRP dealership
414795900
Unavailable
22
Push Nut
732610072
Unavailable
23
Windshield Support
572101800
Unavailable
24
Welded Lower Hinge
517289900
Unavailable
25
UPPPER HINGE - Call your local BRP dealership
517261100
Unavailable
26
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
27
Foam
415028100
Unavailable
28
Acoustic Foam
414632400
Unavailable
Acoustic Foam
414631900
Unavailable
29
RING - Call your local BRP dealership
415058300
Unavailable
30
Washer
517124300
Unavailable
31
Bracket
517262800
Unavailable
32
Center Foam
414985100
Unavailable
33
Bottom Pan | MX Z 500.
572076216
Unavailable
Bottom Pan | MX Z 670 HO.
502006534
Unavailable
34
Pop Rivet 3/16"
390906800
Unavailable
35
Front Bumper
517265400
Unavailable
36
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
37
Hinge Bracket
517296600
Unavailable
38
Bottom Pan Cap (Yellow) | MX Z 380 F.
570053704
Unavailable
39
Hex. Screw M6 X 30
207063044
Unavailable
40
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership
224151101
Unavailable
42
CAP - Call your local BRP dealership
572072100
Unavailable
43
Side Bracket
517267100
Unavailable
45
REFLECTOR, AMBER - Call your local BRP dealership
414510200
Unavailable
46
Front Support
517294500
Unavailable
49
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208651041
Unavailable
50
Reflection Sheet (In Hood) | Formula Deluxe 583. Formula Deluxe 670.
415049100
Unavailable
51
LH Support
517295000
Unavailable
RH Support
517295100
Unavailable
52
Flat Washer
224061201
Unavailable
53
Sealing Foam
415077300
Unavailable
54
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
55
Pop Rivet 3/16"
390906800
Unavailable
56
LH Lower Foam
414883500
Unavailable
RH Lower Foam
415048700
Unavailable
57
Washer | DS 650 X
391301600
Unavailable
58
Bumper Plug, Black
291000339
Unavailable
59
Cap | MX Z 670 HO.
572096200
Unavailable
60
RH Side Foam (Europe) | Formula Z 670.
415120000
Unavailable
LH Side Foam (Europe) | Formula Z 670.
415120100
Unavailable
61
RH Front Foam (Europe) | Formula Z 670.
415120200
Unavailable
LHFront Foam (Europe) | Formula Z 670.
415120300
Unavailable
62
Front Foam (Europe) | Formula Z 670.
415120400
Unavailable
63
Medium Windshield
415050500
Unavailable
65
R.H Rear Foam
414883800
Unavailable
LH Rear Foam
414883700
Unavailable
66
Upper Foam
414975000
Unavailable
