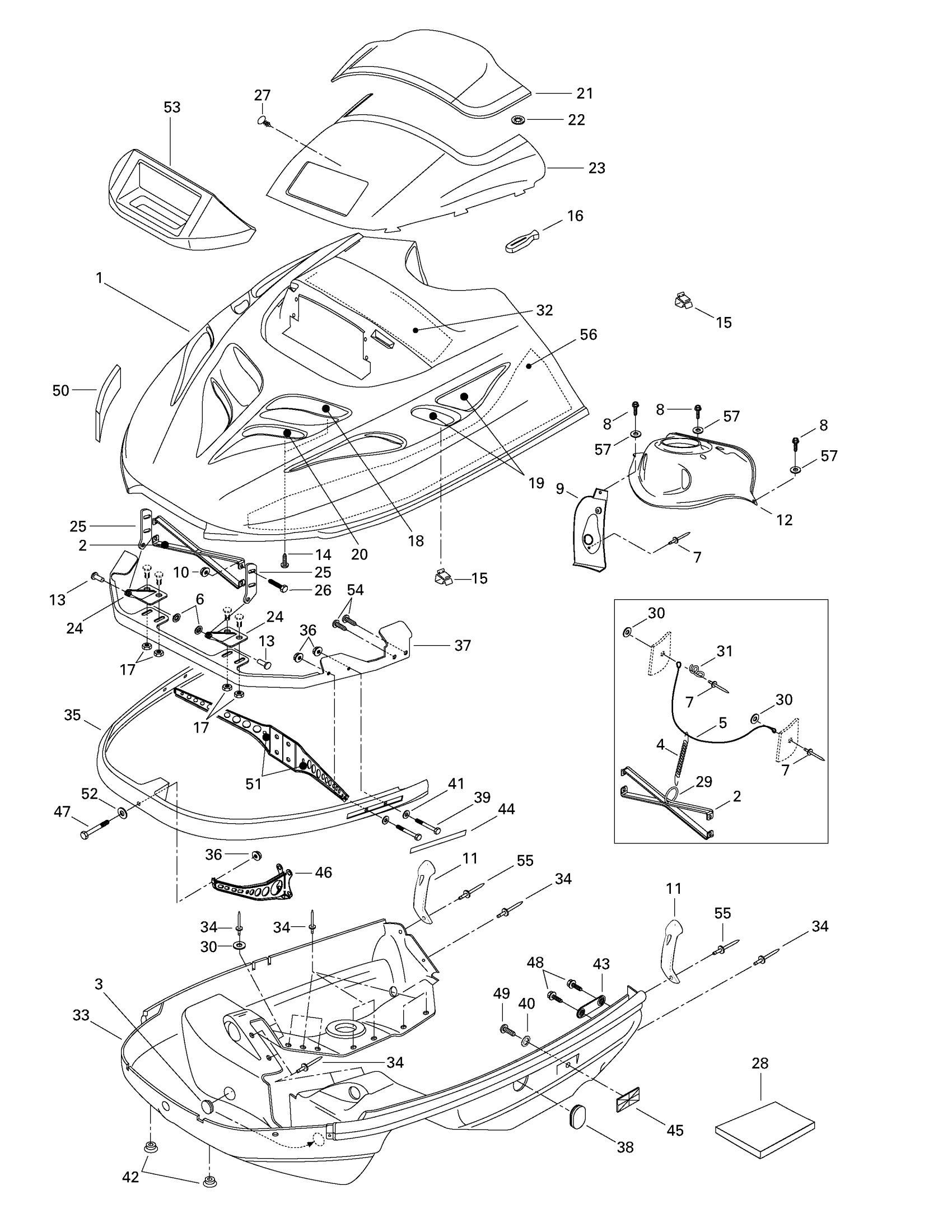

Ski-Doo MX Z 500/583/670, 1998 Cab, Console Diagram

#

Description
Price

1

Cab (Yellow)

572077183

Unavailable

2

Hood Reinforcement

517278100

Unavailable

3

Rubber Cover

570041600

Unavailable

4

Spring

414763300

Unavailable

5

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

6

Push Nut

389804300

$0.43

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

8

Forming Screw M5 x 16

250000676

$0.83

9

Handle Dash | MX Z 380 F.

572052101

Unavailable

10

Hex. Flange Elastic Nut M5

233251414

Unavailable

11

Hood Latch

570027100

Unavailable

12

Dash-Switch

572052702

Unavailable

13

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

14

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

15

Clip

414227300

$1.45

16

Windshield Latch

570023800

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

RH Upper Grill

517298900

Unavailable

LH Upper Grill

517299000

Unavailable

19

Side Grill (Black)

517280200

Unavailable

RH Side Grill (Europe) | Formula Z 670.

517301800

Unavailable

LH Side Grill (Europe) | Formula Z 670.

517301802

Unavailable

20

RH Front Grill

517299100

Unavailable

LH Front Grill

517299200

Unavailable

21

Windshield Ass'y | Includes 21 - 23.

580661300

Unavailable

21

WINDSHIELD LOW - Call your local BRP dealership

414795900

Unavailable

22

Push Nut

732610072

Unavailable

23

Windshield Support

572101800

Unavailable

24

Welded Lower Hinge

517289900

Unavailable

25

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

26

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

27

Christmas Tree Anchorage

293730113

Unavailable

28

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

29

RING - Call your local BRP dealership

415058300

Unavailable

30

Washer

517124300

Unavailable

31

Bracket

517262800

Unavailable

32

Center Foam

414985100

Unavailable

33

Bottom Pan (Yellow)

572076211

Unavailable

Bottom Pan | MX Z 500.

572076216

Unavailable

34

Pop Rivet 3/16"

390906800

Unavailable

35

Front Bumper

517265400

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

37

Hinge Bracket

517296600

Unavailable

38

Bottom Pan Cap (Yellow) | MX Z 380 F.

570053704

Unavailable

39

Hex. Screw M6 X 30

207063044

Unavailable

40

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

41

Flat Washer

224061121

$0.44

42

CAP - Call your local BRP dealership

572072100

Unavailable

43

Side Bracket

517267100

Unavailable

44

Yellow, LH/RH Rear Reflector Kit

861805523

$25.35

45

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

46

Front Support

517294500

Unavailable

47

Hex. Screw M6 X 40

207064044

$1.48

48

Hex. Flange Screw M6 X 16

210261650

$1.22

49

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

50

Reflection Sheet (In Hood) | Formula Deluxe 583. Formula Deluxe 670.

415049100

Unavailable

51

LH Support

517295000

Unavailable

RH Support

517295100

Unavailable

52

Flat Washer

224061201

Unavailable

53

Sealing Foam

415077300

Unavailable

54

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

55

Pop Rivet 3/16"

390906800

Unavailable

56

LH Lower Foam

414883500

Unavailable

RH Lower Foam

415048700

Unavailable

57

Washer | DS 650 X

391301600

Unavailable
