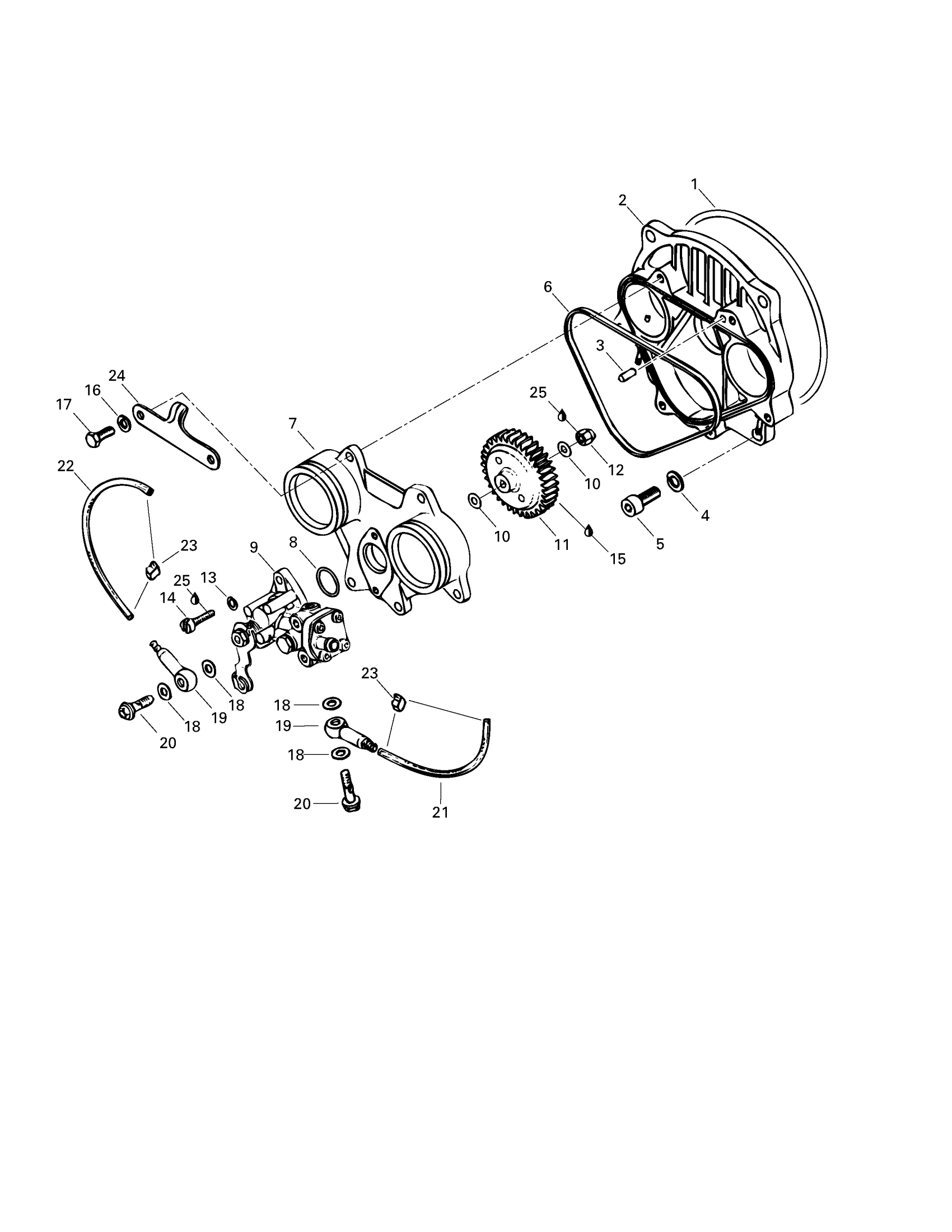

Ski-Doo MX Z 500/583/670, 1998 Oil Injection System Diagram
#
Description
Price
1
O-Ring
420831360
Unavailable
2
Rotary Valve Cover Ass'y | Includes 2 - 3.
420810486
Unavailable
3
Drive Pin 5 X 10
420929650
Unavailable
4
Washer-Lock Din.128
420945832
Unavailable
6
RUBBER RING - Call your local BRP dealership
420831707
Unavailable
7
Oil Pump Mounting Flange
420810490
Unavailable
8
O-Ring
420230370
Unavailable
9
Oil Pump Ass'y
420887930
Unavailable
Oil Pump Ass'y | Formula Z 583. Formula 583 Deluxe.
420887340
Unavailable
Oil Pump Ass'y | Formula Deluxe 583. Formula Deluxe 670.
420887936
Unavailable
10
FLAT WASHER - Call your local BRP dealership
420927945
Unavailable
11
Oil Pump Gear 41 Teeth
420935945
Unavailable
12
Elastic Stop Nut M6
232561414
Unavailable
13
Lock Washer
420945750
Unavailable
14
Cylindrical Slotted Screw M5 x 16
420240761
Unavailable
16
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
18
Sealing Washer
404146600
Unavailable
19
Valve Ass’Y
420956010
Unavailable
20
Banjo Bolt M6 X 16
404146800
Unavailable
21
Oil Hose 1500Mm Long
219704404
Unavailable
22
Oil Hose 1500Mm Long
219704404
Unavailable
23
Clamp
420853840
Unavailable
24
Plate (Intake Silencer)
420851340
Unavailable
