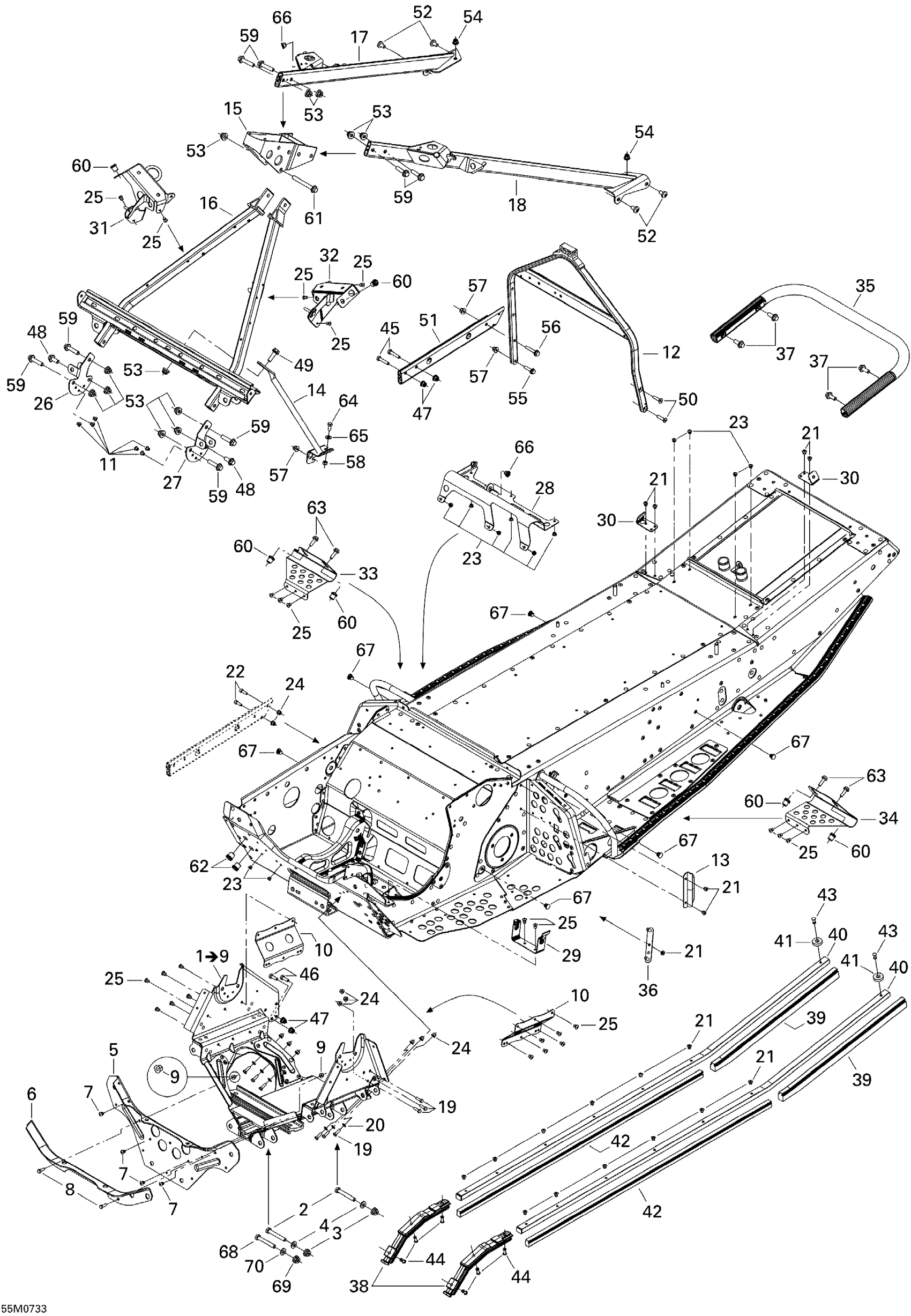

Ski-Doo MX Z 440X Racing, 2007 Frame and Components Diagram

#

Description
Price

1

Cross Member | Includes 1 to 9

518325438

Unavailable

2

Hex. Screw M8 X 55

207085544

$1.62

3

Hex. Flange Elastic Nut M8

233281414

Unavailable

4

Flat Washer 8 mm

234081410

Unavailable

5

FRONT PLATE - Call your local BRP dealership

518325422

Unavailable

6

Plate Reinforcement

518324107

Unavailable

7

Avex Rivet

390909100

$0.29

8

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

9

Hex. Flange Elastic Nut M5

233251414

Unavailable

10

CORNER REINFORCEMENT - Call your local BRP dealership

518324181

Unavailable

11

Pop Rivet 3/16"

390402200

$0.26

12

HANDLE SUPPORT - Call your local BRP dealership

518324505

Unavailable

13

CABLE PROTECTOR - Call your local BRP dealership

518317504

$4.77

14

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

15

BRACKET BLOCK - Call your local BRP dealership

518323854

Unavailable

16

UPPER CROSS MEMBER - Call your local BRP dealership

518324574

Unavailable

17

RH MEMBER - Call your local BRP dealership

518324182

Unavailable

18

LH Member

518324183

Unavailable

19

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

20

Flat Washer M5

234051410

Unavailable

21

Pop Rivet 3/16"

390402200

$0.26

22

Socket Screw M5 X 16

205051644

$2.18

23

Pop Rivet 3/16"

390402400

Unavailable

24

Hex. Flange Elastic Nut M5

233251414

Unavailable

25

Avex Rivet

390909200

Unavailable

26

RH SHOCK BRACKET - Call your local BRP dealership

518325014

Unavailable

27

LH SHOCK BRACKET - Call your local BRP dealership

518325015

Unavailable

28

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

29

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

$11.85

30

Trunk Bracket, Black

518323274

Unavailable

31

RH Console Support

518323535

Unavailable

32

LH Console Support

518323536

Unavailable

33

RH TOE HOLD - Call your local BRP dealership

518324391

Unavailable

34

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

35

REAR BUMPER - Call your local BRP dealership

518324465

Unavailable

36

TRUNK BRACKET, BLACK - Call your local BRP dealership

518323896

Unavailable

37

Hex. Screw M8 X 20

236282084

Unavailable

38

Front Protector

518324071

Unavailable

39

Protector

518325020

Unavailable

40

FRAME PROTECTOR - Call your local BRP dealership

518325016

Unavailable

41

WASHER - Call your local BRP dealership

510004418

Unavailable

42

Protector

518325017

Unavailable

43

Pop Rivet 3/16”

390407200

$0.66

44

Pop Rivet 3/16”

390410100

Unavailable

45

Hex. Screw M6 X 30

207063044

Unavailable

46

Hex. Screw M6 X 18

207161844

Unavailable

47

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

48

Hex. Flange Screw M8 X 20

207682044

Unavailable

49

Hex. Flange Screw M8 X 25

207682544

$0.90

50

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.38

51

RH Tunnel Stiffener

518324096

Unavailable

52

Pan Head Torx Screw M8 X 12

250000887

$1.56

53

Hex. Flange Elastic Nut M8

233281414

Unavailable

54

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

55

Hex. Flange Screw M6 X 25

207662544

Unavailable

56

Hex. Flange Screw M6 X 35

207663544

$0.74

57

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

58

Elastic Stop Nut M6

232561414

Unavailable

59

Hex. Flange Screw M8 X 35

207683544

$1.39

60

Insert

293450275

Unavailable

61

Hex. Flange Screw M8 X 70

207687044

Unavailable

62

Insert

293450166

Unavailable

63

Hex. Flange Screw M6 X 20

207662044

Unavailable

64

Hex. Screw M6 X 14

207161444

$0.48

65

Flat Washer

224061121

$0.44

66

Threaded Insert M6 X 1.0

250100242

Unavailable

67

Panel Fastener

518321954

Unavailable

68

Hex. Screw M8 X 55

207085544

$1.62

69

Hex. Flange Elastic Nut M8

233281414

Unavailable

70

Flat Washer 8 mm

234081410

Unavailable
