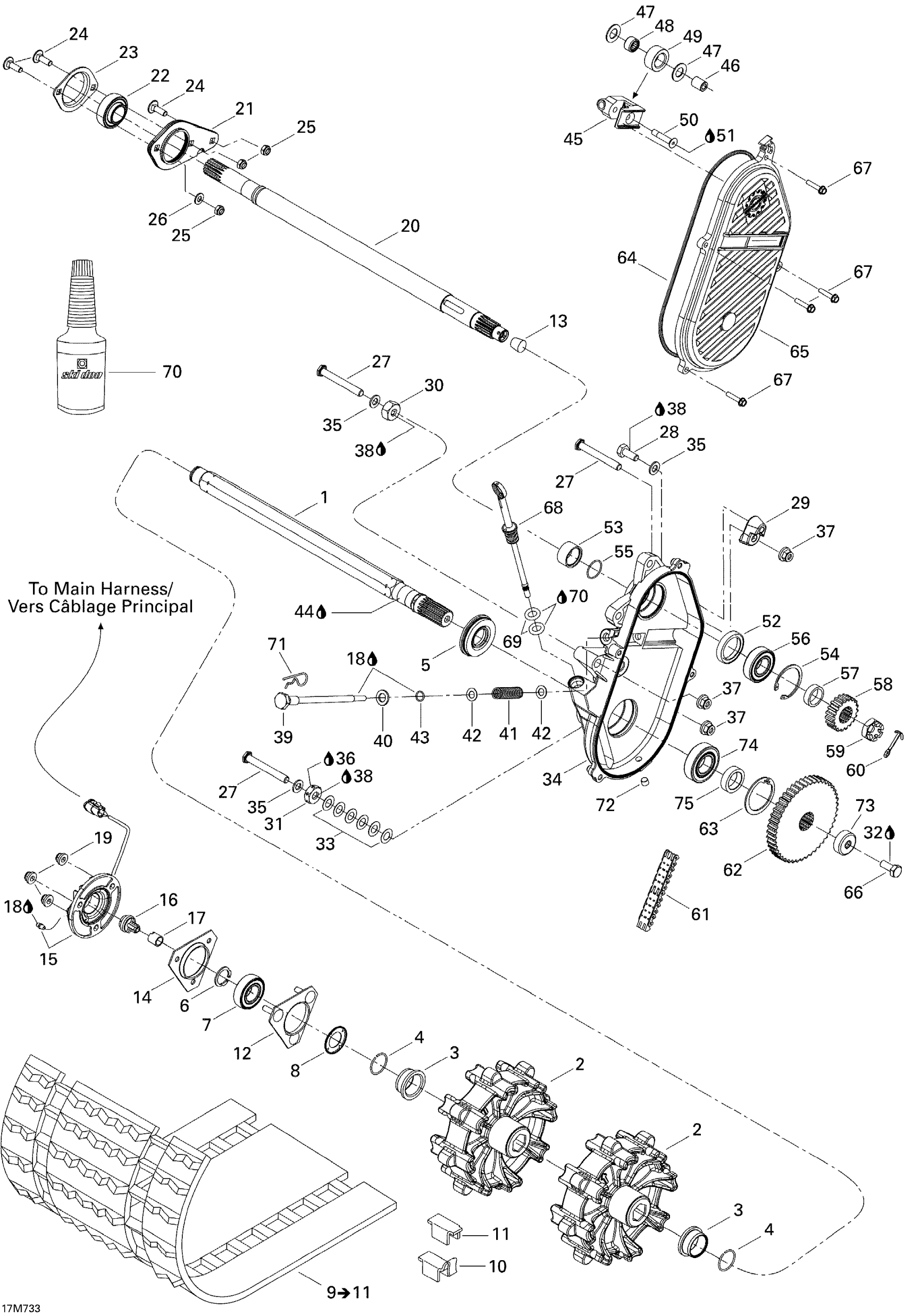

Ski-Doo MX Z 440X Racing, 2007 Drive System Diagram
#
1
Drive Axle
504152359
Unavailable
2
SPROCKET 8 TEETH - Call your local BRP dealership
504152552
Unavailable
3
RETAINER RING - Call your local BRP dealership
504152613
Unavailable
4
CIRCLIP - Call your local BRP dealership
504152194
Unavailable
5
Oil Seal Ass'y
504151918
Unavailable
6
CIRCLIP - Call your local BRP dealership
371910200
Unavailable
7
Ball Bearing
293350060
Unavailable
8
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
9
TRACK ASS'Y 15 X 120 X 1.75 - Call your local BRP dealership | Includes 56 to 58
504152883
Unavailable
11
Cleat
504152651
Unavailable
12
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
14
FLANGE - Call your local BRP dealership
501025000
Unavailable
15
Rotation Sensor
504152345
Unavailable
16
MAGNETIC ADAPTOR - Call your local BRP dealership
504152040
Unavailable
17
Adaptor
572097500
Unavailable
18
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
COUNTER SHAFT - Call your local BRP dealership
504152020
Unavailable
21
SPACER - Call your local BRP dealership
504151968
Unavailable
22
Ball Bearing Kit This part replaces 504152535.
415129555
Unavailable
23
BEARING HOUSING ASS'Y - Call your local BRP dealership
504153089
Unavailable
25
Hex. Elastic Stop Nut M8
232581414
Unavailable
26
Flat Washer 8 mm
234081410
Unavailable
27
HEX. SCREW M10 X 80 - Call your local BRP dealership
250000151
Unavailable
28
Hex. Screw M10 X 25
207102544
Unavailable
29
Spacer
504152252
Unavailable
30
Spacer
504083800
Unavailable
31
SPACER - Call your local BRP dealership
504152237
Unavailable
32
Loctite 271, 10 ml
293800005
Unavailable
33
WASHER - Call your local BRP dealership
504073700
Unavailable
34
CHAINCASE - Call your local BRP dealership | 550F X
504152482
Unavailable
36
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
39
Adjustment Screw
504151946
Unavailable
40
Washer | 7415/7416. 7417/7418.
503189148
Unavailable
41
SPRING - Call your local BRP dealership
504151945
Unavailable
42
Washer
503189564
Unavailable
43
O-RING - Call your local BRP dealership
504151954
Unavailable
44
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
45
Chain Tensionner
504152653
Unavailable
46
SPACER - Call your local BRP dealership
504080200
Unavailable
47
WASHER - Call your local BRP dealership
504080300
Unavailable
49
ROLLER - Call your local BRP dealership
414531300
Unavailable
50
SCREW - Call your local BRP dealership
732601144
Unavailable
51
Loctite 271, 10 ml
293800005
Unavailable
52
Oil Seal
293200158
Unavailable
53
SPACER - Call your local BRP dealership
507031500
Unavailable
54
CIRCLIP - Call your local BRP dealership
371901700
Unavailable
55
O-RING - Call your local BRP dealership
414876700
Unavailable
56
Ball Bearing
293350115
Unavailable
57
SHIM - Call your local BRP dealership
504152398
Unavailable
59
HEX. CASTLE NUT M20 X 1.5 - Call your local BRP dealership
250000012
Unavailable
60
PIN COTTER - Call your local BRP dealership
371006300
Unavailable
61
Drive Chain, 74 Links | Except Europe
504151857
Unavailable
62
SPROCKET 45 TEETH - Call your local BRP dealership
504152614
Unavailable
63
CIRCLIP, INTERIOR - Call your local BRP dealership
415064300
Unavailable
65
CHAINCASE COVER - Call your local BRP dealership
504152471
Unavailable
66
Hex. Flange Screw M10 X 25
207602544
Unavailable
68
FILLER CAP ASS'Y - Call your local BRP dealership
504151703
Unavailable
69
O-RING - Call your local BRP dealership
414969400
Unavailable
70
SYNTHETIC CHAINCASE OIL, 12 X 355 ML - Call your local BRP dealership
413803300
Unavailable
71
Hair Pin
414575600
Unavailable
72
Plug 1/8”-27
504151921
Unavailable
73
CAP - Call your local BRP dealership
504152480
Unavailable
74
BALL BEARING - Call your local BRP dealership
504152509
Unavailable
75
SHIM - Call your local BRP dealership
504152491
Unavailable
