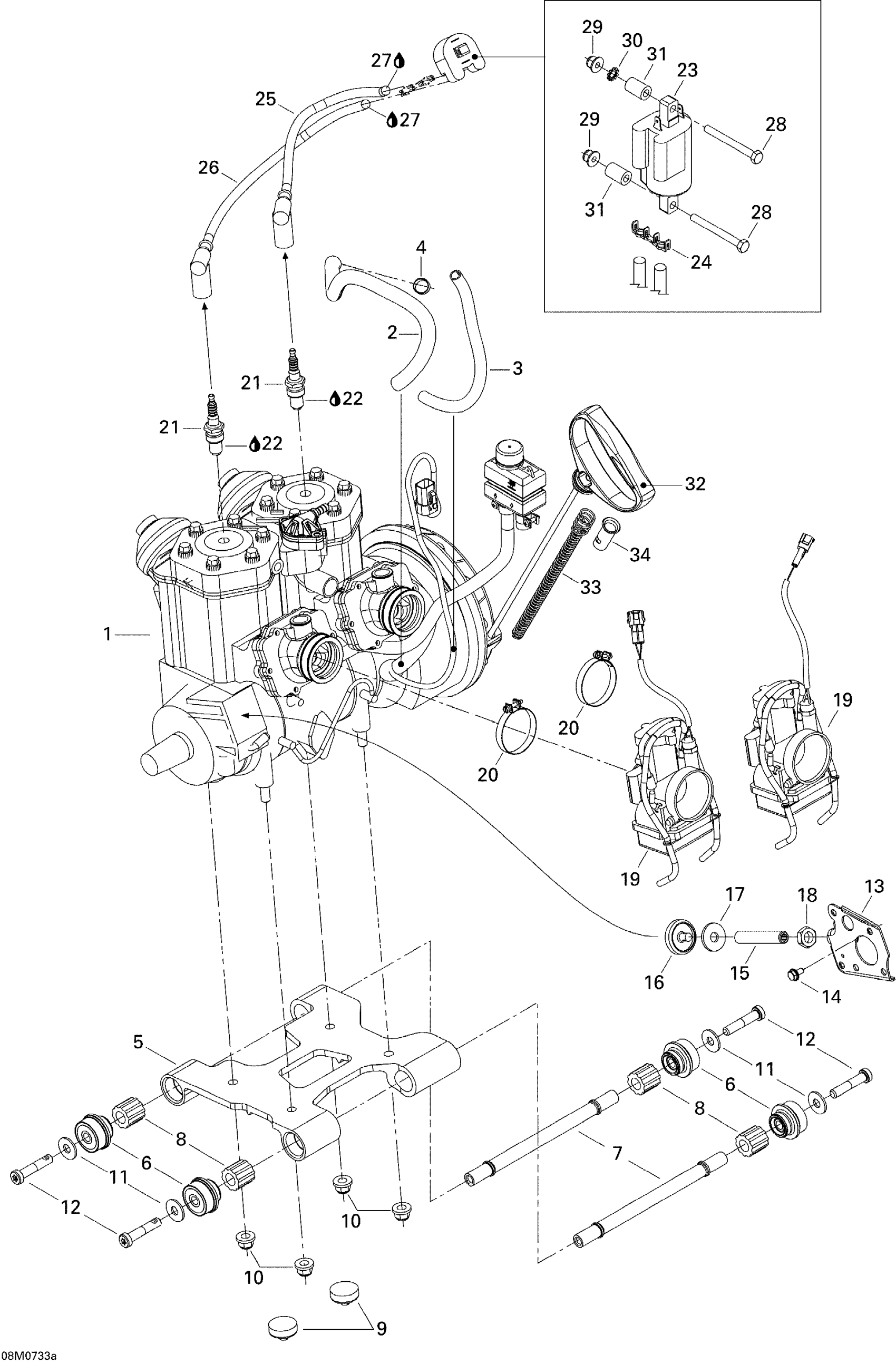

Ski-Doo MX Z 440X Racing, 2007 Engine 1 Diagram

#

Description
Price

1

Engine 453

400409438

Unavailable

1

Engine 453 | Europe

400409439

Unavailable

2

Was 409901800 Tubing (13 mm)

219704400

$9.40

3

Tubing 10 MM 1000MM Long

219704407

$2.20

4

Tape

293740005

Unavailable

5

ENGINE SUPPORT - Call your local BRP dealership

512060051

Unavailable

6

RUBBER MOUNT - Call your local BRP dealership

512059777

Unavailable

7

THREADED ROD - Call your local BRP dealership

512059776

Unavailable

8

Rubber Damper

512059781

Unavailable

9

Stopper

512059738

$22.28

10

Hex. Flange Elastic Nut M10

233201414

$1.26

11

Flat Washer M10 | 4X4

250200014

$1.17

12

TORX SCREW M10 X 50 - Call your local BRP dealership

250000252

Unavailable

13

PLATE - Call your local BRP dealership

512059840

Unavailable

14

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

15

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

16

STOPPER - Call your local BRP dealership

512059741

Unavailable

17

WASHER - Call your local BRP dealership

512059775

Unavailable

18

Hex. Jam Nut M14

232170411

$1.25

19

CARBURATOR TMX34-34 - Call your local BRP dealership

403138795

Unavailable

19

Carburator TMX34-38 | Europe

403138799

Unavailable

20

Gemi Clamp | Not Shown

512059834

$10.52

21

Spark Plug NGK BR9ECS-5

512059552

$9.70

22

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

23

Ignition Coil

512059968

$49.97

24

Plastic Clip, Spark Plug Wire

410914600

$4.62

25

CABLE ASSY, 300 MM - Call your local BRP dealership

512059695

Unavailable

26

Cable Ass’y, 375 mm

512059696

$82.99

27

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

28

Hex. Screw M6 X 60

207066044

$0.56

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

30

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

31

Spacer

517203200

$15.35

32

Starter Grip

572084400

$14.54

33

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

34

TUBE - Call your local BRP dealership

512059536

Unavailable
