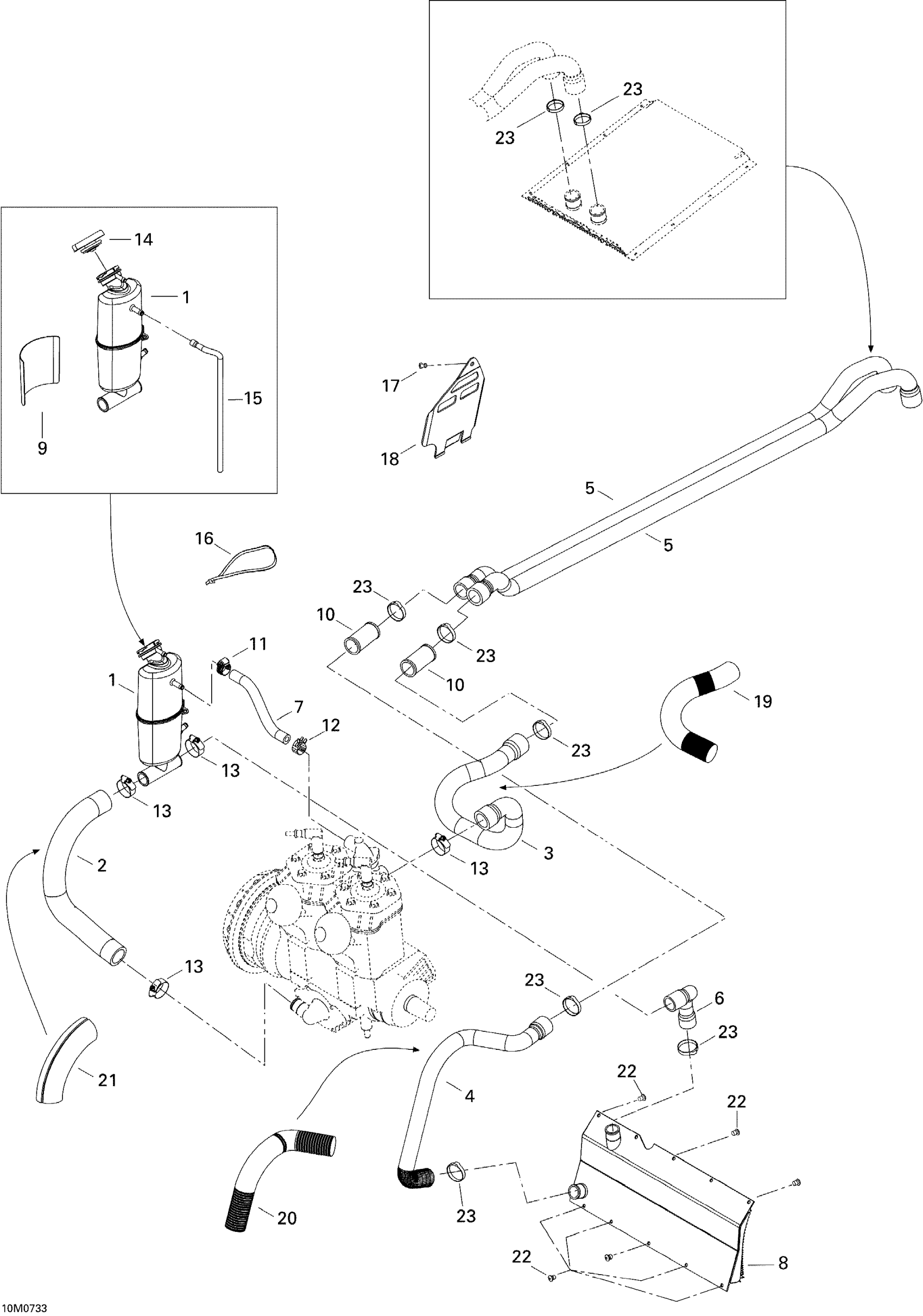

Ski-Doo MX Z 440X Racing, 2007 Cooling System Diagram

#

Description
Price

1

COOLANT TANK - Call your local BRP dealership

509000410

Unavailable

2

ENGINE INLET HOSE - Call your local BRP dealership | Grand Touring 500.

509000135

Unavailable

3

FRONT ENGINE HOSE OUTLET - Call your local BRP dealership

509000220

Unavailable

4

FRONT RADIATOR HOSE INLET - Call your local BRP dealership

509000222

Unavailable

5

REAR RADIATOR HOSE INLET - Call your local BRP dealership

509000223

Unavailable

6

RADIATOR OUTLET HOSE - Call your local BRP dealership

509000266

Unavailable

7

Hose 8 mm

509000093

Unavailable

8

Front Radiator

509000391

Unavailable

9

REFECTIVE SHEET - Call your local BRP dealership

509000190

Unavailable

10

Fitting

509000224

$14.54

11

Tridon Gear Clamp

293650170

$1.74

12

Spring Clamp

414655700

$0.68

13

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

14

Pressure Cap

509000187

$27.66

15

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$117.66

16

Tie Wrap 368 mm

293750008

$0.85

17

Avex Rivet

390909200

$0.29

18

DEFLECTOR - Call your local BRP dealership

509000257

Unavailable

19

Tubing 25 MM 1000MM Long

219704402

$12.69

20

Tubing 25 MM 1000MM Long

219704402

$12.69

21

Tubing 35 MM 1000MM Long

219704428

$8.57

22

Avex Rivet

390909100

$0.29

23

Oetiker Gear Clamp 36.1MM

509000045

$3.55
