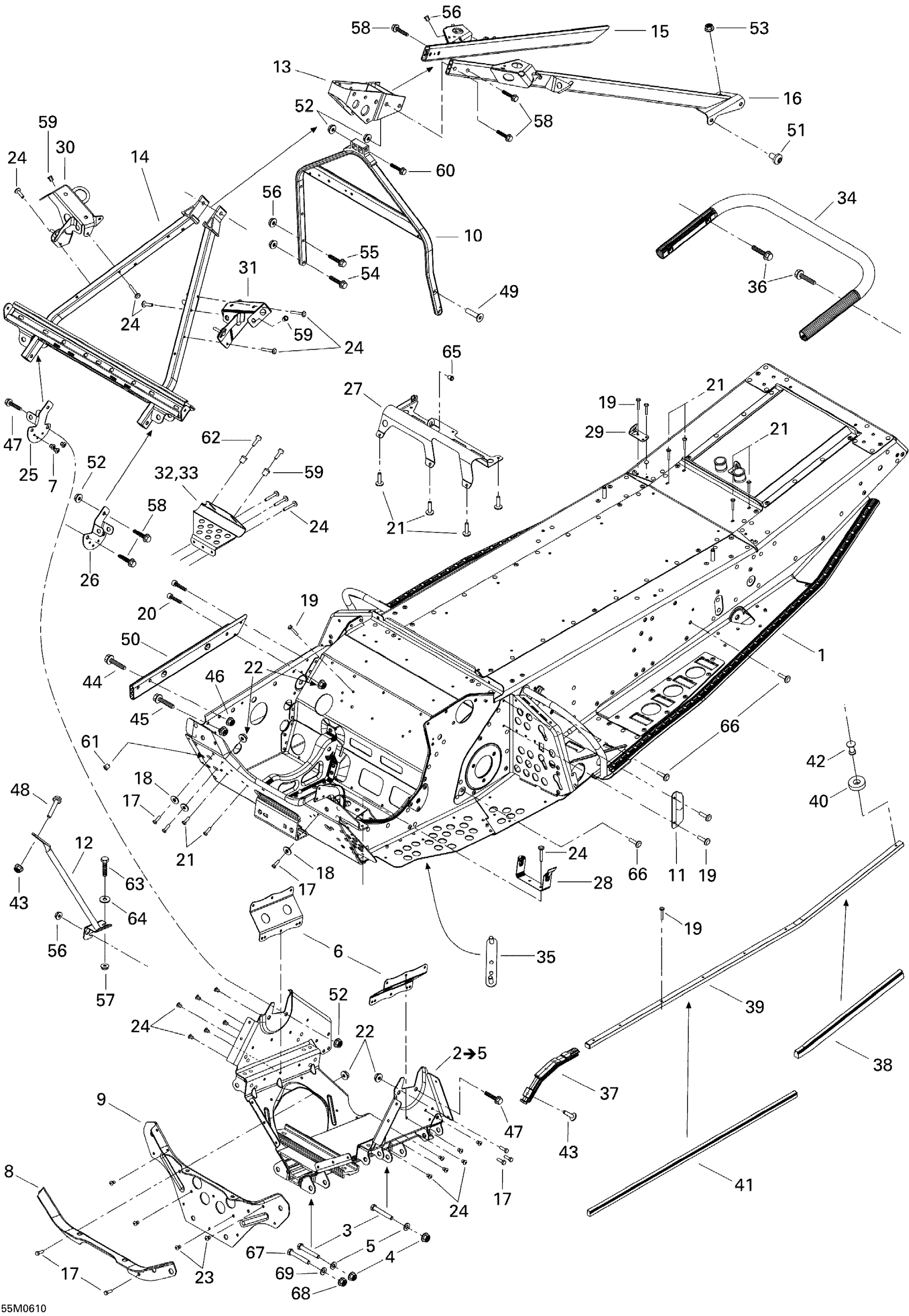

Ski-Doo MX Z 440 Racing, 2006 Frame and Components Diagram

#

Description
Price

1

Frame | Includes 1 to 41

415129150

Unavailable

2

Cross Member | Includes 2 to 5

518325025

Unavailable

3

Hex. Screw M8 X 55

207085544

$1.62

4

Hex. Flange Elastic Nut M8

233281414

Unavailable

5

Flat Washer 8 mm

234081410

Unavailable

6

CORNER REINFORCEMENT - Call your local BRP dealership

518324181

Unavailable

7

Pop Rivet 3/16"

390402200

$0.26

8

Plate Reinforcement

518324107

Unavailable

9

Front Plate

518324726

Unavailable

10

HANDLE SUPPORT - Call your local BRP dealership

518324505

Unavailable

11

CABLE PROTECTOR - Call your local BRP dealership

518317504

$4.77

12

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

13

BRACKET BLOCK - Call your local BRP dealership

518323854

Unavailable

14

UPPER CROSS MEMBER - Call your local BRP dealership

518324574

Unavailable

15

RH MEMBER - Call your local BRP dealership

518324182

Unavailable

16

LH Member

518324183

Unavailable

17

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

18

Flat Washer M5

234051410

Unavailable

19

Pop Rivet 3/16"

390402200

$0.26

20

Socket Screw M5 X 16

205051644

$2.18

21

Pop Rivet 3/16"

390402400

Unavailable

22

Hex. Flange Elastic Nut M5

233251414

Unavailable

23

Avex Rivet

390909100

$0.29

24

Avex Rivet

390909200

Unavailable

25

RH SHOCK BRACKET - Call your local BRP dealership

518325014

Unavailable

26

LH SHOCK BRACKET - Call your local BRP dealership

518325015

Unavailable

27

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

28

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

$11.85

29

Trunk Bracket, Black

518323274

Unavailable

30

RH Console Support

518323535

Unavailable

31

LH Console Support

518323536

Unavailable

32

RH TOE HOLD - Call your local BRP dealership

518324391

Unavailable

33

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

34

REAR BUMPER - Call your local BRP dealership

518324465

Unavailable

35

TRUNK BRACKET, BLACK - Call your local BRP dealership

518323896

Unavailable

36

Hex. Screw M8 X 20

236282084

Unavailable

37

Front Protector

518324071

Unavailable

38

Protector

518325020

Unavailable

39

FRAME PROTECTOR - Call your local BRP dealership

518325016

Unavailable

40

WASHER - Call your local BRP dealership

510004418

Unavailable

41

Protector

518325017

Unavailable

42

Pop Rivet 3/16”

390407200

$0.66

43

Pop Rivet 3/16”

390410100

Unavailable

44

Hex. Screw M6 X 30

207063044

Unavailable

45

Hex. Screw M6 X 18

207161844

Unavailable

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

47

Hex. Flange Screw M8 X 20

207682044

Unavailable

48

Hex. Flange Screw M8 X 25

207682544

$0.90

49

Socket Head Screw M6 X 20, Scotch Grip

205862044

$3.38

50

RH Tunnel Stiffener

518324096

Unavailable

51

Pan Head Torx Screw M8 X 12

250000887

$1.56

52

Hex. Flange Elastic Nut M8

233281414

Unavailable

53

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

54

Hex. Flange Screw M6 X 25

207662544

Unavailable

55

Hex. Flange Screw M6 X 35

207663544

$0.74

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

57

Elastic Stop Nut M6

232561414

Unavailable

58

Hex. Flange Screw M8 X 35

207683544

$1.39

59

Insert

293450275

Unavailable

60

Hex. Flange Screw M8 X 70

207687044

Unavailable

61

Insert

293450166

Unavailable

62

Hex. Flange Screw M6 X 20

207662044

Unavailable

63

Hex. Screw M6 X 14

207161444

$0.48

64

Flat Washer

224061121

$0.44

65

Threaded Insert M6 X 1.0

250100242

Unavailable

66

Panel Fastener

518321954

Unavailable

67

Hex. Screw M8 X 55

207085544

$1.62

68

Hex. Flange Elastic Nut M8

233281414

Unavailable

69

Flat Washer 8 mm

234081410

Unavailable
