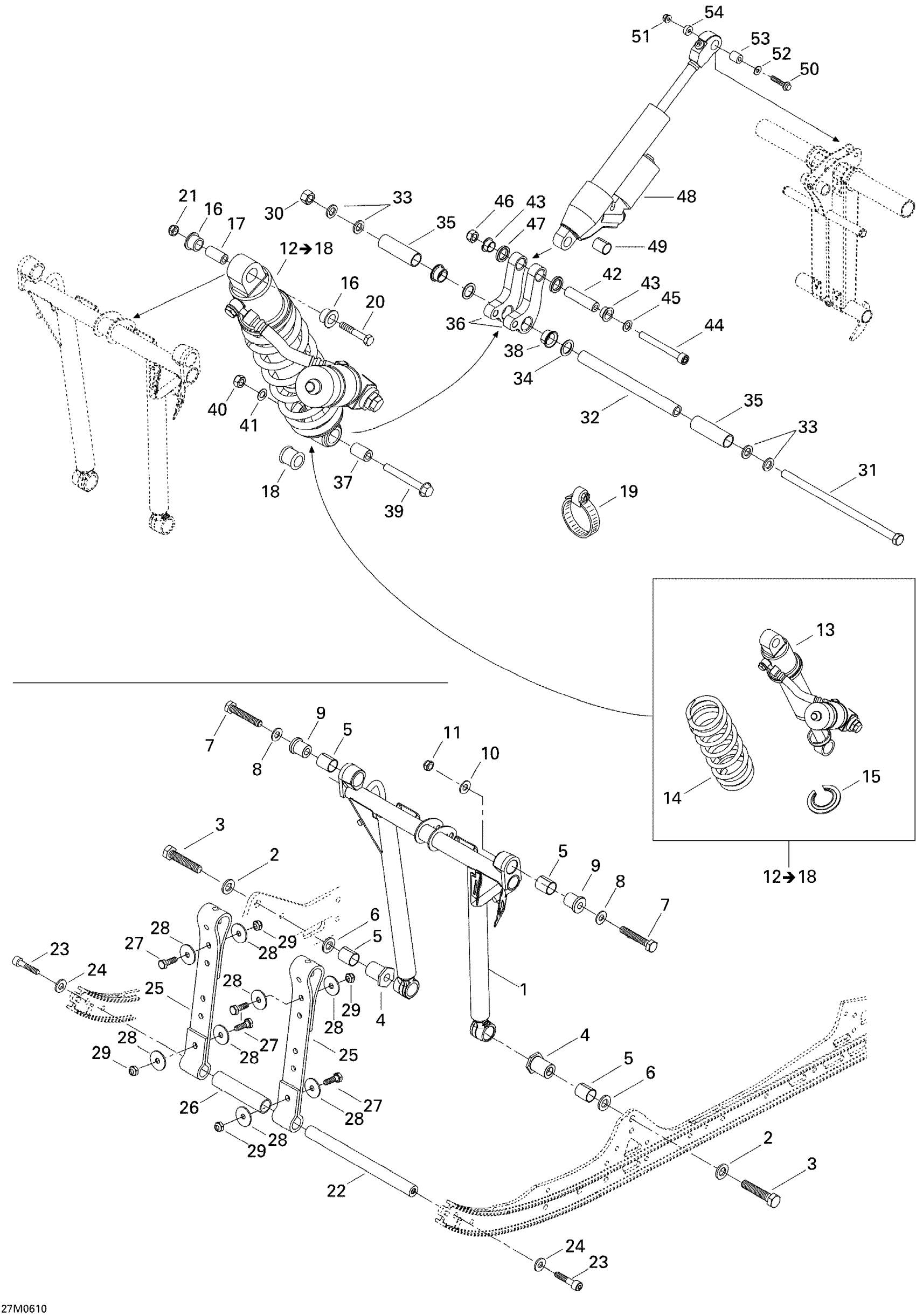

Ski-Doo MX Z 440 Racing, 2006 Front Arm Diagram
#
1
Front Arm
503191193
Unavailable
2
Washer | 7415/7416. 7417/7418.
503189148
Unavailable
4
Lower Axle
503191966
Unavailable
5
Bushing
503190974
Unavailable
6
Washer
503190656
Unavailable
7
HEX. SCREW M10 X 60 - Call your local BRP dealership
207006044
Unavailable
9
Axle
503190698
Unavailable
12
Not Available As Spare Part - Friction Washer
Unavailable
13
Center Shock
503190582
Unavailable
14
Spring
503191019
Unavailable
15
Spring Stopper
503190271
Unavailable
16
Urethane Bushing
503189117
Unavailable
17
Bushing | Includes 240d to 240d1
503189282
Unavailable
18
Bushing
503189271
Unavailable
19
Tridon Clamp
293650035
Unavailable
20
Hex. Screw M10 X 1.5 X 50
207005044
Unavailable
22
AXLE - Call your local BRP dealership
503189562
Unavailable
24
Washer
503189564
Unavailable
25
STOPPER STRAP - Call your local BRP dealership
503190782
Unavailable
29
Hex. Flange Elastic Nut M8
233281414
Unavailable
30
Hex. Nut M12
232021416
Unavailable
31
HEX. SCREW M12 X 252 - Call your local BRP dealership
250000229
Unavailable
32
PIVOT SHAFT - Call your local BRP dealership
503191047
Unavailable
33
Washer | 7415/7416. 7417/7418.
503189148
Unavailable
34
WASHER - Call your local BRP dealership
503190697
Unavailable
35
SPACER - Call your local BRP dealership
503190600
Unavailable
36
ROCKER ARM - Call your local BRP dealership
503190601
Unavailable
37
Central Shock Axle
503190604
Unavailable
38
CENTRAL ROCKER AXLE CUSHION - Call your local BRP dealership
503190605
Unavailable
39
HEX. FLANGED SCREW M10 X 80 - Call your local BRP dealership
207608044
Unavailable
43
Swivel Bushing
503191555
Unavailable
47
Plastic Spacer
503190694
Unavailable
48
Rear Shock
503190581
Unavailable
49
BUSHING - Call your local BRP dealership
503190706
Unavailable
51
Hex. Elastic Flange Nut M8
233281416
Unavailable
53
Bushing
414936000
Unavailable
