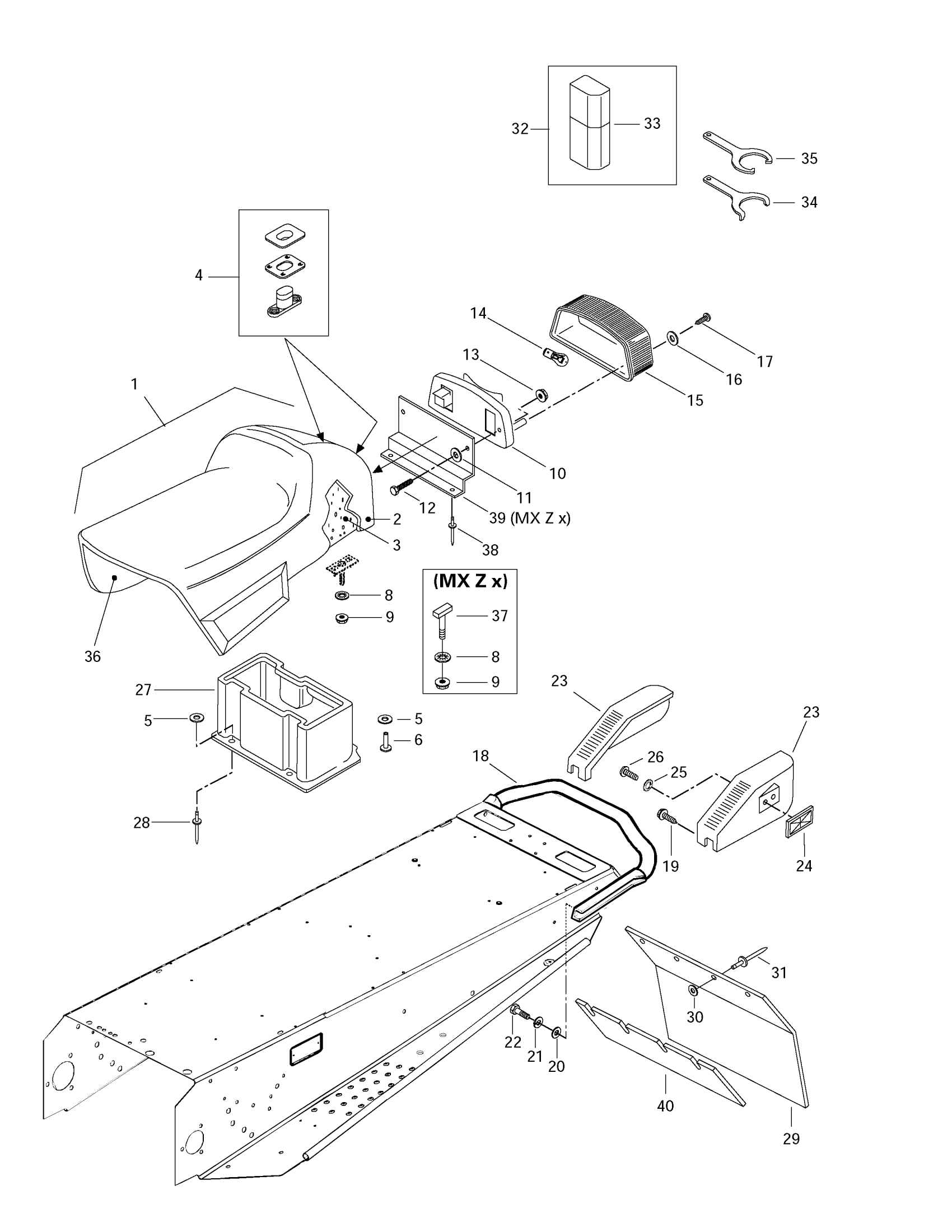

Ski-Doo MX Z 440 LC, 1997 Seat And Accessories Diagram
#
1
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
2
Seat Cover (1 pass.)
415037103
Unavailable
Seat Cover (1 pass.) | MX Z x 440 LC.
415065903
Unavailable
3
Foam Seat (1 pass.)
414891300
Unavailable
Seat Foam(1 pass.)
415065902
Unavailable
4
SEAT BUCKLE - Call your local BRP dealership
414728000
Unavailable
6
Not Available As Spare Part - Friction Washer
Unavailable
7
Not Available As Spare Part - Friction Washer
Unavailable
8
Push Nut
732610072
Unavailable
9
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
10
LIGHT HOUSING - Call your local BRP dealership
510004061
Unavailable
12
Hex. Screw M5 X 30
207053044
Unavailable
13
Hex. Flange Elastic Nut M5
233251414
Unavailable
15
Lens
414513700
Unavailable
16
Washer - Call your local BRP dealership
414516400
Unavailable
17
Phillips Tapping Screw M3.9 X 25
209632540
Unavailable
18
REAR BUMPER - Call your local BRP dealership
518314000
Unavailable
REAR BUMPER - Call your local BRP dealership
518318200
Unavailable
19
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
20
Flat Washer 8 mm
234081410
Unavailable
21
Lock Washer 8 mm
234181401
Unavailable
23
RH Moulding Ass'y | Includes 26 - 29.
580642000
Unavailable
LH Moulding Ass'y
580642100
Unavailable
24
REFLECTOR, RED - Call your local BRP dealership
414510100
Unavailable
25
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership
224151101
Unavailable
26
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208651041
Unavailable
27
Rear Trunk
572039802
Unavailable
29
Snow Guard
572030100
Unavailable
Rivet (Black) 3/16 | Formula 500 LC.
390909600
Unavailable
32
Tool Kit
529027900
Unavailable
DRIVER SCREW - Call your local BRP dealership
529019200
Unavailable
Socket Wrench 10/13 mm
529014900
Unavailable
Socket Wrench 21/26 mm
529014800
Unavailable
FORK WRENCH - Call your local BRP dealership
529017300
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
MULTI-WRENCH - Call your local BRP dealership
529014700
Unavailable
Was 412500100 Rope-Starter
219704403
Unavailable
Starter Grip
529000060
Unavailable
Spacing Tool
529035501
Unavailable
FORK WRENCH 15/17 MM - Call your local BRP dealership
529000003
Unavailable
33
TOOLS BOX - Call your local BRP dealership
708200043
Unavailable
34
Adjuster Wrench (Rear Suspension)
529025500
Unavailable
35
Adjuster Wrench (Rear Suspension)
529024000
Unavailable
36
Seat Base | Summit X670.
572094100
Unavailable
37
«T» Bolt
732601221
Unavailable
38
Pop Rivet 3/16"
390906800
Unavailable
39
Support | MX Z x 440 LC.
415065200
Unavailable
40
Reinforcement | Formula Z. Formula 583.
572097000
Unavailable
