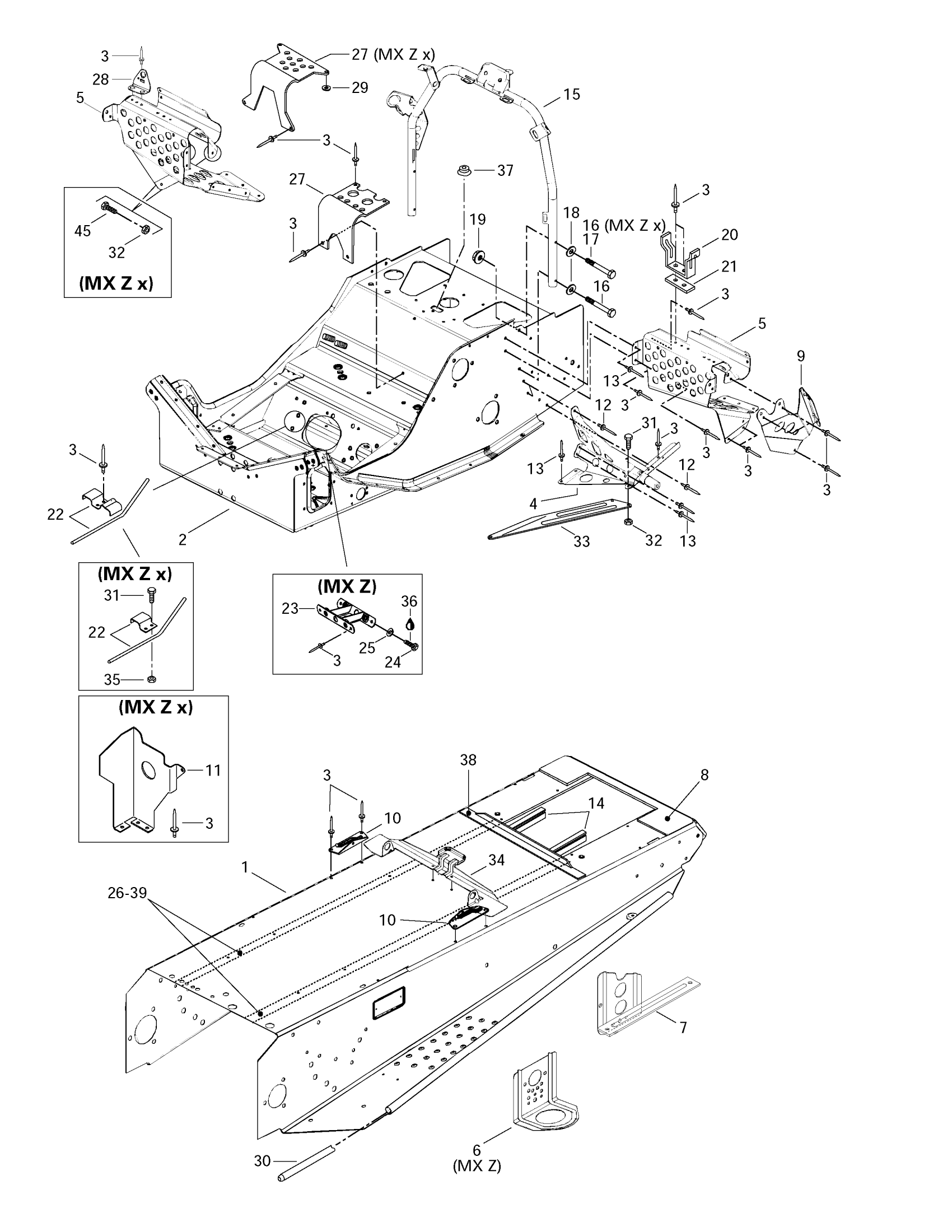

Ski-Doo MX Z 440 LC, 1997 Frame And Accessories Diagram
#
1
Frame Ass'y | Includes 1 - 2. MX Z 440 LC.
518316447
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
1
Tunnel | Formula 500. Formula Z. Formula 583.
518316848
Unavailable
Tunnel | MX Z x 440 LC.
518316855
Unavailable
2
Not Available As Spare Part - Friction Washer
Unavailable
Front Member | MX Z x 440 LC.
518318040
Unavailable
RH Support | MX Z 440 LC.
518316770
Unavailable
RH Support
518316703
Unavailable
5
RH Front Footrest
518313804
Unavailable
LH Front Footrest
518313805
Unavailable
RH Upper Front Footrest | MX Z x 440 LC.
518318117
Unavailable
RH Lower Front Footrest
518318119
Unavailable
LH Upper Front Footrest | MX Z x 440 LC.
518318118
Unavailable
LH Lower Front Footrest
518318120
Unavailable
6
Front Bracket
518312910
Unavailable
7
LH Rear Bracket | Formula Z.
518316749
Unavailable
RH Rear Bracket | Formula Z.
518316750
Unavailable
LH Rear Bracket
518316723
Unavailable
RH Rear Bracket
518316724
Unavailable
8
Cap-End
518310211
Unavailable
Cap-End
518318102
Unavailable
9
Upper Plate L.H
518308727
Unavailable
Upper Plate R.H
518308728
Unavailable
Upper Plate L.H
518318121
Unavailable
Upper Plate R.H
518318122
Unavailable
10
RH Tank Bracket
518304747
Unavailable
LH Tank Bracket
518304748
Unavailable
11
Support | MX Z x 440 LC.
518318115
Unavailable
12
Avex Rivet
390909200
Unavailable
14
Radiator Protector
415067300
Unavailable
15
Handle Steering Support
518309200
Unavailable
Handle Steering Support
518318400
Unavailable
18
Flat Washer 6 mm
234061410
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Rope Guide | MX Z 500.
518315100
Unavailable
Guide Rope
517293500
Unavailable
23
Reinf. Plate
518304741
Unavailable
25
Lock Washer 8 mm
234181401
Unavailable
26
Protector
415068500
Unavailable
27
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
Air Silencer Support | MX Z x 440 LC.
518318106
Unavailable
28
Valve Bracket | MX Z 670 HO.
518310206
Unavailable
29
Washer
517124300
Unavailable
30
FOOTREST REINFORCEMENT - Call your local BRP dealership
518304746
Unavailable
Reinforcement
518318109
Unavailable
31
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
32
Hex. Flange Elastic Nut M5
233251414
Unavailable
33
RH Reinf. Plate
518316772
Unavailable
LH Reinf. Plate
518316773
Unavailable
RH Reinforcement Plate
518316709
Unavailable
LH Reinforcement. Plate
518316710
Unavailable
34
Not Available As Spare Part - Friction Washer
Unavailable
Seat Bracket
518310208
Unavailable
35
Elastic Stop Nut M5
232551414
Unavailable
36
Loctite 271, 10 ml
293800005
Unavailable
38
Frame Member
518318116
Unavailable
39
Frame Protector
518318112
Unavailable
