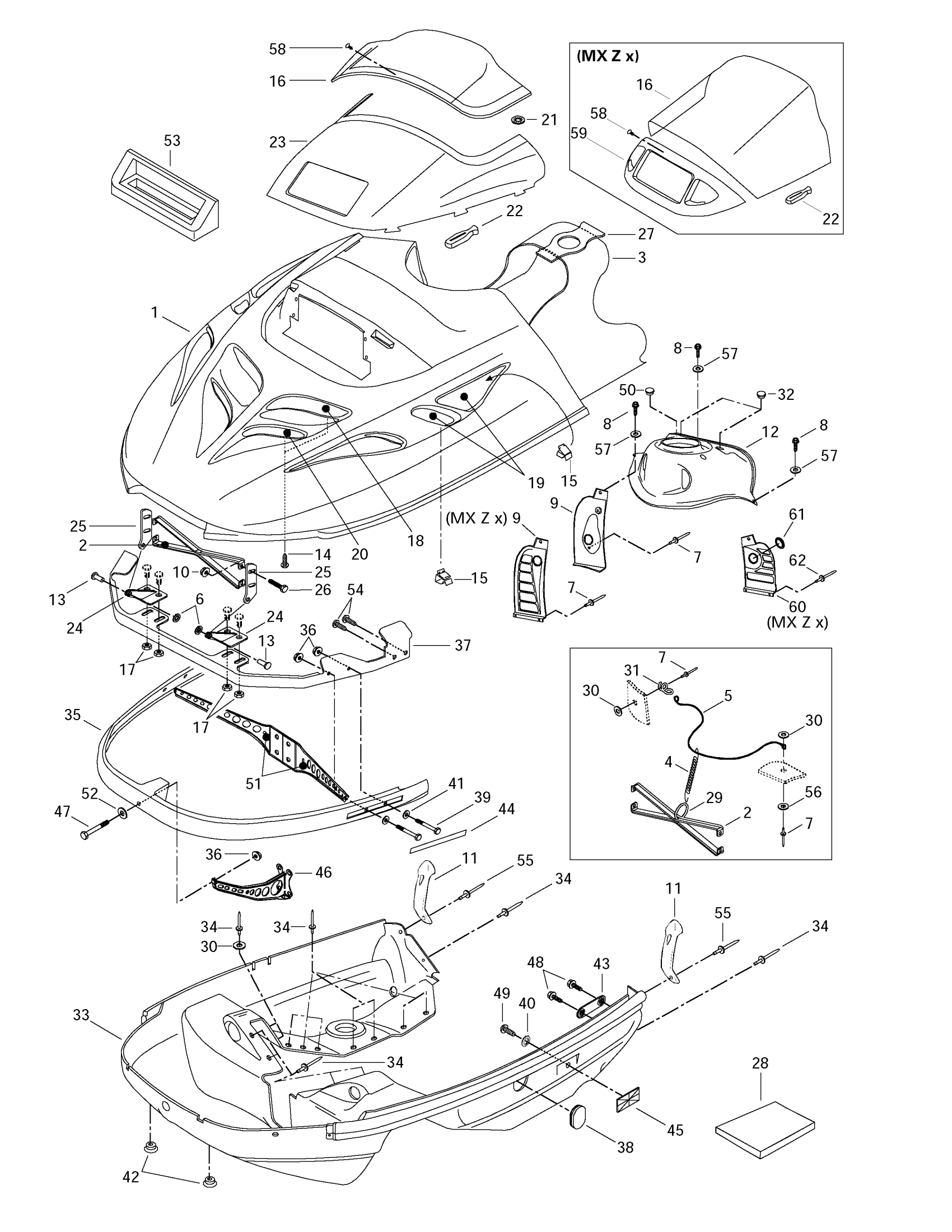

Ski-Doo MX Z 440 LC, 1997 Cab, Console Diagram

#

Description
Price

1

Cab (Yellow) | MX Z 583. MX Z 670.

572077138

Unavailable

Cab (Yellow) | MX Z x 440 LC.

572077146

Unavailable

2

Hood Reinforcement

517278100

Unavailable

Hood Reinfocer

517291600

Unavailable

3

Rear Tank Cover

415089300

Unavailable

4

Spring

415043300

Unavailable

5

Cab Retainer Cable

414212300

Unavailable

6

Push Nut

389804300

$0.43

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

8

Forming Screw M5 x 16

250000676

$0.83

9

Handle Dash | MX Z 380 F.

572052101

Unavailable

Dash R.H

572094700

Unavailable

10

Hex. Flange Elastic Nut M5

233251414

Unavailable

11

Hood Latch

570027100

Unavailable

12

Dash-Switch

572052702

Unavailable

Dash-Switch

572052703

Unavailable

13

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

14

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

15

Clip

414227300

$1.45

16

WINDSHIELD LOW - Call your local BRP dealership

414795900

Unavailable

Low Windshield

415057700

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

RH Upper Grill | Formula S.

517277000

Unavailable

LH Upper Grill | Formula Deluxe 380.

517277100

Unavailable

19

Side Grill (Black)

517280200

Unavailable

20

RH Front Grill | Formula S.

517265800

Unavailable

LH Front Grill | Formula Deluxe 380.

517265900

Unavailable

21

Black, Dart

414644300

$0.78

22

Windshield Latch

570023800

Unavailable

23

Windsheild Support

572084600

Unavailable

24

Welded Lower Hinge

517289900

Unavailable

25

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

26

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

27

Front Tank Cover

415089200

Unavailable

28

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

29

RING - Call your local BRP dealership

415058300

Unavailable

30

Washer

517124300

Unavailable

31

Bracket

517262800

Unavailable

32

Cap | MX Z 670 HO.

572096200

Unavailable

33

Bottom Pan (Yellow) | MX Z 440 LC.

572076202

Unavailable

Bottom Pan (Yellow) | MX Z x 440 LC.

572076206

Unavailable

34

Pop Rivet 3/16"

390906800

Unavailable

35

Front Bumper

517265400

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

37

Hinge Bracket

517285800

Unavailable

Hinge Bracket

517291500

Unavailable

38

Pan Bottom Cap (Yellow)

570053700

Unavailable

39

Hex. Screw M6 X 30

207063044

Unavailable

40

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

41

Flat Washer

224061121

$0.44

42

CAP - Call your local BRP dealership

572072100

Unavailable

43

Side Bracket

517267100

Unavailable

44

Yellow, LH/RH Rear Reflector Kit

861805523

$25.35

45

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

46

Front Weld Support

517281100

Unavailable

47

Hex. Screw M6 X 40

207064044

$1.48

48

Hex. Flange Screw M6 X 16

210261650

$1.22

49

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

50

Cap

572051500

$5.38

51

LH Support

517287400

Unavailable

RHSupport

517287500

Unavailable

52

Flat Washer

224061201

Unavailable

53

Sealing Foam

415077300

Unavailable

54

Not Available As Spare Part - Friction Washer

Unavailable

55

Pop Rivet 3/16"

390906800

Unavailable

56

Not Available As Spare Part - Friction Washer

Unavailable

57

Washer | DS 650 X

391301600

Unavailable

58

Christmas Tree Anchorage

293730113

Unavailable

Black, Dart

414644300

$0.78

59

Lamp Moulding

572079200

Unavailable

60

Dash L.H | MX Z x 440 LC.

572094800

Unavailable

61

Cap | MX Z x 440 LC.

572102600

Unavailable

62

Pop Rivet 3/16"

390406500

Unavailable
