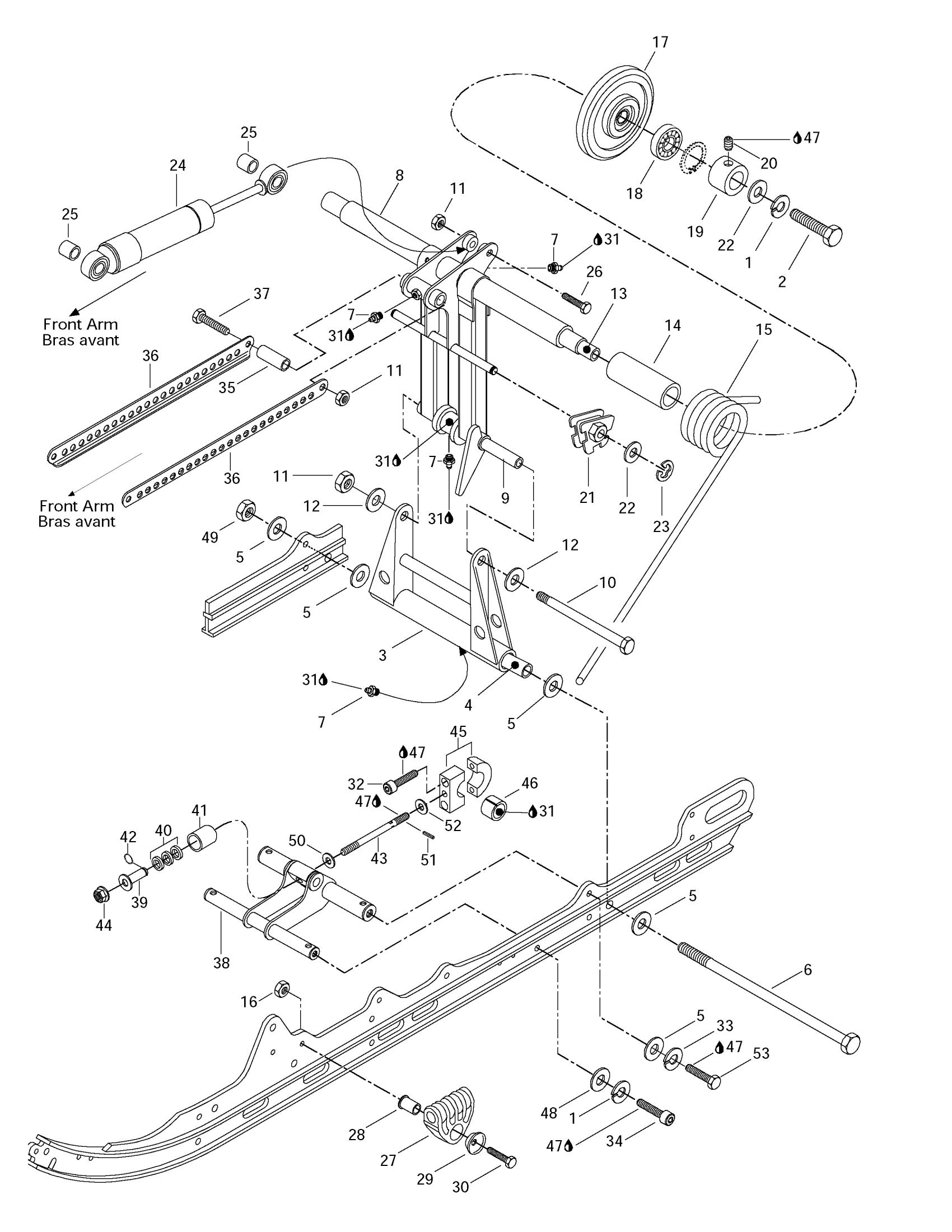

Ski-Doo MX Z 440 LC, 1997 Rear Arm, Rear Suspension Diagram
#
1
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
2
Hex. Screw M10 X 35
207103544
Unavailable
4
Lower Axle Pivot
503154703
Unavailable
5
FLAT WASHER - Call your local BRP dealership
224081201
Unavailable
6
Bolt M8 X 248mm
503192440
Unavailable
7
Grease Fitting
408200700
Unavailable
8
Welded Rear Arm | Formula Z 583. Formula 583 Deluxe.
503172800
Unavailable
9
Upper Axle, Pivot Arm
503144300
Unavailable
10
Bolt M8, Short
732601197
Unavailable
11
Hex. Elastic Stop Nut M8
232581414
Unavailable
12
Flat Washer 8 mm
234081410
Unavailable
13
Rear Cross Shaft
503168700
Unavailable
Upper Axle
503151700
Unavailable
LH SPRING - Call your local BRP dealership
414943600
Unavailable
RH Spring | MX Z x 440 LC.
415069300
Unavailable
LH Spring | MX Z x 440 LC.
415069400
Unavailable
16
Elastic Stop Nut M6
232561414
Unavailable
17
Idler Wheel | Includes 17 - 18.
572091400
Unavailable
18
Ball Bearing
293350115
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
LH ADJUST CAM - Call your local BRP dealership
572030800
Unavailable
RH ADJUST CAM - Call your local BRP dealership
572030900
Unavailable
22
Flat Washer 10 mm
234001410
Unavailable
23
e Circlip
371907100
Unavailable
24
Take Apart Shock | . (Rear Suspension - Rear Shock)
414954000
Unavailable
Shock | MX Z x 440 LC.
415055700
Unavailable
25
Bushing
414936000
Unavailable
26
Hex. Screw M8 X 50
207085044
Unavailable
27
Spring Support
503189657
Unavailable
28
SPRING AXLE GUIDE - Call your local BRP dealership | Formula 500. Formula 500 Deluxe.
503152700
Unavailable
29
Retainer Washer | Formula 500. Formula 500 Deluxe.
517041700
Unavailable
30
Hex. Screw M6 X 45
207064544
Unavailable
31
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
32
Socket Head Screw M8 X 30
205083044
Unavailable
33
Lock Washer 8 mm
234181401
Unavailable
34
Socket Screw M10 X 35
205003544
Unavailable
35
Tie Rod Shaft
503158600
Unavailable
36
Tie Rod | Formula Z 583. Formula 583 Deluxe.
503158700
Unavailable
37
HEX. SCREW M8 X 75 - Call your local BRP dealership
207087544
Unavailable
38
Bracket Weld | Formula Z.
503171900
Unavailable
Bracket Weld | MX Z x 440 LC.
503174300
Unavailable
39
Bushing
503172900
Unavailable
40
RUBBER STOPPER - Call your local BRP dealership
570049600
Unavailable
41
Cup
503103600
Unavailable
42
Circlip
371910700
Unavailable
43
Threaded Rod | Formula Z 583.
503169100
Unavailable
45
Pivot Block Ass'y | Includes 45 - 48. Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.
580653800
Unavailable
47
Loctite 271, 10 ml
293800005
Unavailable
48
Flat Washer 10 mm
234001410
Unavailable
49
Hex. Flange Elastic Nut M8
233281414
Unavailable
50
Washer
503172700
Unavailable
51
Rolled Pin M3 x 18
732804011
Unavailable
52
Not Available As Spare Part - Friction Washer
Unavailable
53
Hex. Screw M8 x 30 | Formula Z.
222083066
Unavailable
