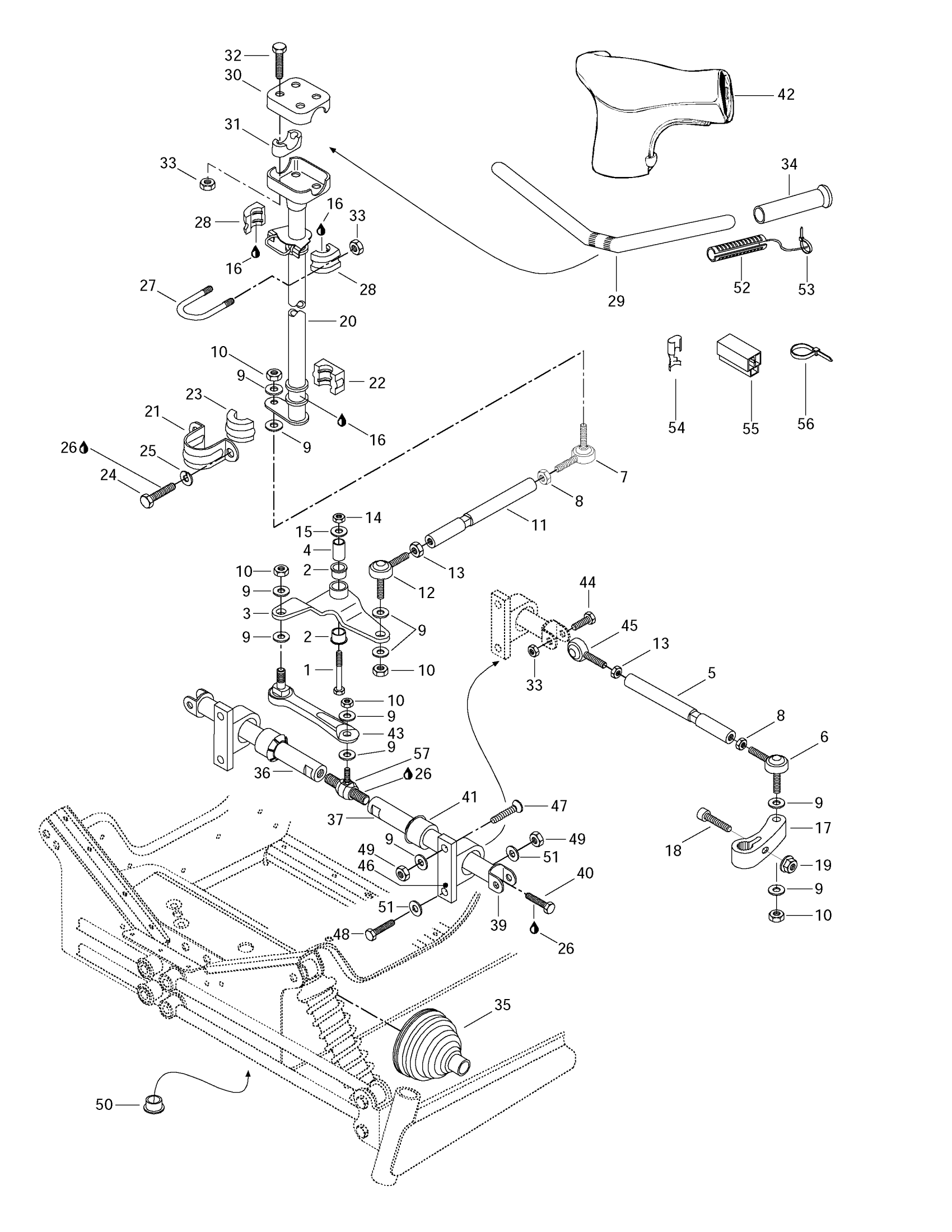

Ski-Doo MX Z 440 LC, 1997 Steering System (MX Z X 440 LC) Diagram
#
1
Screw M12 x 85
222028565
Unavailable
3
Pivot Arm | MX Z x 440 LC.
506139800
Unavailable
4
Pivot
415038000
Unavailable
5
Tie-Rod
506140400
Unavailable
6
Ball Joint
506151491
Unavailable
7
RH BALL JOINT - Call your local BRP dealership
506151492
Unavailable
8
RH Threaded Hex. Jam Nut M10
732610010
Unavailable
10
Elastic Flange Nut M10
232501416
Unavailable
11
Tie-Rod | MX Z x 440 LC.
506140900
Unavailable
12
LH JOINT BALL - Call your local BRP dealership
506151845
Unavailable
13
LH Threaded Hex. Jam Nut M10
250100016
Unavailable
14
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
15
FLAT WASHER - Call your local BRP dealership
506136400
Unavailable
16
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
17
RH Steering Arm | MX Z x 440 LC.
506140500
Unavailable
LH Steering Arm | MX Z x 440 LC.
506140600
Unavailable
18
Allen Screw M8 x 35
222983565
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
Main Tube | MX Z x 440 LC.
506140700
Unavailable
21
Retainer Support
517126200
Unavailable
22
Bushing
572064400
Unavailable
23
BUSHING - Call your local BRP dealership
572064500
Unavailable
25
Lock Washer 8 mm
234181401
Unavailable
26
Loctite 271, 10 ml
293800005
Unavailable
27
U-clamp | X
506060600
Unavailable
28
HALF-BUSHING - Call your local BRP dealership
572067100
Unavailable
29
Bar Handle | MX Z x 440 LC.
506140800
Unavailable
30
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
31
Steering Support
709400919
Unavailable
32
Hex. Screw M8 X 50
207085044
Unavailable
33
Hex. Elastic Stop Nut M8
232581414
Unavailable
35
Tie-Rod Cap | MX Z x 440 LC.
570064700
Unavailable
36
Sliding Bar (Short)
506139500
Unavailable
37
Sliding Bar (Long)
506139600
Unavailable
38
Ball Joint (Double)
415053300
Unavailable
39
Bracket
506138300
Unavailable
40
Hex. Screw M10 X 25
207102544
Unavailable
41
Cushion | MX Z x 440 LC.
572078800
Unavailable
42
Steering Padding | MX Z x 440 LC.
572093700
Unavailable
43
Ball Joint Lever
415063700
Unavailable
44
Hex. Screw M8 X 40
207084044
Unavailable
45
LH Ball Joint
415048600
Unavailable
46
Sliding Bar Guide | MX Z x 440 LC.
506139700
Unavailable
47
Socket Head Screw M10 x 70
222907065
Unavailable
48
Hex. Screw M10 x 75
207007544
Unavailable
50
Cap
415067700
Unavailable
51
Flat Washer 10 mm
234001410
Unavailable
52
Heating Grip
515175573
Unavailable
54
Female Terminal
561503100
Unavailable
55
Female Housing
409204300
Unavailable
57
Ball Joint (Double)
415053300
Unavailable
