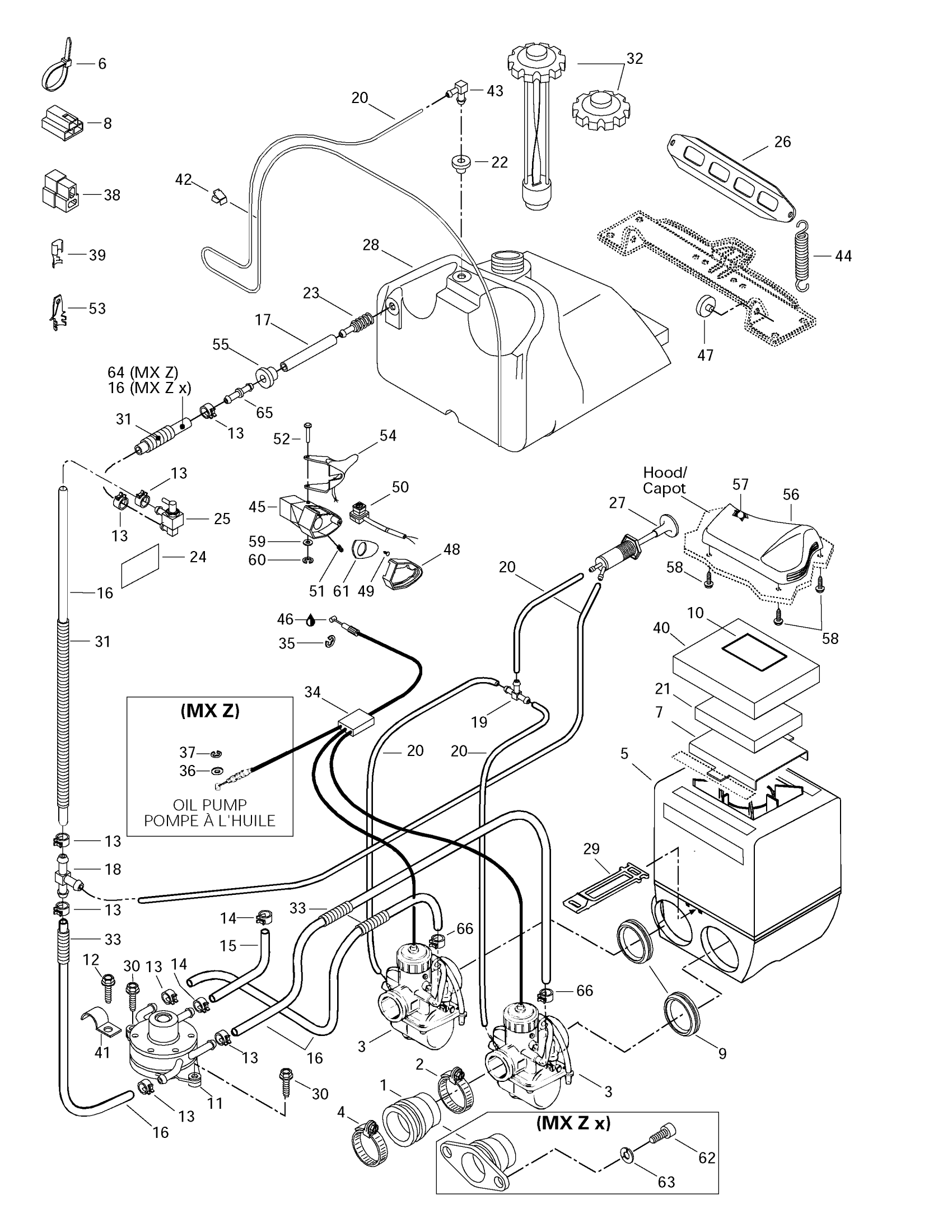

Ski-Doo MX Z 440 LC, 1997 Fuel System Diagram

#

Description
Price

1

Intake Adaptor | MX Z 440 LC.

570047700

Unavailable

Intake Adaptor | MX Z x 440 LC.

570065400

Unavailable

2

Clamp (50 mm)

415038400

Unavailable

3

VM 34-492 Carburetor (PTO | Includes 1 - 32. MX Z x 440 LC.

403130700

Unavailable

VM 34-493 Carburetor | MX Z x 440 LC.

403130800

Unavailable

VM 34-498 Carburetor (PTO | Includes 1 - 32. .

403133300

Unavailable

VM 34-499 Carburetor | .

403133400

Unavailable

4

Collar | Skandic 600.

414532800

Unavailable

5

Air Silencer Ass'y | (Incl. It 7, 9, 21, 29, 40) MX Z 440 LC.

580638602

Unavailable

Air Silencer Ass'y | (Incl. It 7, 9, 21, 29, 40) MX Z x 440 LC.

580638608

Unavailable

6

Tie-Rap 180 mm

414115200

$0.09

7

Grill Intake

517283900

Unavailable

8

Female Terminal Housing (3 circuits)

409008500

Unavailable

9

Intake Adaptor 34 mm | MX Z 440 LC.

570047600

Unavailable

Intake Adaptor 34 mm

570065100

Unavailable

10

Warning Decal

414161500

Unavailable

11

Fuel Pump

403900900

Unavailable

12

Hex. Flange Screw M6 X 16

210261650

$1.22

13

Spring Clamp

414554800

$0.83

14

Spring Clamp

414415200

$0.83

15

Hose

219704549

Unavailable

16

Polyurethane Hose 10000Mm Long

219704410

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

T-fitting

414222500

$1.33

19

T-Fitting

414222400

Unavailable

20

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

21

Air Filter

415014800

$11.49

22

Grommet

709200285

$8.38

23

Fuel Filter

414865700

$8.39

24

Security Label | MX Z 670 HO.

414931500

Unavailable

25

SHUT OFF VALVE - Call your local BRP dealership

414935900

Unavailable

26

Fuel Tank Bracket

517249200

Unavailable

27

Primer

415060500

Unavailable

28

Fuel Tank

572093100

Unavailable

Fuel Tank

572093800

Unavailable

29

LATCH - Call your local BRP dealership

570069700

Unavailable

30

Hexagonal Head Screw

210262050

$1.74

31

Tubing 10 MM 1000MM Long

219704407

Unavailable

32

Fuel Tank Cap

415074400

Unavailable

Fuel Tank Cap | MXZ X 440 LC.

415065800

Unavailable

33

Was 409901800 Tubing (13 mm)

219704400

Unavailable

34

Throttle Cable and Housing | MX Z 440 LC.

414966401

Unavailable

Throttle Cable and Housing

415067600

Unavailable

35

Circlip

414274500

Unavailable

36

Flat Washer 8 mm, Nylon

234081100

$1.00

37

Circlip

414753500

$0.59

38

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

39

Female Terminal PACKARD

561503200

Unavailable

40

Exterior Foam | Formula 500. Formula 500 Deluxe.

415012700

Unavailable

Exterior Foam | MX Z x 440 LC.

415068600

Unavailable

41

Open Clamp

414176000

$1.86

42

Clip

414227300

$1.45

43

Male Connector

414814100

$2.18

44

SPRING - Call your local BRP dealership

517182100

Unavailable

45

Throttle Housing

512060603

$10.57

46

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

47

Grommet | Europe

707800347

Unavailable

48

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

49

Screw

414473200

$3.69

50

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

51

Socket Set Screw M8 X 10

414440800

$4.00

52

Lever Pin

414438700

$11.14

53

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

54

Handle Ass'y

512060214

Unavailable

55

Grommet

570045500

Unavailable

56

INTAKE COVER - Call your local BRP dealership

572077900

Unavailable

57

Air Filter

414972600

$58.43

58

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

59

Flat Washer M5, Stainless

234051600

$0.64

60

Circlip | Model-RS

414439000

Unavailable

61

Plate

512060390

$9.31

62

Socket Head Screw M8 X 20

205082044

$1.09

63

Lock Washer 8 mm

234181401

Unavailable

64

Hose Formed | Formula 500. Formula 500 Deluxe.

415058400

Unavailable

65

Male Connector

414518500

$3.50

Elbow Male Connector

414580600

$3.50

66

Spring Clamp

414420700

Unavailable
