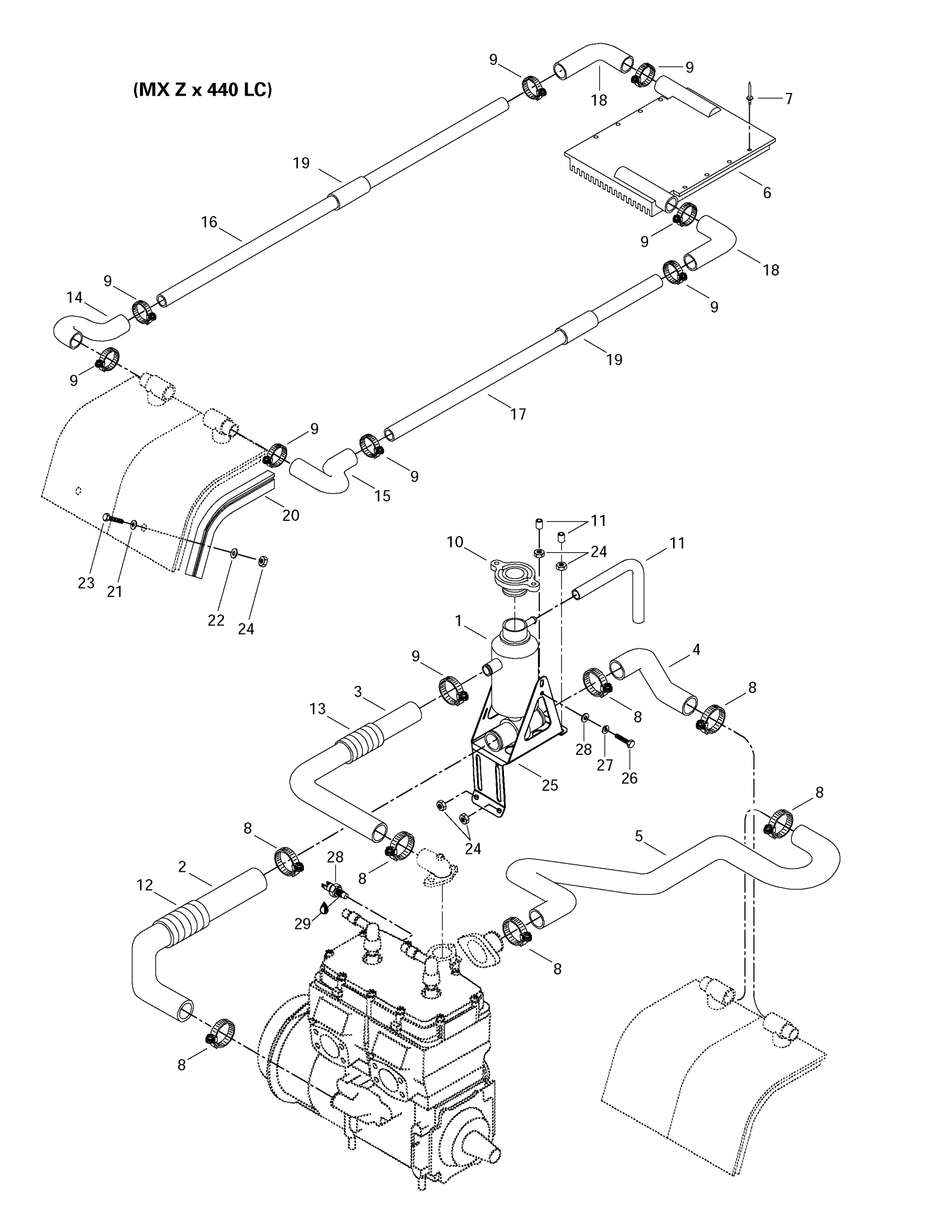

Ski-Doo MX Z 440 LC, 1997 Système De Refroidissement (MX Z X 440 LC) Diagram
#
Description
Price
1
Coolant Tank
572094400
Unavailable
2
Engine Inlet Hose | MX Z x 440 LC.
415066600
Unavailable
3
Engine Outlet Hose
415066700
Unavailable
4
Radiator Outlet Hose
415066800
Unavailable
5
Radiator Inlet Hose
415066900
Unavailable
6
Rear Radiator
517291800
Unavailable
8
TRIDON GEAR CLAMP - Call your local BRP dealership
408800400
Unavailable
9
Tridon Gear Clamp
293650173
Unavailable
10
Pressure Cap
509000187
Unavailable
11
Polyurethane Hose 10000Mm Long
219704410
Unavailable
12
Protective Shield | MX Z x 440 LC.
415068900
Unavailable
13
Protective Shield | MX Z x 440 LC.
415068900
Unavailable
14
RH Hose
415067000
Unavailable
15
LH Hose
415067100
Unavailable
16
RH Tube
517292100
Unavailable
17
LH Tube
517292101
Unavailable
18
Hose
415067200
Unavailable
19
Hose
415077400
Unavailable
20
Radiator Protector
415067300
Unavailable
22
Flat Washer 6 mm
234061410
Unavailable
23
HEX. SCREW M6 X 12 - Call your local BRP dealership
207161244
Unavailable
24
Elastic Stop Nut M6
232561414
Unavailable
25
Coolant Tank Support | MX Z x 440 LC.
517292700
Unavailable
26
HEX. SCREW M6 X 10 - Call your local BRP dealership
207161044
Unavailable
28
Temperature Sensor | Grand Touring 500.
512047000
Unavailable
29
Was 293800018 Loctite 592, 50 ml | Package T
219704455
Unavailable
