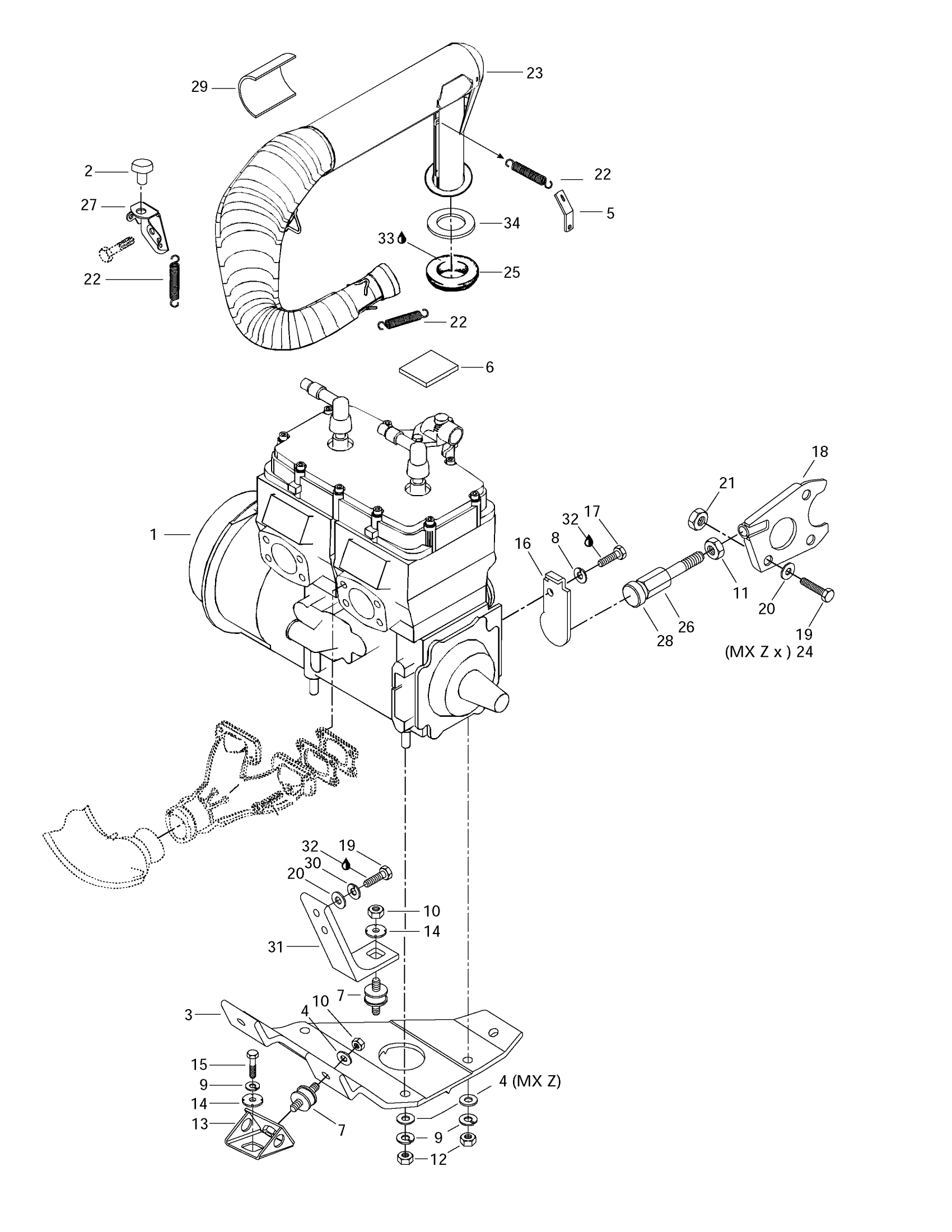

Ski-Doo MX Z 440 LC, 1997 Engine Support And Muffler Diagram
#
1
<<454>> Engine | MX Z 440 LC.
400408000
Unavailable
<<454>> Engine | MX Z x 440 LC.
400408600
Unavailable
2
Rubber Bumber
514048200
Unavailable
3
Engine Support | MX Z 500.
512054200
Unavailable
Engine Support | MX Z x 440 LC.
512057100
Unavailable
4
Flat Washer 10 mm
234001410
Unavailable
6
Reflective Sheet | MX Z 500.
415025400
Unavailable
7
RUBBER MOUNT - Call your local BRP dealership
570127700
Unavailable
RUBBER MOUNT - Call your local BRP dealership
570128700
Unavailable
9
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
234100602
Unavailable
11
Nut Hexagonal RH.
232026414
Unavailable
13
Engine Support
512050900
Unavailable
14
Lock Washer
512056700
Unavailable
15
Hex. Screw M10 X 25
207102544
Unavailable
16
Stopper Plate
512052900
Unavailable
17
Hex. Screw M6 X 16
207161644
Unavailable
18
Plate | Formula Z 583. Formula Z 670.
512055500
Unavailable
Support Plate
512057200
Unavailable
19
Hex. Screw M8 X 25
207182544
Unavailable
20
Flat Washer 8 mm
234081410
Unavailable
21
Hex. Elastic Stop Nut M8
232581414
Unavailable
23
Muffler | MX Z 440 LC.
514048700
Unavailable
Muffler | MX Z x 440 LC.
514048900
Unavailable
25
EXHAUST GROMMET - Call your local BRP dealership
570039000
Unavailable
26
Screw | Formula Deluxe 500 LC.
512052400
Unavailable
27
Muffler Support
514044100
Unavailable
Muffler Support
514049600
Unavailable
28
STOPPER - Call your local BRP dealership | Formula Deluxe 500 LC.
570045400
Unavailable
29
Reflection Sheet | MX Z 440 F. MX Z 500 F.
414746400
Unavailable
Reflection Sheet | Formula DLX 500 F.
415064900
Unavailable
30
Lock Washer 8 mm
234181401
Unavailable
31
Engine Support | MX Z 500.
512054300
Unavailable
32
Loctite 271, 10 ml
293800005
Unavailable
33
Grease, Super Lube
293550030
Unavailable
34
Aluminum Washer
514049300
Unavailable
